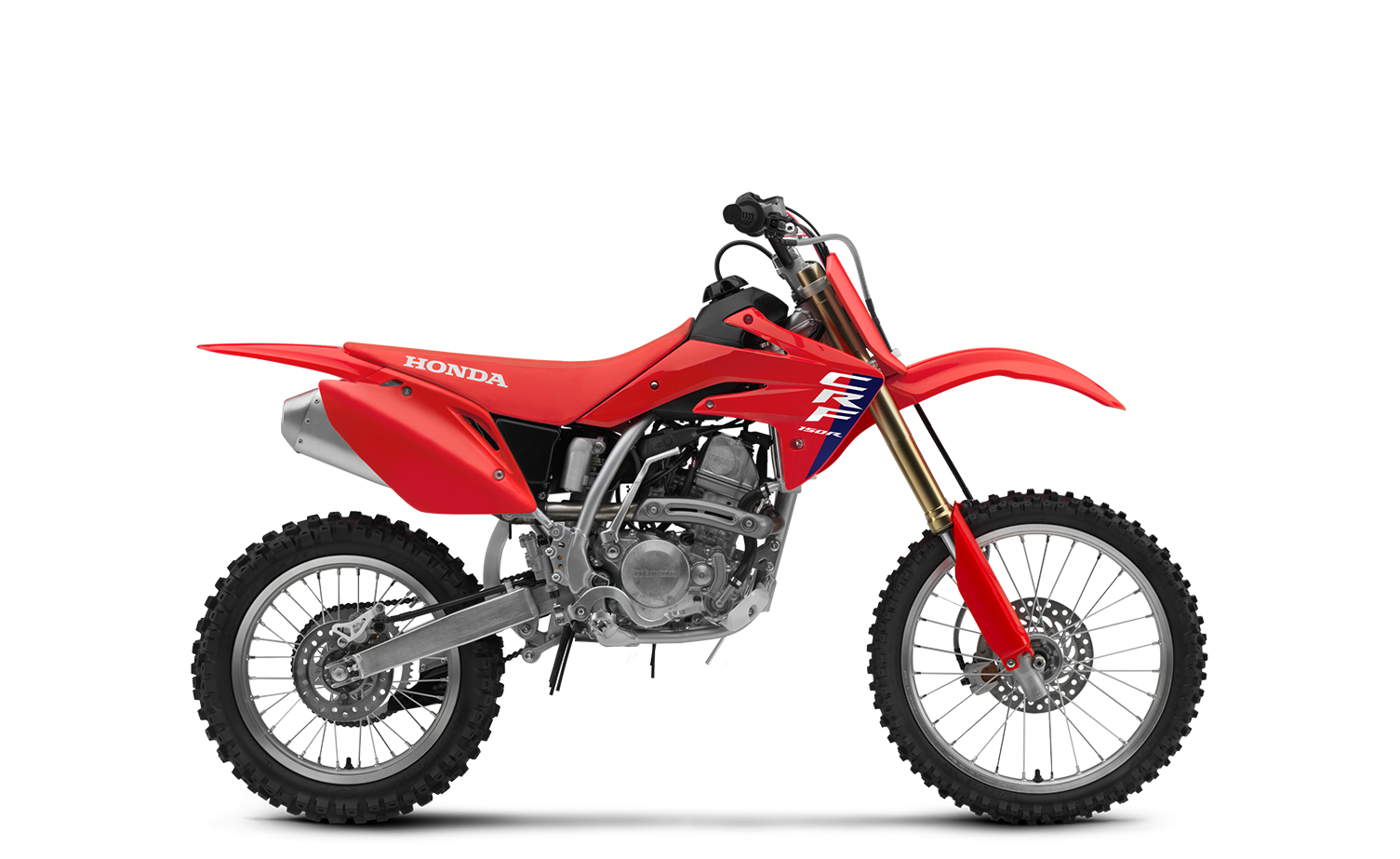

2024 CRF150R Expert
150cc liquid-cooled single cylinder
Close-ratio five-speed
37mm leading-axle inverted Showa® fork; 10.8-inch travel
Pro-Link® Showa® single shock; 10.7-inch travel
34.1 inches
187 pounds (w/all fluids and fuel)
Engine
| Engine Type | 150cc liquid-cooled single cylinder |
|---|---|
| Bore and Stroke | 66mm x 43.8mm |
| Compression Ratio | 11.7:1 |
| Valve Train | Unicam SOHC; four valves per cylinder |
| Induction | 32mm Keihin flat-slide carburetor with Throttle Position Sensor (TPS) |
Drive Train
| Transmission | Close-ratio five-speed |
|---|---|
| Final Drive | #420 chain; 15T/50T |
Chassis Suspension Brakes
| Front Suspension | 37mm leading-axle inverted Showa® fork; 10.8-inch travel |
|---|---|
| Rear Suspension | Pro-Link® Showa® single shock; 10.7-inch travel |
| Front Brake | Single 220mm disc |
| Rear Brake | Single 190mm disc |
| Front Tire | Dunlop MX51;70/100-19 |
| Rear Tire | Dunlop MX51; 90/100-16 |
Dimensions
| Rake | 27.0° |
|---|---|
| Trail | 3.8 inches |
| Wheelbase | 50.6 inches |
| Seat Height | 34.1 inches |
| Ground Clearance | 13.2 inches |
| Curb Weight | 187 pounds (w/all fluids and fuel) |
| Fuel Capacity | 1.1 gallons |
Other
| Available Colors | Red |
|---|---|
| Model ID | CRF150RB |
Crafted for podium climbers
Double your victory
Honda knows winning like no other. When you Ride Red, your podium chances soar. And with the Honda Red Riders Reward Program, you win twice—on the track and at the bank. From Supercross to side-by-sides, we offer opportunities to cash in for them all. Join us, bring your A-game, and let's dominate the winner's circle together.
Where domination begins
Unicam® engine
The Unicam® engine is based on the championship-winning CRF450R. It is designed to provide excellent rideability and increased power and torque throughout the rev range.

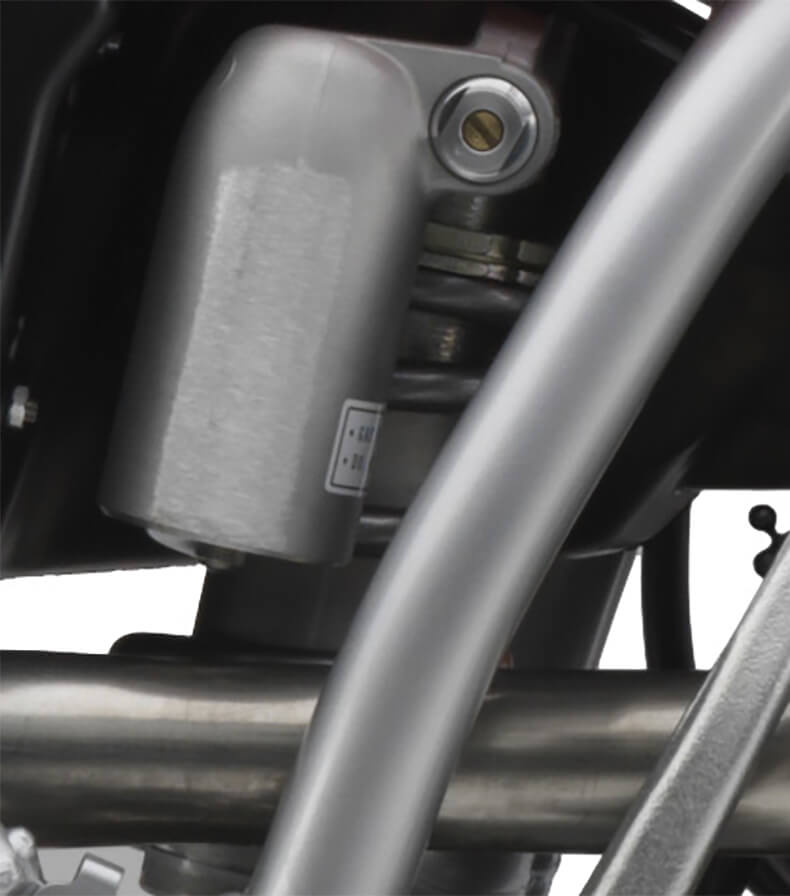

Accelerator pump
A “direct push” accelerator pump carburetor provides better, more immediate throttle response.

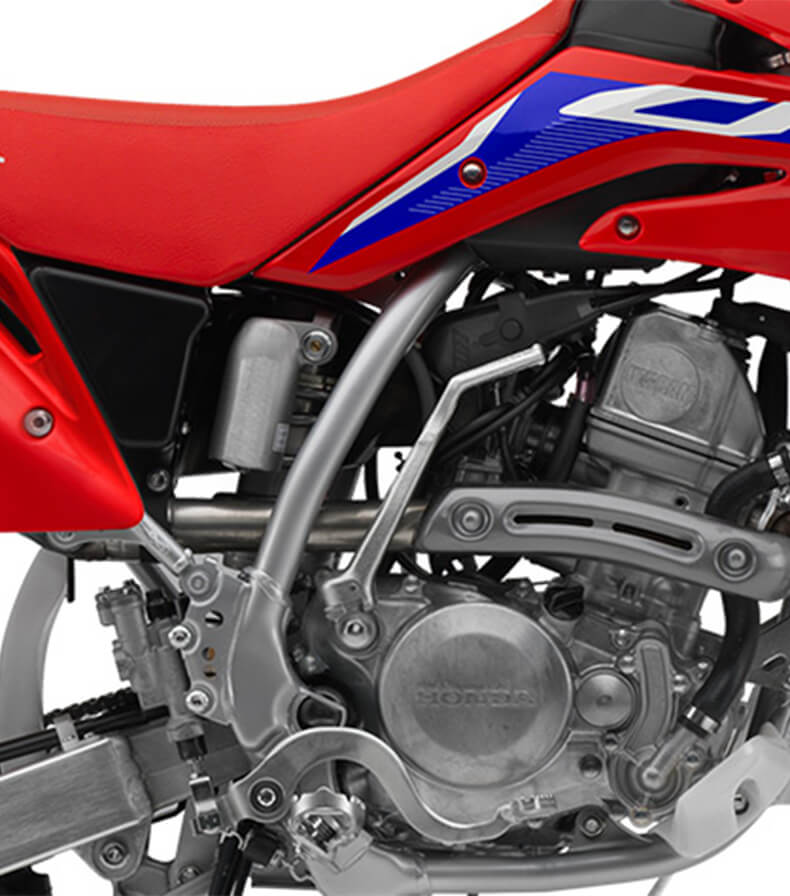

Track-designed chassis
A lightweight, high-tensile steel frame with large-diameter frame tubing and crossmember delivers excellent turning performance and straight-line tracking.

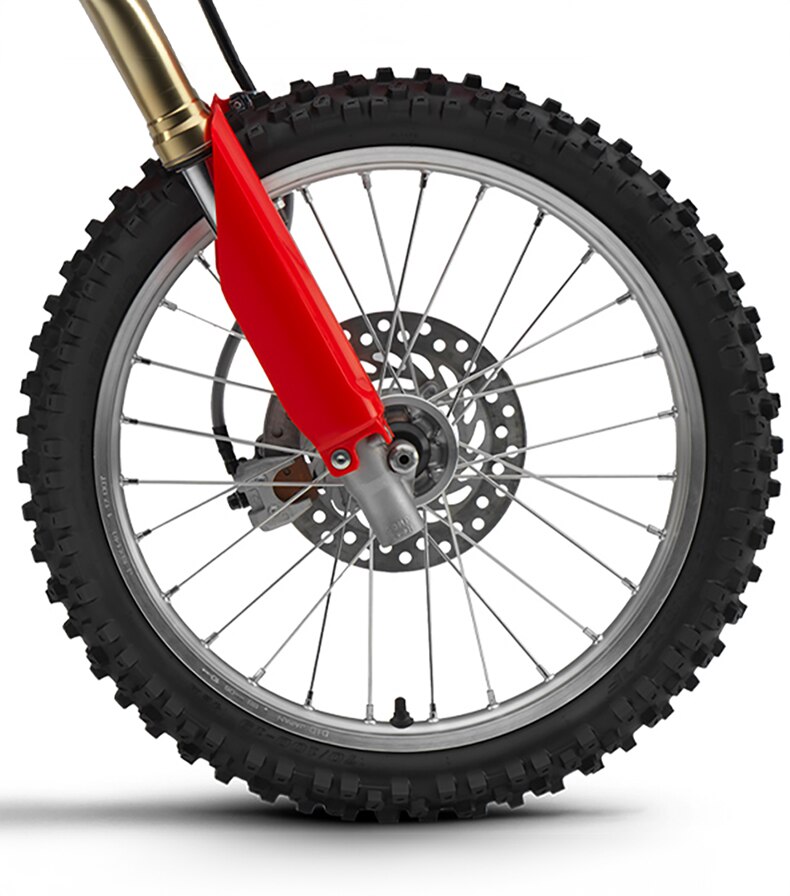

Front and rear disc brakes
Front and rear disc brakes provide powerful, precise stopping power.
Expert name, championship game
Expert model features
The CRF150R Expert features bigger wheels, a longer swingarm, and a higher seat to better suit taller riders.
Showa® front suspension
An adjustable 37mm leading-axle inverted Showa® cartridge fork features specially tuned valving for small bumps and a friction-reducing design to improve compression and rebound control.
Pro-Link® rear suspension
The Pro-Link® rear-suspension system features a fully adjustable Showa® shock for superb bump absorption and wheel control.
Lightweight wheels
Strong, lightweight wheels are durable and minimize unsprung weight.
Big-bike MX graphics
Clean, bold, and bright graphics are just like those on our CRF450R. Look like a pro, ride like a pro.
Related trims and models
CRF450R
Base MSRP $9,699* Destination Charge: $600.00
- 450cc liquid-cooled Unicam single-cylinder engine
- Redesigned airbox w/more flow
- New aluminum frame
- Updated styling
- Revised plastics for improved ergonomics
CRF450RWE
Base MSRP $12,599* Destination Charge: $600.00
- 450cc liquid-cooled Unicam single-cylinder engine
- Hand-ported red cylinder head
- 49mm Showa® inverted Ti/Kashima-coated fork
- DID DirtStar LT-X rims
- Throttle Jockey graphics/seat cover
CRF450R-S
Base MSRP $8,899* Destination Charge: $600.00
- 450cc liquid-cooled Unicam single-cylinder engine
- Fuel injection
- 49mm Showa® inverted spring fork
- In-mold graphics
- Titanium fuel tank
CRF250R
Base MSRP $8,299* Destination Charge: $600.00
- 249cc liquid-cooled DOHC single-cylinder engine
- Redesigned airbox w/more flow
- New aluminum frame
- Updated styling
- Revised plastics for improved ergonomics
CRF250RWE
Base MSRP $10,599* Destination Charge: $600.00
- 249cc liquid-cooled DOHC single-cylinder engine
- Hand-ported red cylinder head
- 49mm Showa® inverted Ti/Kashima-coated fork
- DID DirtStar LT-X rims
- Throttle Jockey graphics/seat cover

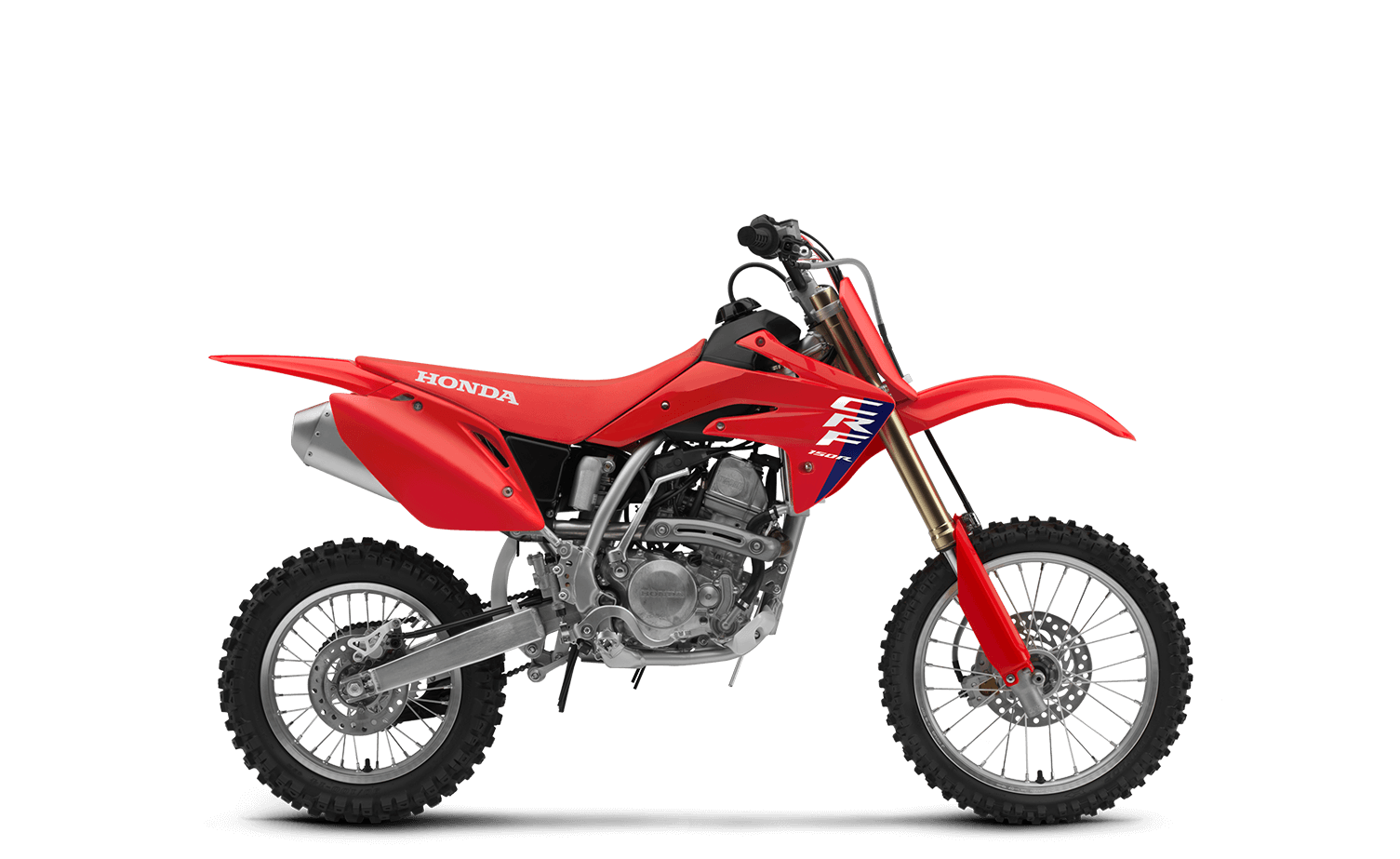

CRF150R
