CBR600RR ABS
599cc liquid-cooled inline four-cylinder four-stroke
Close-ratio six-speed
41mm inverted Big Piston Fork with spring preload, rebound- and compression-damping adjustability; 4.7-inch travel
Unit Pro-Link® HMAS™ single shock with spring preload, rebound- and compression-damping adjustability; 5.1-inch travel
32.4 inches
Transferable, unlimited-mileage limited warranty. One year included.
Engine
| Engine Type | 599cc liquid-cooled inline four-cylinder four-stroke |
|---|---|
| Bore And Stroke | 67.0mm x 42.5mm |
| Induction | Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors |
| Valve Train | DOHC; four valves per cylinder |
| Compression Ratio | 12.2:1 |
Drive Train
| Transmission | Close-ratio six-speed |
|---|---|
| Final Drive | #525 O-ring chain; 16T/42T |
Chassis Suspension Brakes
| Front Suspension | 41mm inverted Big Piston Fork with spring preload, rebound- and compression-damping adjustability; 4.7-inch travel |
|---|---|
| Rear Suspension | Unit Pro-Link® HMAS™ single shock with spring preload, rebound- and compression-damping adjustability; 5.1-inch travel |
| Front Brake | Dual radial-mounted full-floating 310mm discs with four-piston calipers |
| Rear Brake | Single 220mm disc |
| Front Tire | 120/70ZR-17 radial |
| Rear Tire | 180/55ZR-17 radial |
Dimensions
| Rake | 23.5° |
|---|---|
| Trail | 3.9 inches |
| Wheelbase | 53.9 inches |
| Seat Height | 32.4 inches |
| Curb Weight | 434 pounds (Includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 4.8 gallons |
Other
| Model ID | CBR600RA |
|---|---|
| Emissions | Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment. |
| Available Colors | Deep Pearl Gray |
Factory Warranty Information
| One Year Included | Transferable, unlimited-mileage limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Control every curve
Radial-mounted front brake calipers
Radial-mounted monoblock front-brake calipers with four chromium-plated aluminum pistons feature a stiffer construction that provides a better brake feel, ensuring linear and powerful stopping.
Centrally located fuel tank
Strategically positioned as close to the middle and as low in the frame as possible, the 4.8-gallon fuel tank optimizes mass centralization, enhancing the bike's responsiveness to rider input.

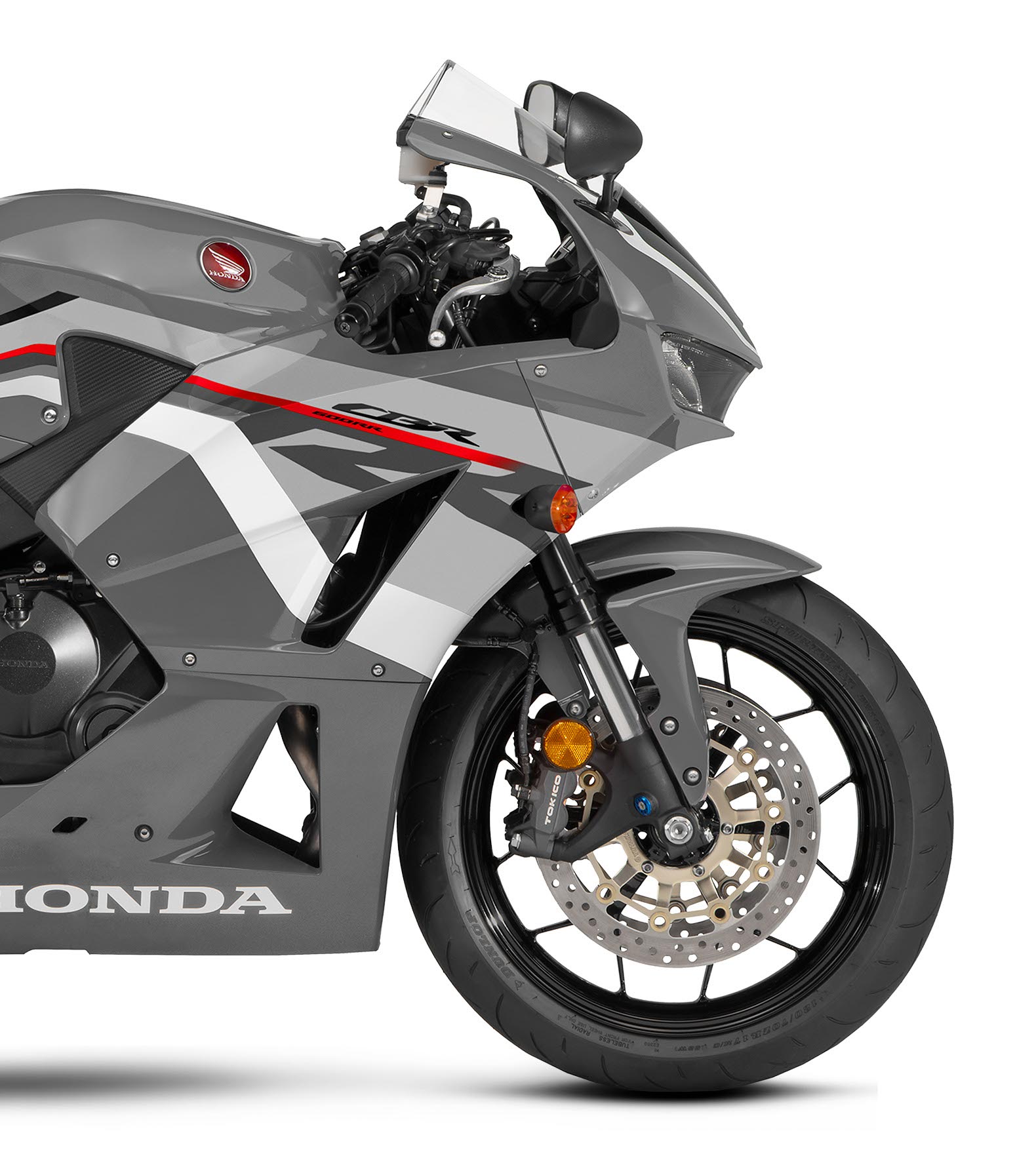

Honda Electronic Steering Damper (HESD)
Our Honda Electronic Steering Damper (HESD) goes beyond typical steering dampers. Sensing handlebar deflection speed and vehicle speed to adjust dynamically, the HESD ensures exceptional low-speed maneuverability while maintaining excellent high-speed stability.

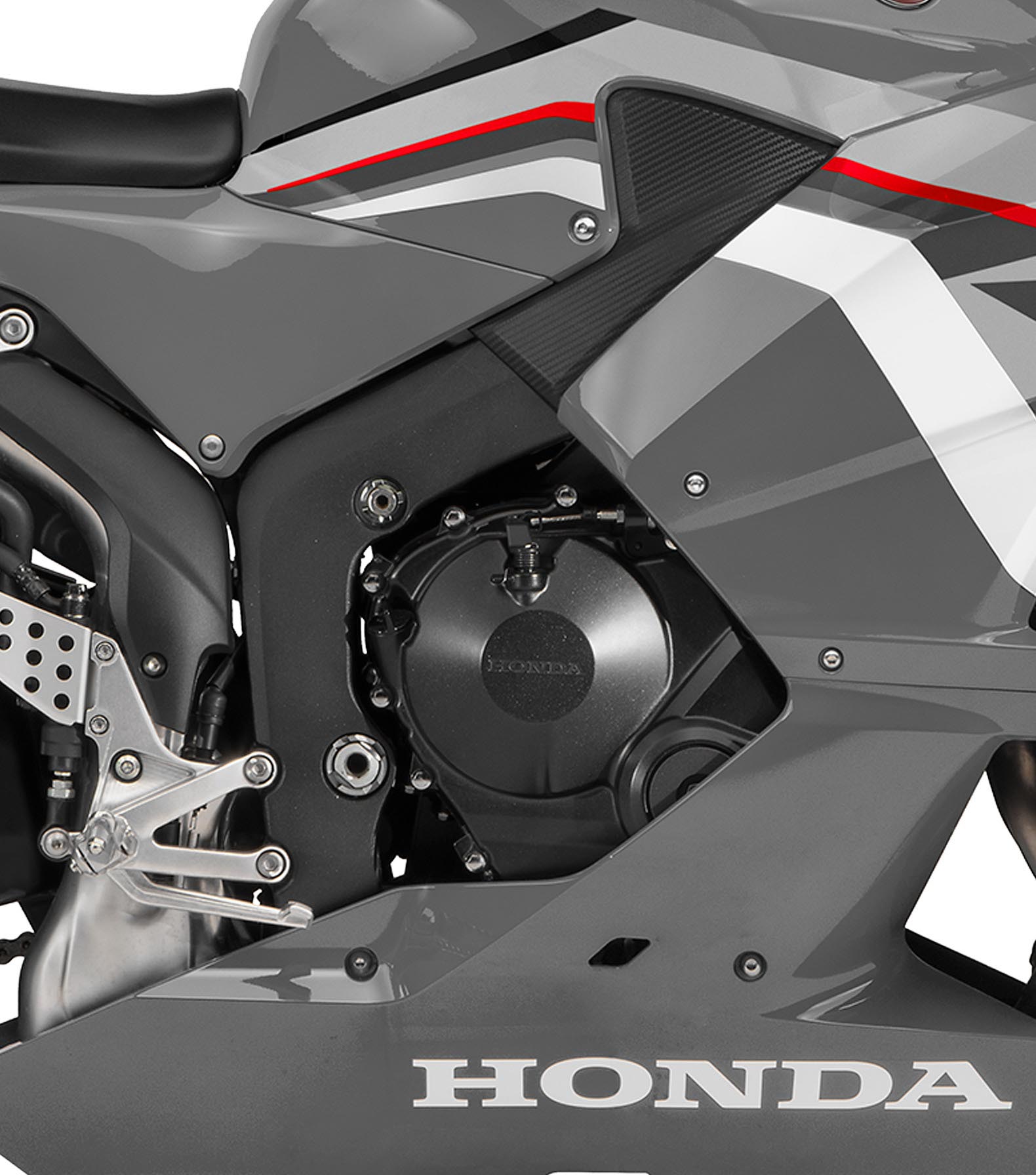

Dual-stage fuel injection
Dual injectors in each cylinder ensure exceptional low and high rpm capabilities, while refined EFI settings enhance throttle response, especially at smaller openings, for a smooth but still exhilarating ride.
Ultimate grip, total control

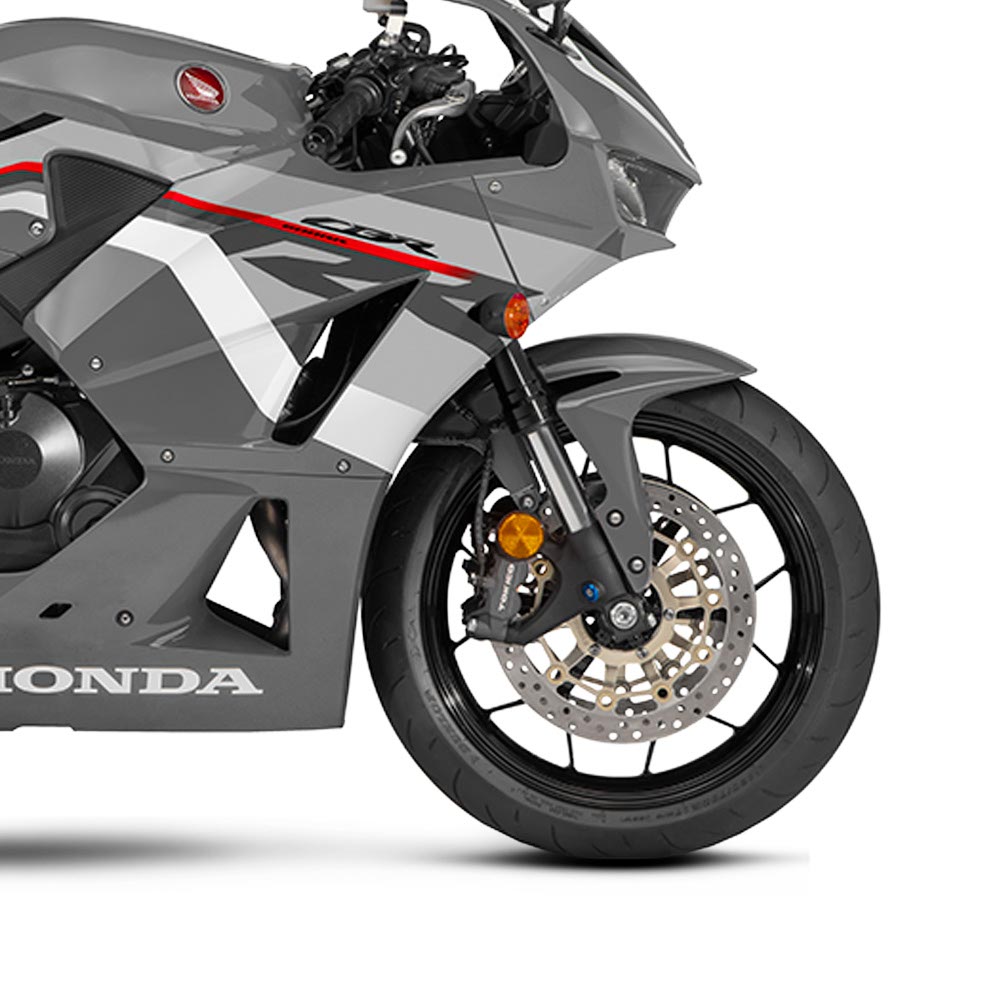

Electronic Combined Anti-Lock Braking System (C-ABS)
Available on the CBR600RR ABS model, experience confident braking in any condition with our Combined Anti-Lock Braking System (C-ABS). This advanced system distributes brake force to both wheels, intelligently applying the front or rear brake independently when necessary for maximum stopping power.
Dual-stage ram air
This ingenious design ensures a generous cool airflow to the airbox, resulting in smooth power delivery and exceptional engine performance throughout the rpm range.
Honda Multi-Action System inverted fork
The HMAS cartridge fork features smaller-diameter pistons, maintaining high oil velocity, improving damping characteristics, and providing a more comprehensive range of adjustability.

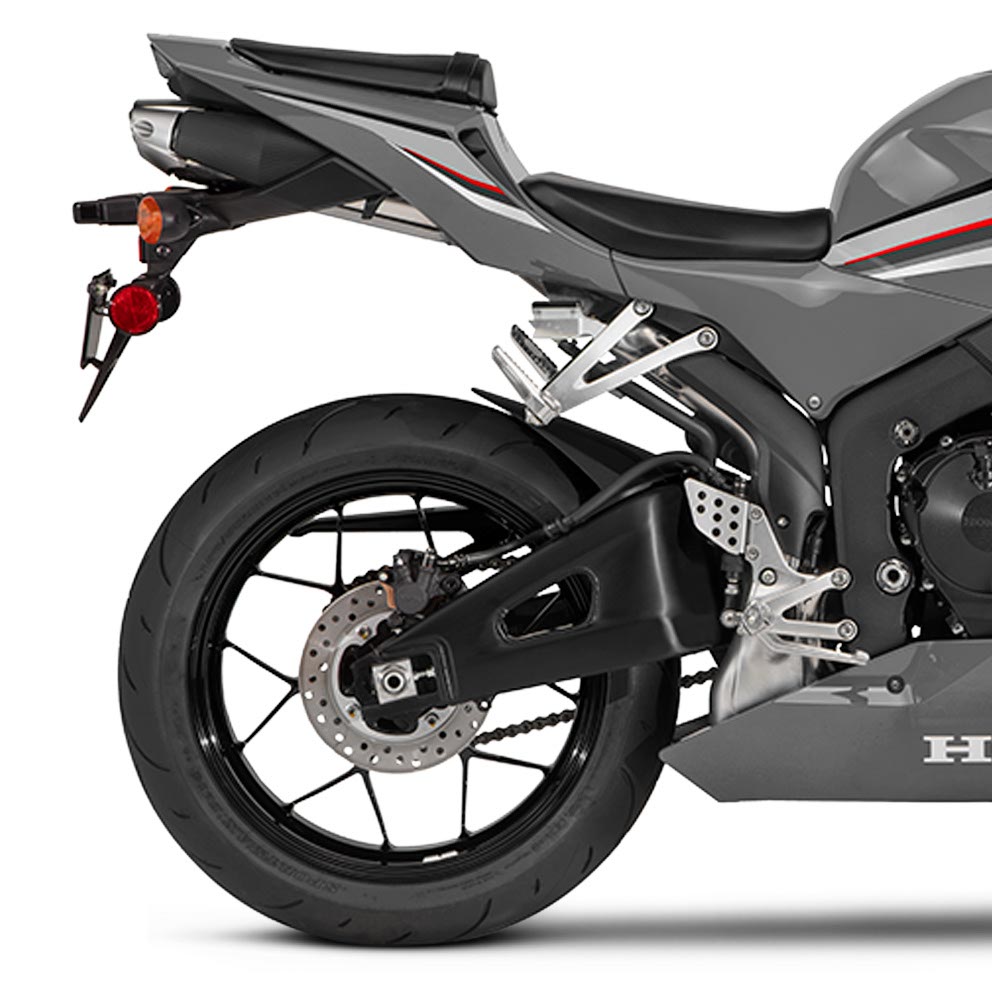

Unit Pro-Link® suspension
Derived from our MotoGP championship-winning bikes, the Unit Pro-Link® rear suspension eliminates the frame-mounted top shock mount, isolating the chassis from the bumps to provide more precise handling and improved traction.

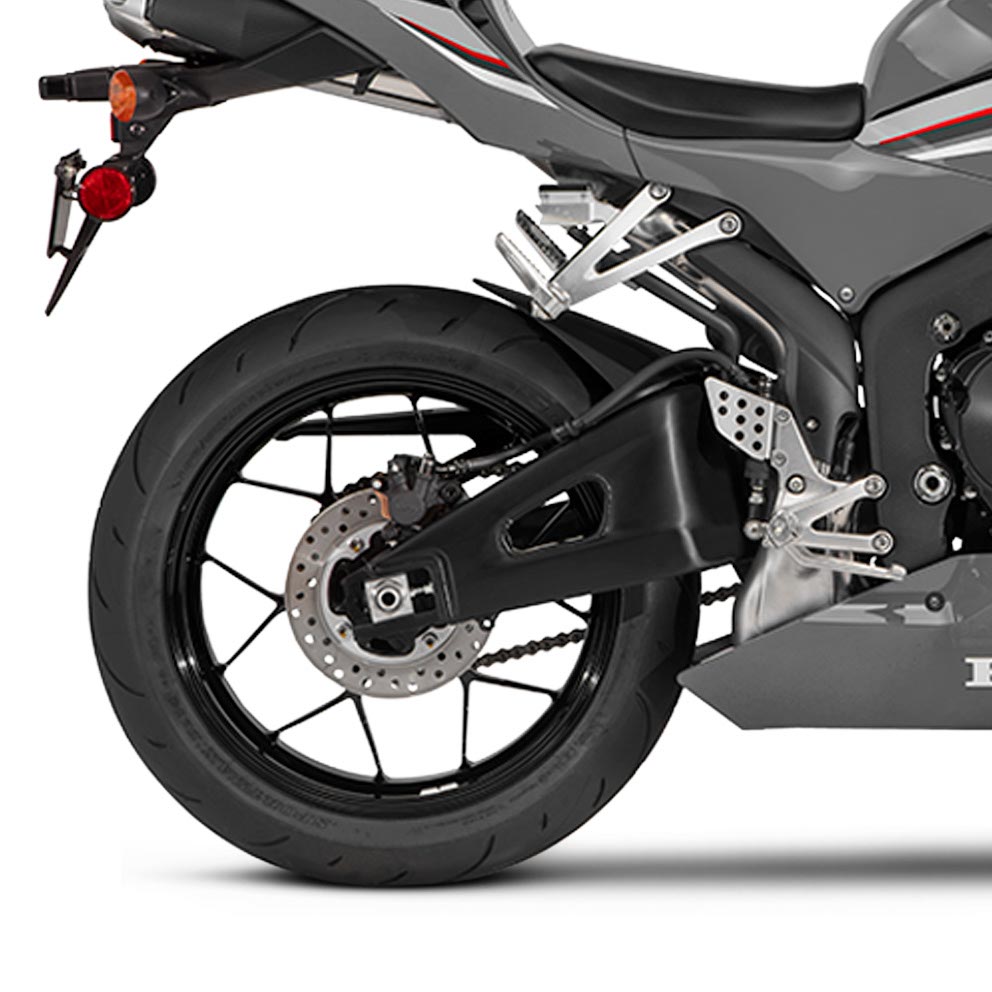

12-spoke wheels
With their consistent rigidity and balance, these sharp-looking 12-spoke cast aluminum wheels work with the fork and enhance suspension feedback to deliver real handling improvements.

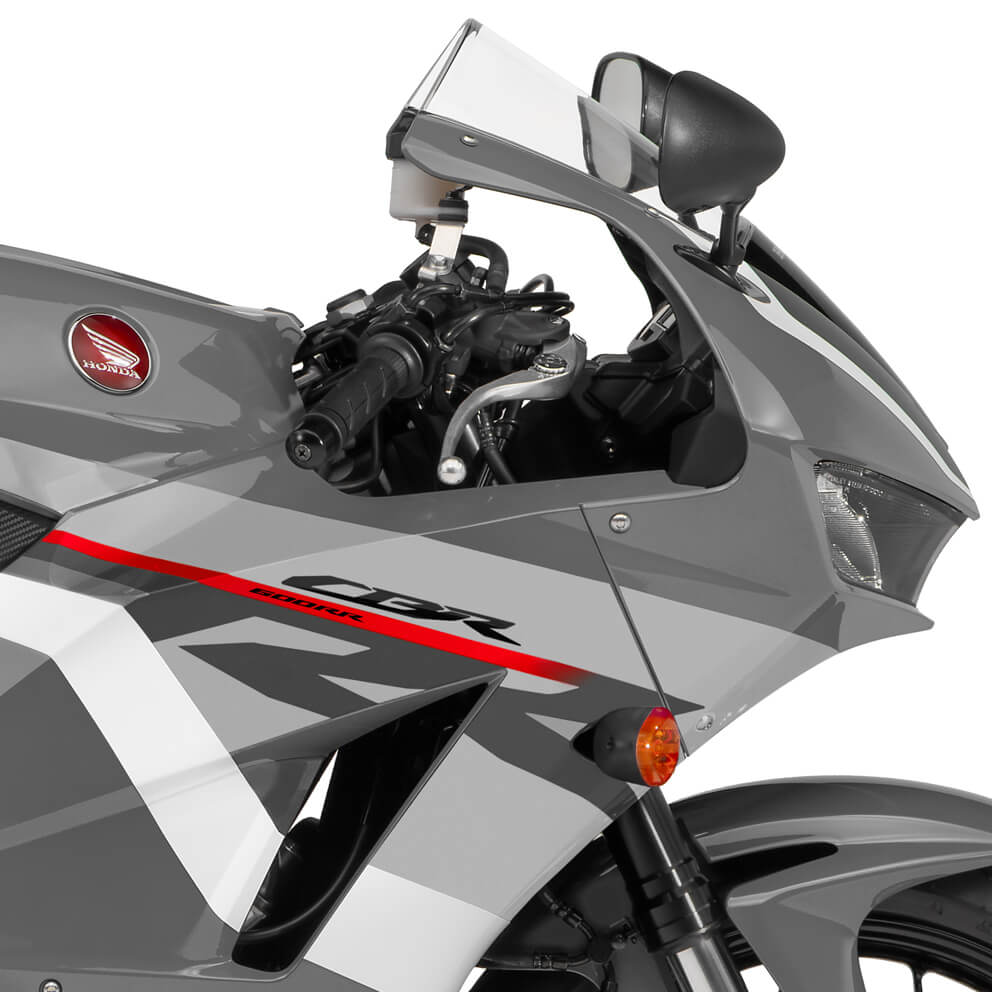

Line-beam headlights
Line-beam headlights have a two-piece reflector design with two H7 bulbs for optimal light distribution and a unique compact design, resulting in improved visibility for the driver and other traffic.
