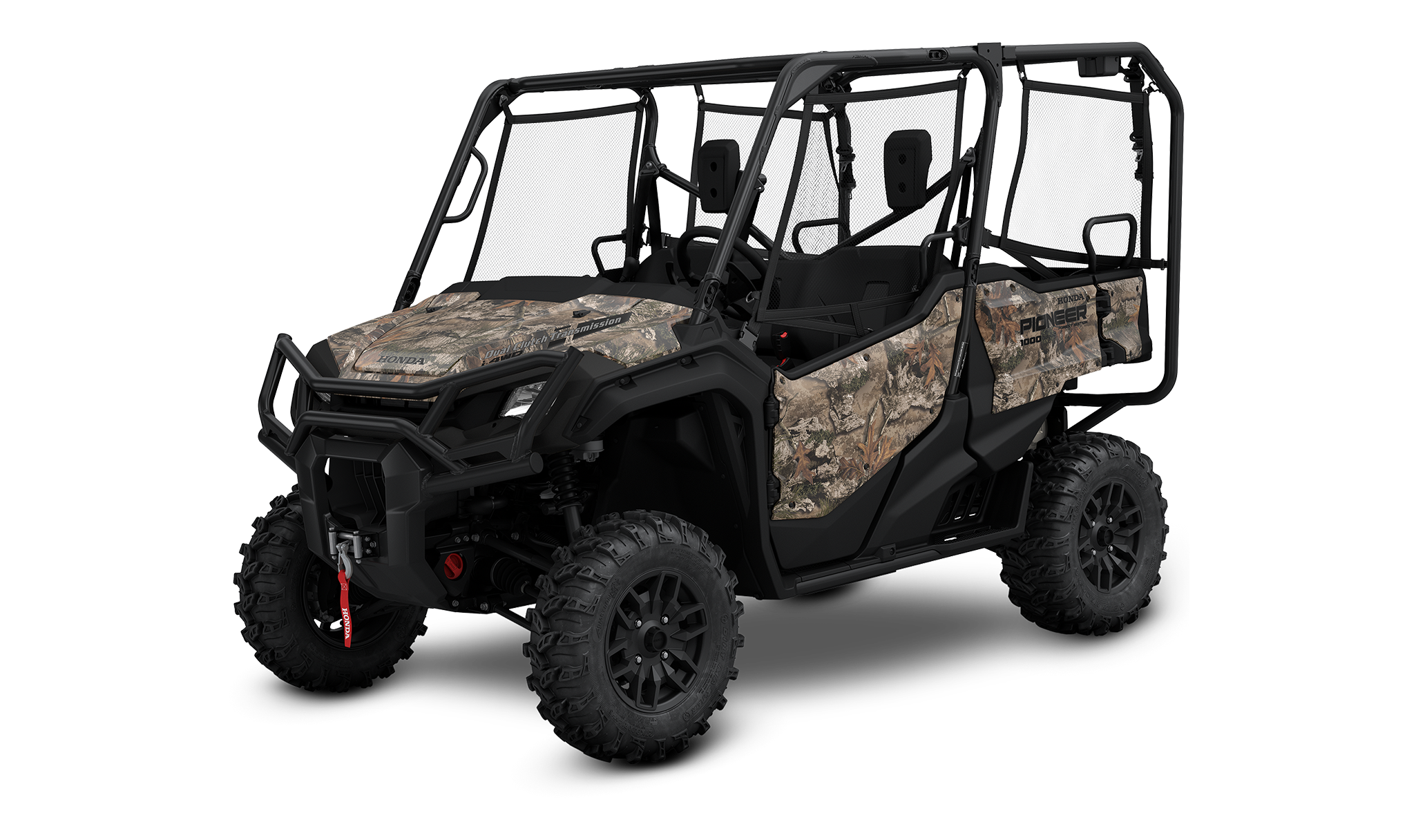

TrueTimber® Atera Camo

Engine Type

999cc liquid-cooled longitudinally mounted parallel-twin four-stroke

Transmission

Six-speed automatic Dual-Clutch Transmission (DCT)

Front Suspension

Independent double-wishbone; 10.6-inch travel

Rear Suspension

Independent double-wishbone; 10.0-inch travel

Wheelbase

80.2 inches

Warranty

Transferable, limited warranty. One year included.

Extended Warranty

Engine

Engine Type	999cc liquid-cooled longitudinally mounted parallel-twin four-stroke
Bore And Stroke	92.0mm x 75.2mm
Compression Ratio	10:1
Valve Train	Unicam® SOHC; four valves per cylinder
Induction	Fuel Injection (PGM-FI), 44mm throttle body

Drive Train

Transmission	Six-speed automatic Dual-Clutch Transmission (DCT)
Driveline	Direct front and rear driveshafts

Chassis Suspension Brakes

Front Suspension	Independent double-wishbone; 10.6-inch travel
Rear Suspension	Independent double-wishbone; 10.0-inch travel
Front Brakes	Dual 210mm hydraulic discs
Rear Brakes	Dual 210mm hydraulic discs
Front Tires	27 x 9-14
Rear Tires	27 x 11-14

Dimensions

Length	119.2 inches
Width	63.0 inches
Height	76.4 inches
Wheelbase	80.2 inches
Bed Capacity	1000 pounds for 49-state models; 600 pounds for CA model
Towing Capacity	2500 pounds
Seat Height	33.6 inches
Ground Clearance	12.3 inches
Turning Radius	13.8 feet
Curb Weight	1793 pounds – Includes all standard equipment, required fluids and full tank of fuel.
Fuel Capacity	7.9 gallons, including 1.2-gallon reserve

Other

Safety	Recommended for drivers 16 years of age and older.
Available Colors	TrueTimber® Atera Camo
Model ID	SXS10M5DF

Factory Warranty Information

One Year Included	Transferable, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Ready for adventure

Unbeatable versatility

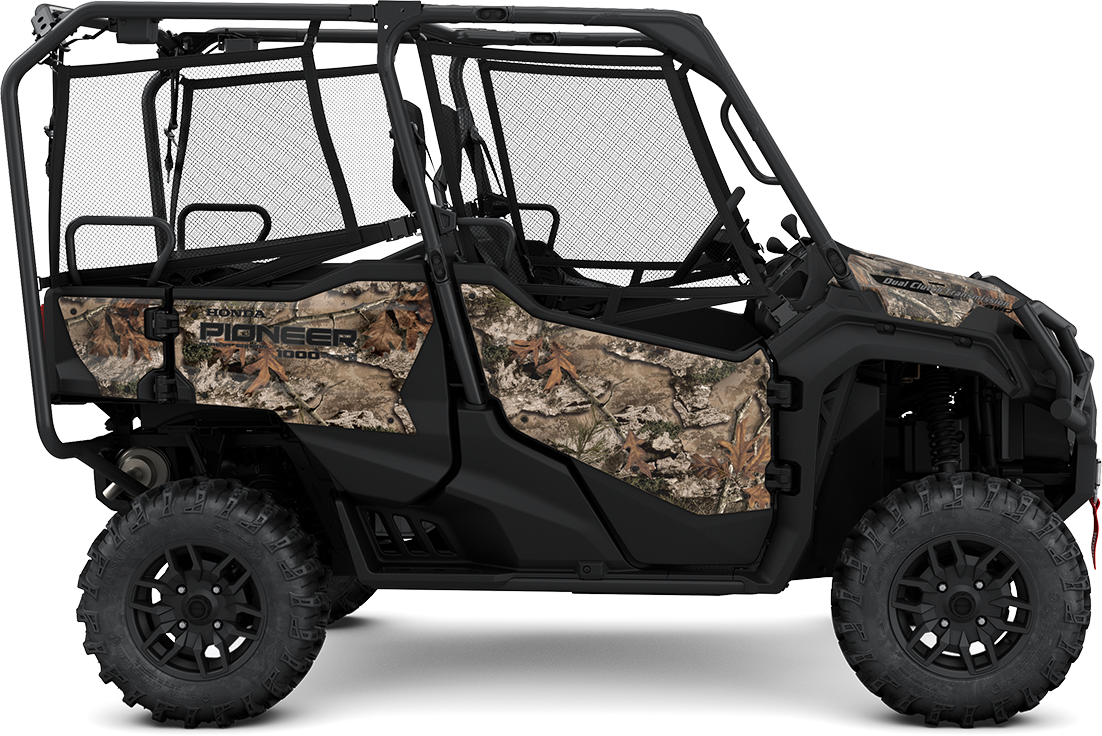

Chassis and suspension

Our advanced frame design allows you to tackle tough terrain with larger tires and long-travel independent front and rear suspension, providing ample ground clearance.

Unbeatable versatility

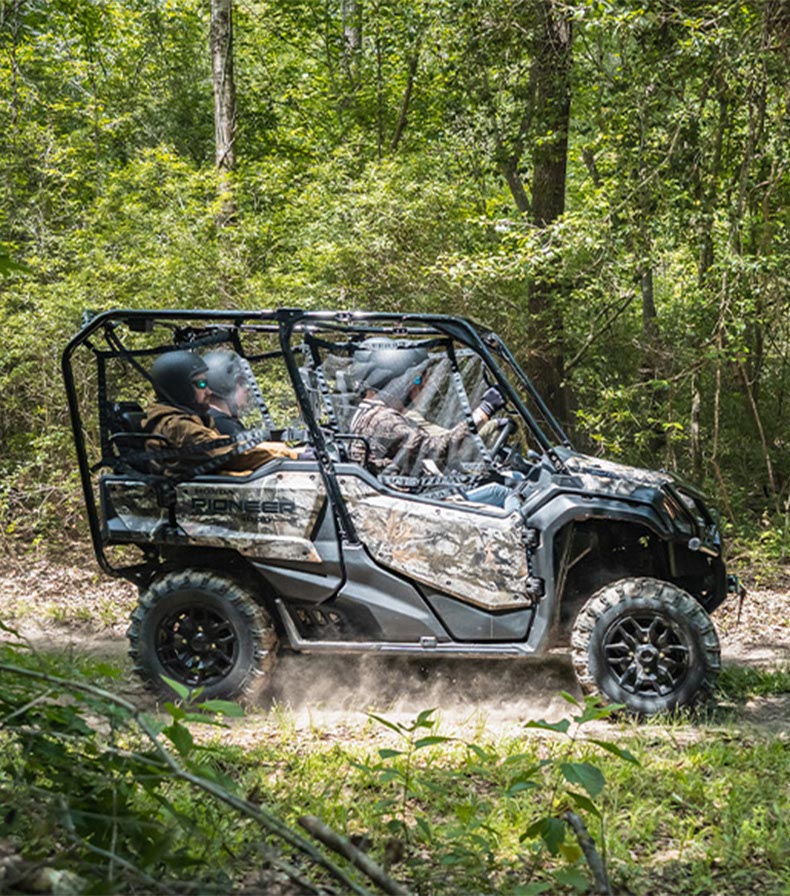

Powerful 999cc twin-cylinder engine

We significantly increased the engine's power for the 1000 lineup, especially in the midrange and top end. You will experience quick acceleration and exceptional overall performance thanks to the lower gear ratios.

Unbeatable versatility

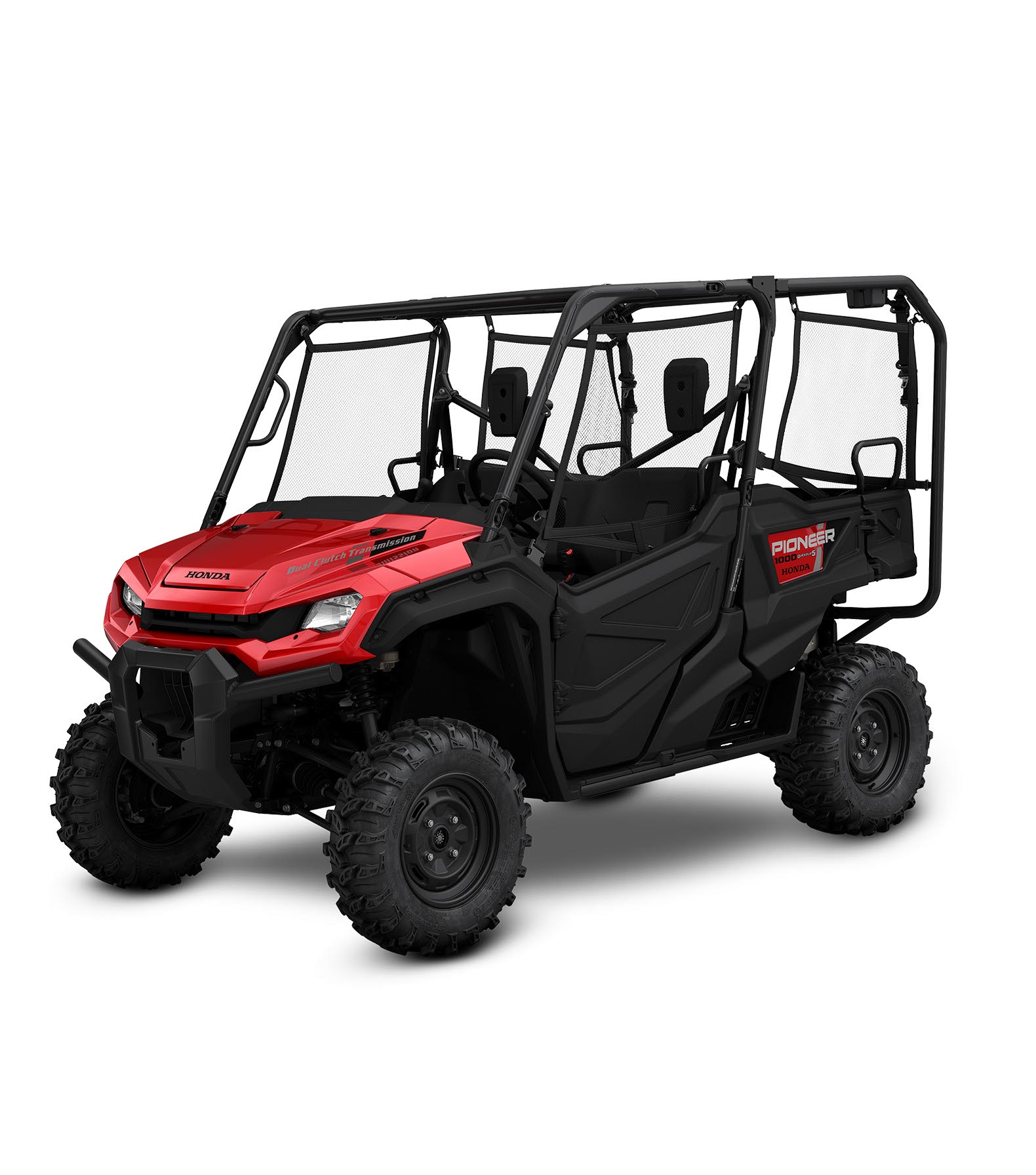

Fully automatic six-speed DCT

Drive the way you want with the industry’s first six-speed Dual-Clutch Transmission (DCT). Choose between manual mode or fully automatic. There’s even an easy-to-use tow/haul mode, along with 2WD, 4WD, Differential Lock, and Turf selections.

Unbeatable versatility

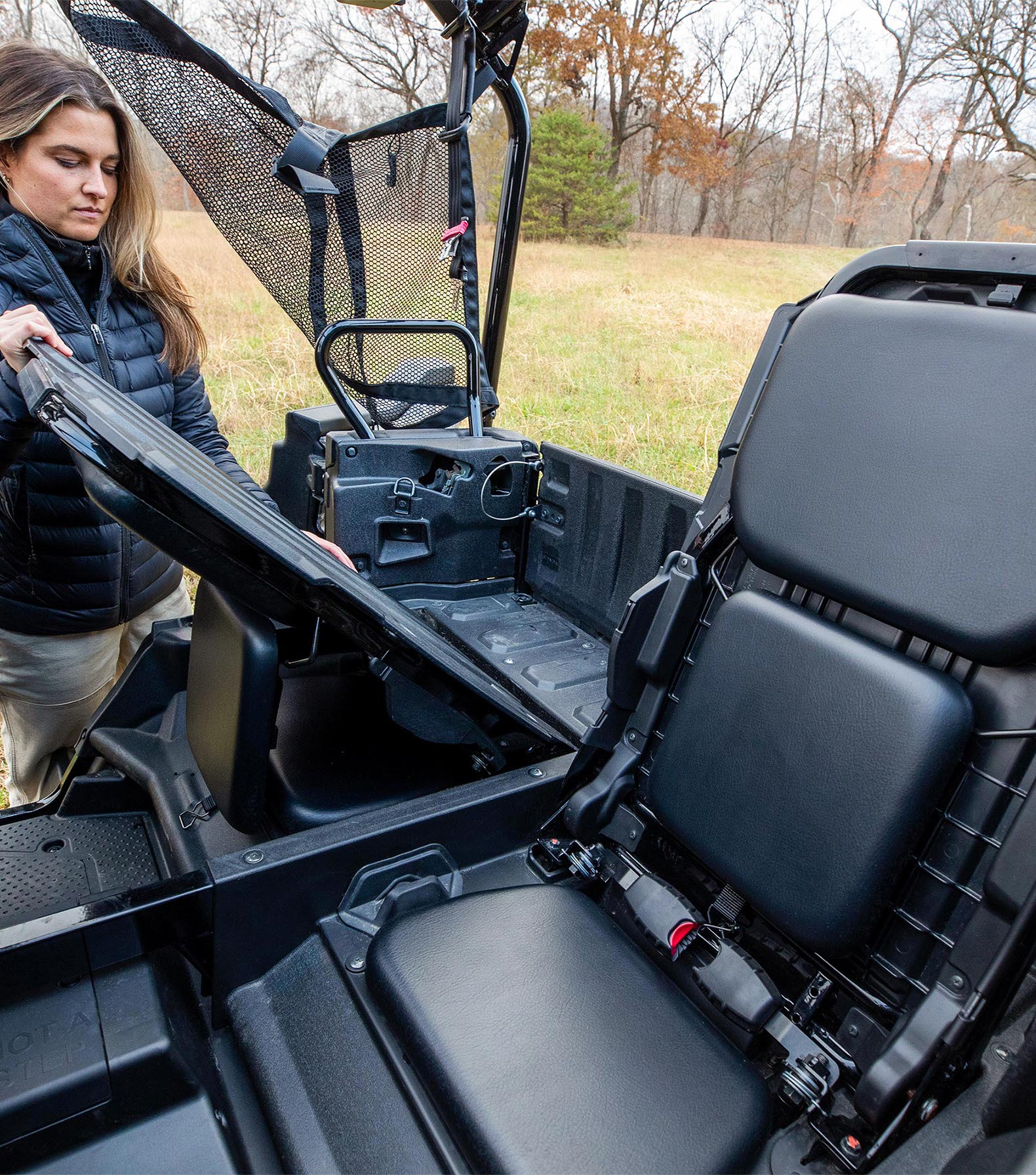

QuickFlip® seating

The cargo bed has two QuickFlip^® seats that can be popped up, providing extra seating. This feature is exclusive to Honda and offers better maneuverability on the trails.

Nature's palette, Honda's brush

View all Features

Forest and Trail models

The Trail and Forest Editions deliver the kind of off-road experiences you seek. They’re loaded with factory-installed accessories and extras, like Warn winches, special wheels, cabin lighting, special paint and graphics, and much more.

i-4WD

The Trail and Forest models feature Honda's exclusive i-4WD system. It simplifies operation, improves drivability, and optimizes traction with its industry-first brake-traction control system.

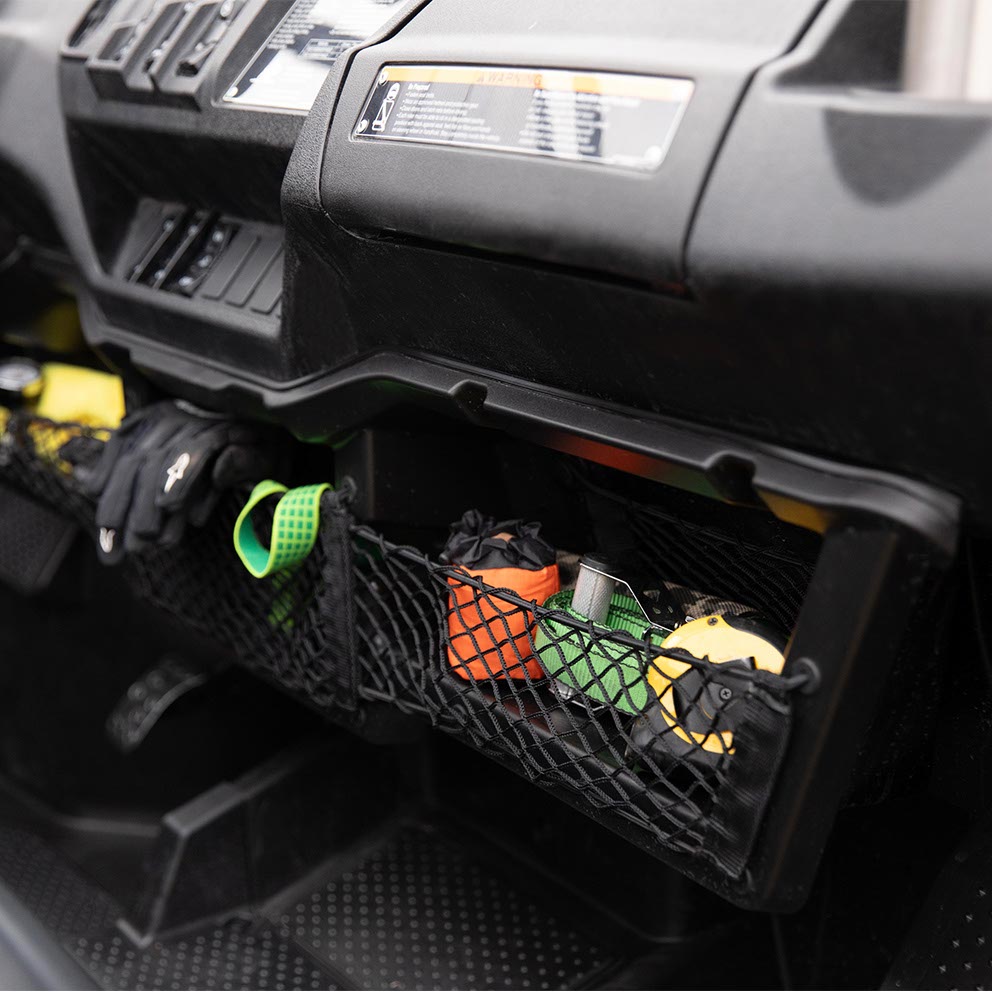

Under-dash storage

This practical under-dash shelf is standard on the Deluxe, Trail, and Forest editions and an available accessory on the standard 1000-5. It keeps frequently used items right up front in the cab.

Warn VRX45 winch

Installed at the factory and built right into the chassis, the 4500-pound Warn winch is available as standard equipment on our Forest and Trail models and as an option on the standard and Deluxe.

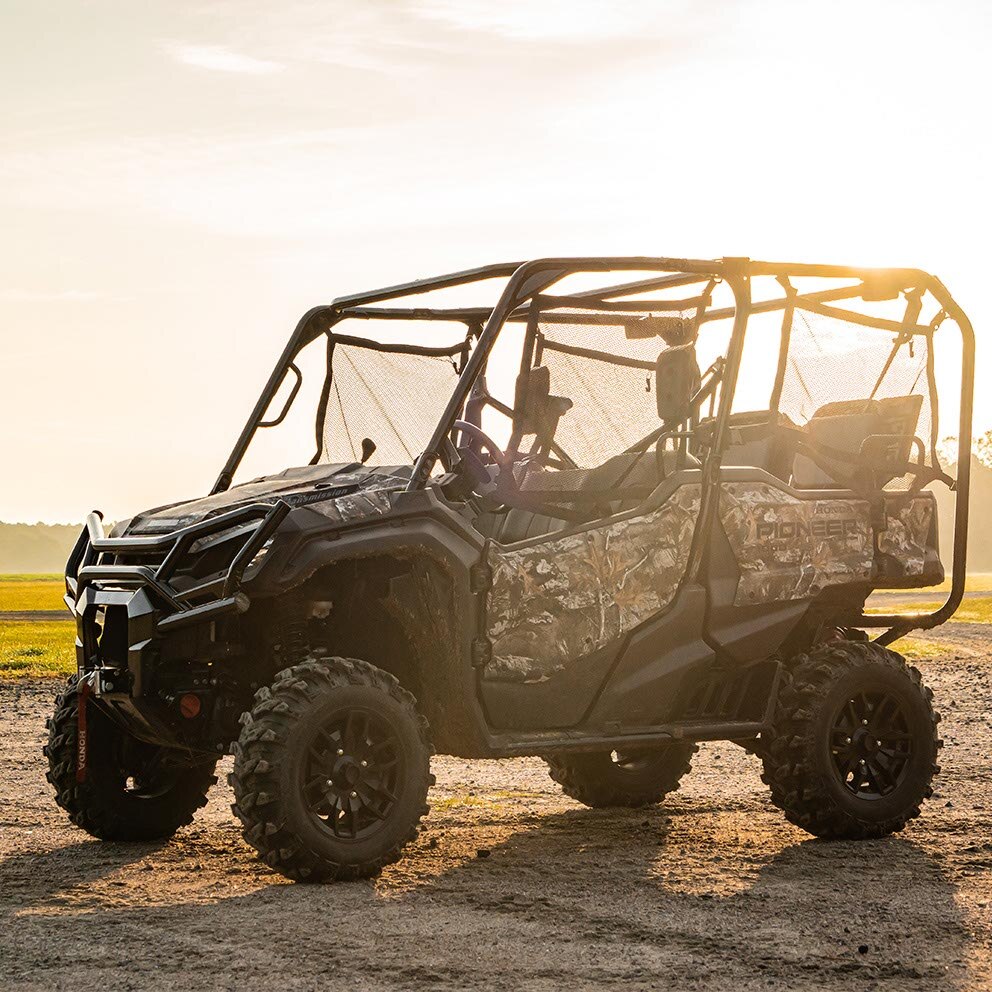

LED bed light

Whether on the trail before sunrise or camping overnight, our Forest Edition features integrated LED bed lighting on both the left and right sides. (Available as an accessory on all other 1000-5 models.)

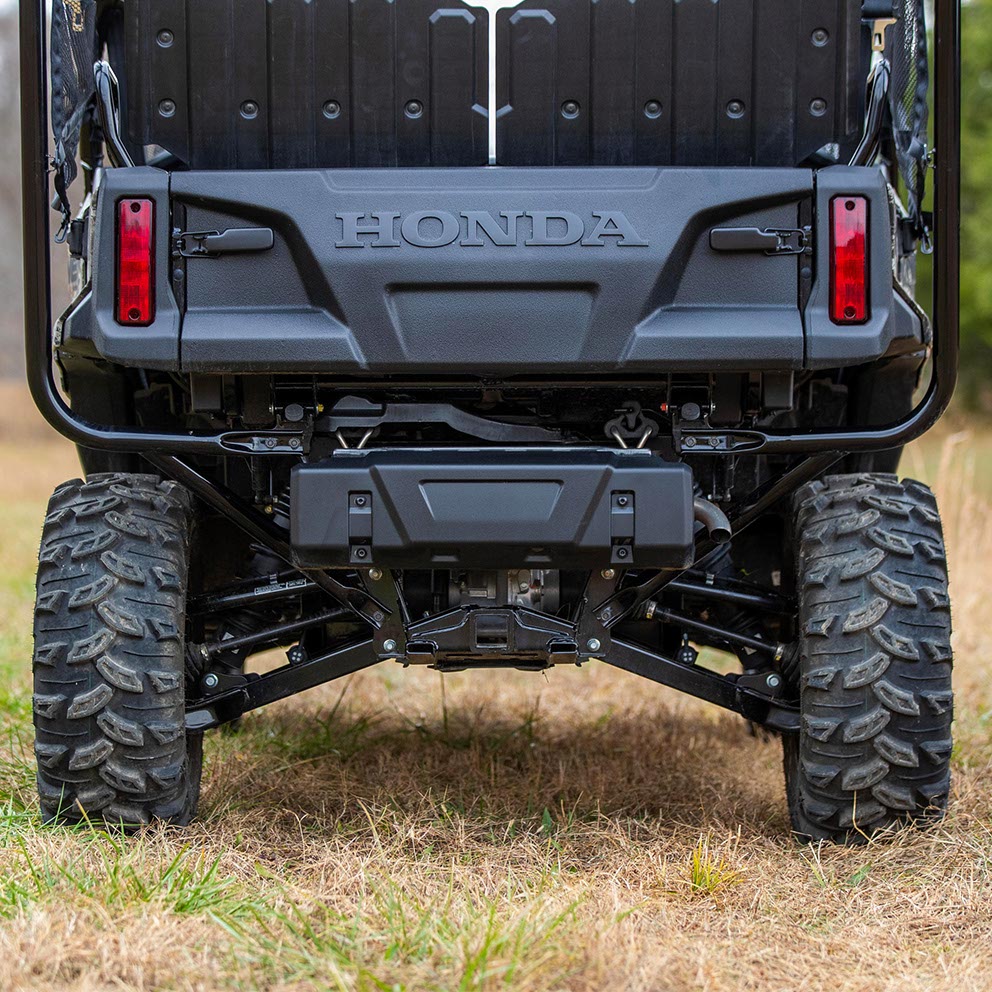

12-volt accessory socket

The Deluxe, Trail, and Forest all feature a standard 12-volt power socket in the bed. This outlet uses a common “cigarette-lighter” style, perfect for powering a spotlight, air compressor, and more.

Interior light

The Trail and Forest Editions have an interior light that illuminates the cabin's floor area. It’s convenient and helps increase the visibility of the under-dash storage area.

Accessory switch panel

Standard equipment on the Deluxe, Trail, and Forest: the switch panel has room for seven switches, letting you control things like a winch, accessory lights, and more. A fully integrated design, it sits in the center of the dashboard.

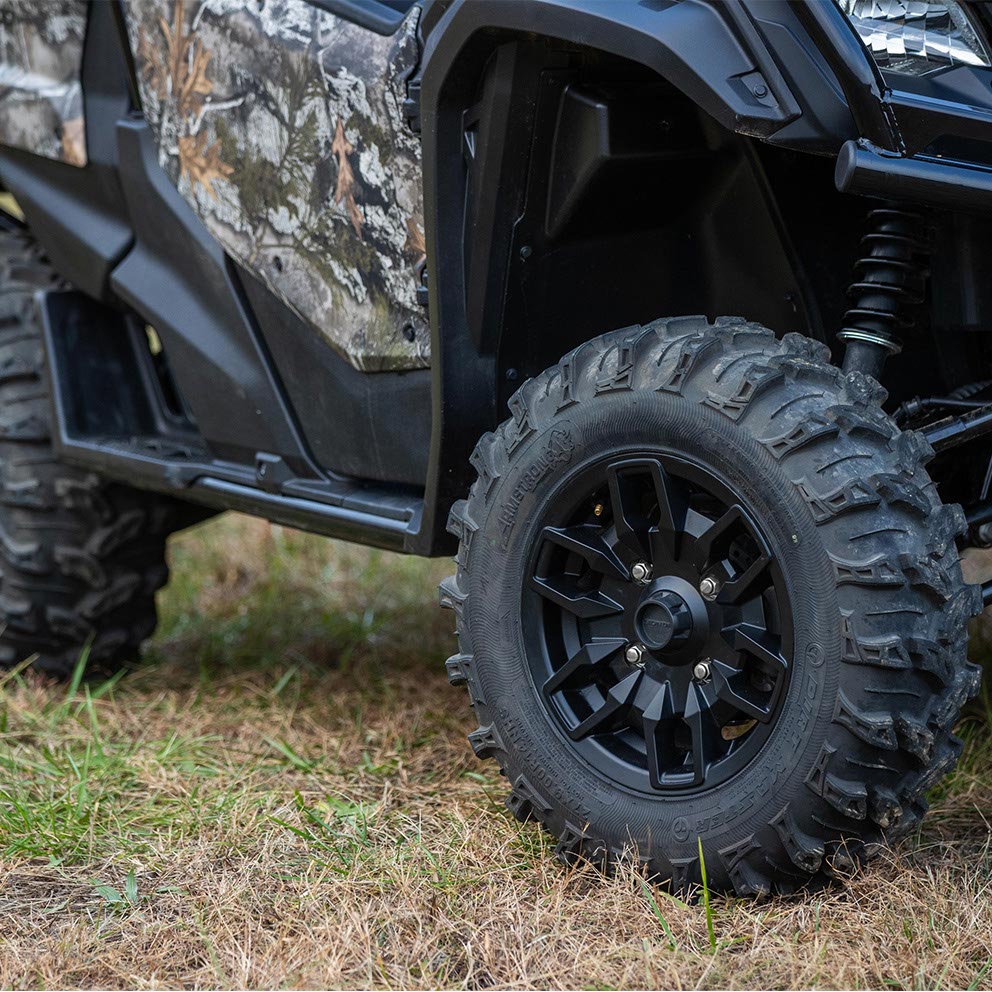

OTR Dirt Master tires

All models come with high-performance OTR Dirt Master tires, providing exceptional off-road traction and long-lasting durability.

Three different wheel choices

The standard model rolls on 14-inch steel wheels. The Deluxe and Forest Editions have 14-inch aluminum wheels with an all-black finish, and the Trail Edition has 14-inch black aluminum wheels with contrast-cut highlights.

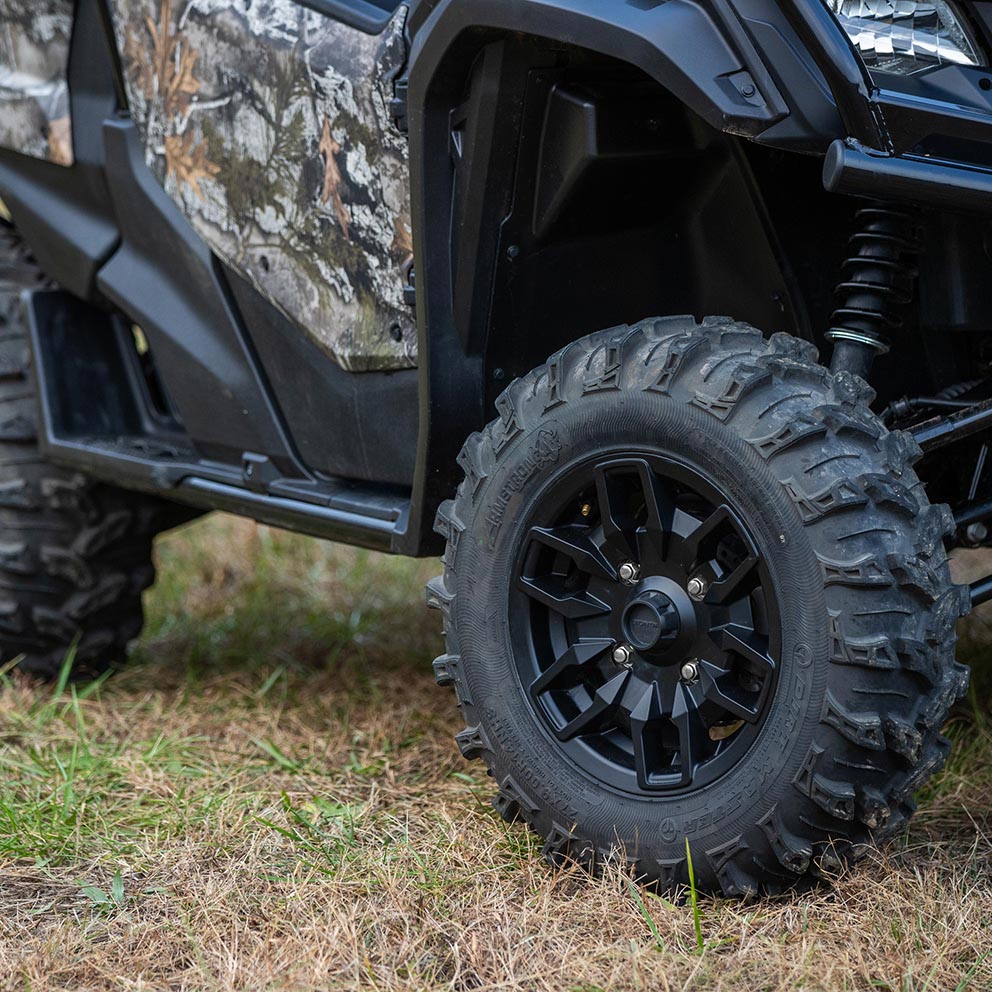

Four-wheel disc brakes

Our high-quality disc brakes are designed for consistent performance, even in debris-heavy environments. Trust in their reliability and stop with confidence on the trail.

Safety nets

Taking a cue from our Talon sport SxS models, we’ve made the safety nets easy to connect and disconnect. And the mesh pattern optimizes airflow while helping provide passenger safety.
