Honda Phantom Camo

Engine Type

999cc liquid-cooled longitudinally mounted parallel-twin four-stroke

Transmission

Six-speed automatic Dual-Clutch Transmission (DCT)

Front Suspension

Independent double-wishbone; 10.6-inch travel

Rear Suspension

Independent double-wishbone; 10.0-inch travel

Wheelbase

80.2 inches

Warranty

Transferable, limited warranty. One year included.

Extended Warranty

Engine

Engine Type	999cc liquid-cooled longitudinally mounted parallel-twin four-stroke
Bore And Stroke	92.0mm x 75.1mm
Compression Ratio	10:1
Valve Train	Unicam® SOHC; four valves per cylinder
Induction	Fuel Injection (PGM-FI); 44mm throttle body

Drive Train

Transmission	Six-speed automatic Dual-Clutch Transmission (DCT)
Driveline	Direct front and rear driveshafts

Chassis Suspension Brakes

Front Suspension	Independent double-wishbone; 10.6-inch travel
Rear Suspension	Independent double-wishbone; 10.0-inch travel
Front Brakes	Dual 210mm hydraulic discs
Rear Brakes	Dual 210mm hydraulic discs
Front Tires	27 x 9-14
Rear Tires	27 x 11-14

Dimensions

Length	120.4 inches
Width	63.0 inches
Height	76.6 inches
Wheelbase	80.2 inches
Bed Capacity	1000 pounds for 49- state models; 600 pounds for CA model
Towing Capacity	2500 pounds
Ground Clearance	12.8 inches
Turning Radius	13.8 feet
Curb Weight	1676 pounds - Includes all standard equipment, required fluids and full tank of fuel.
Fuel Capacity	7.9 gallons, including 1.7-gallon reserve

Other

Safety	Recommended for drivers 16 years of age and older.
Available Colors	Honda Phantom Camo® Some models and colors not available in California, contact your dealer for details
Model ID	SXS10M3DF

Factory Warranty Information

One Year Included	Transferable, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Nature's call answered

Prior Model Year Shown

Where wilderness meets wonder

Powerful 999cc twin-cylinder engine

We significantly increased the engine's power for the 1000 lineup, especially in the midrange and top end. Thanks to the lower gear ratios, you will experience quick acceleration and exceptional overall performance.

Where wilderness meets wonder

Automatic six-speed DCT

The industry's first all-gear-driven six-speed automatic Dual-Clutch Transmission (DCT) allows you to choose between manual mode or fully automatic. Additionally, Sport Mode has been added to increase the fun by shifting at higher RPMs.

Where wilderness meets wonder

2500-pound towing capacity

The 1000 lineup can haul up to 2500 pounds, making it possible to complete bigger jobs without having to use a tractor or a truck.

Where wilderness meets wonder

Turf/2WD/4WD/diff lock

To avoid damaging sensitive surfaces, make sure to select Turf Mode. If you require maximum traction, switch to 4WD. And if you need the most power for all four wheels, lock the front and rear differentials. The best part is that you can easily do all of this with just a single lever.

Trail conservation, Pioneer innovation

View all Features

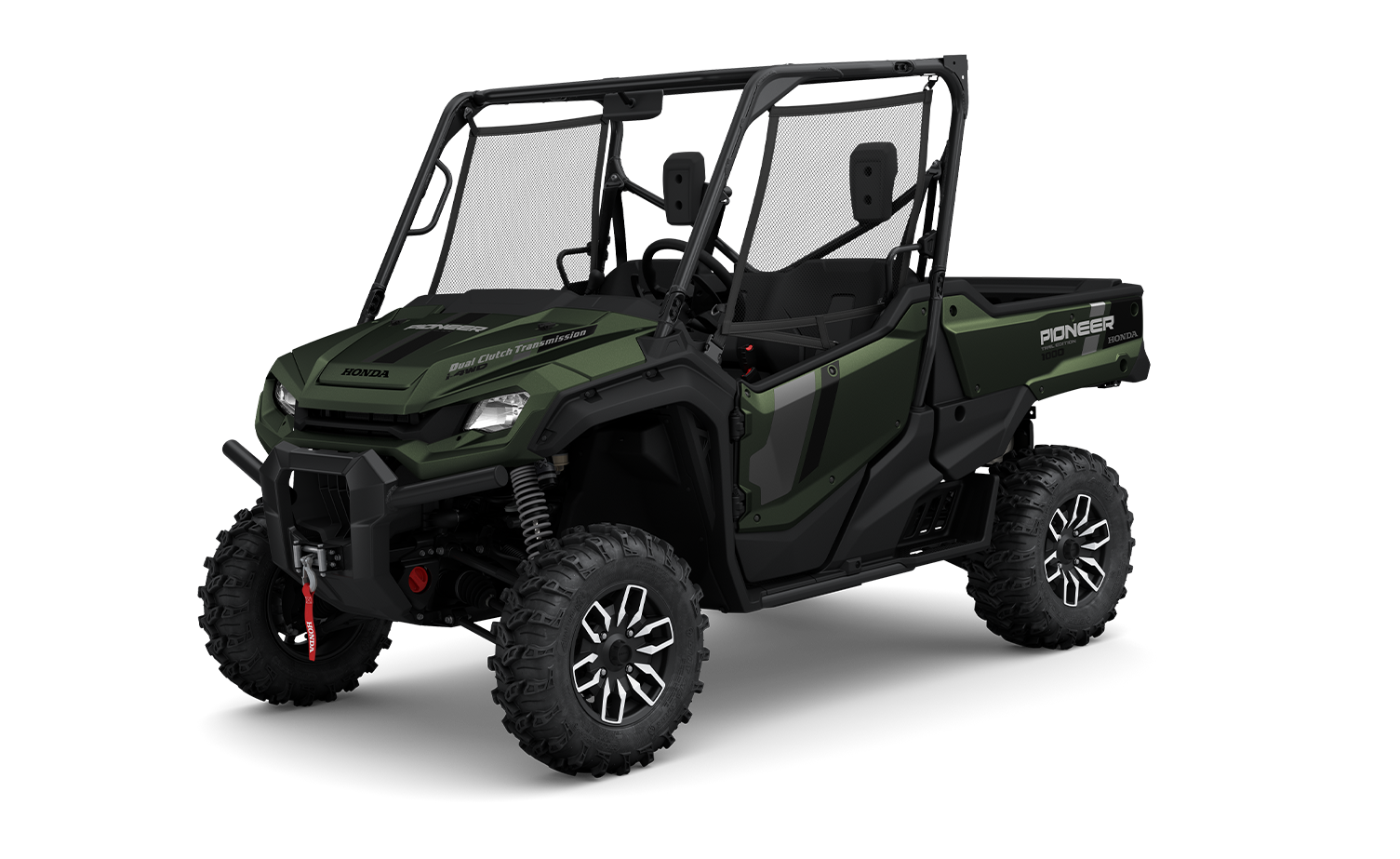

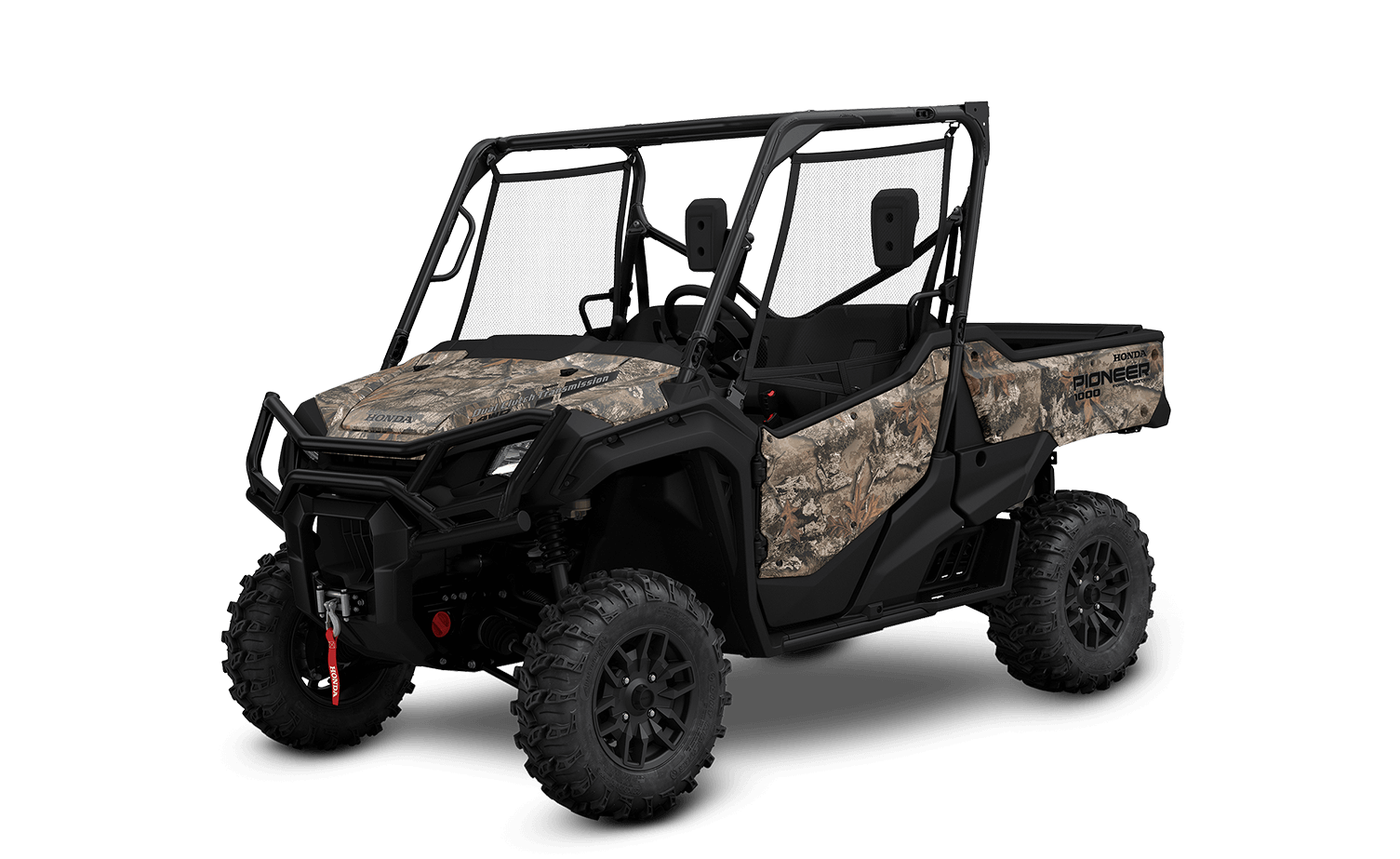

Forest and Trail models

The Trail and Forest models come with factory accessories, such as Warn winches, special wheels, cabin lighting, and unique paint and graphics, to enhance your off-road experience.

Prior Model Year Shown

i-4WD

The Trail and Forest models feature Honda's exclusive i-4WD system. It simplifies operation, improves drivability, and optimizes traction with its industry-first brake-traction control system.

Warn VRX45 winch

Installed at the factory and built right into the chassis, the 4500-pound Warn winch is available as standard equipment on our Forest and Trail models and as an option on the standard and Deluxe.

Prior Model Year Shown

Unicam® cylinder head

All three trims boast a 999cc liquid-cooled inline twin engine using the same compact Unicam® cylinder head design as our motocross bikes, delivering impressive horsepower and torque.

Prior Model Year Shown

Independent front and rear suspension

Dual A-arm suspension provides 10.5 inches of front travel and 10 inches in the rear. When paired with ample ground clearance, this maximizes traction and comfort.

Prior Model Year Shown

1000-pound-capacity bed*

One of the most impressive features of this vehicle is its half-ton hauling capacity. No other side-by-side can haul more weight. Additionally, we've made it easier to dump with a hydraulic assist tilt bed lever.

*600-pound bed capacity for CA models

Under-dash storage

This practical under-dash shelf is standard on the Deluxe, Trail, and Forest editions and an available accessory on the standard 1000. It keeps frequently used items right up front in the cab.

Prior Model Year Shown

3-person contoured bench seat

Contoured for three passengers, the seat features a center positioned up and forward to maximize space and comfort and a tough covering designed to resist the elements and heavy use.

Rear-view mirror

All models feature an integral rear-view mirror mounting bracket on the rollover protection structure. The mirror is standard equipment in the Trail edition and an accessory available in all other trims.

Prior Model Year Shown

Cooler cabin

Our engineers have made some big improvements to the whole lineup when it comes to managing cabin heat. You'll ride cooler and be more comfortable in warm-weather conditions.
