2026 FourTrax Recon
229cc air-cooled longitudinally mounted single-cylinder four-stroke
Five-speed ATV-style semi-automatic with reverse
Independent double-wishbone; 5.1-inch travel
Swingarm with single shock; 4.9-inch travel
31.2 inches
Transferable, limited warranty. One year included.
Engine
| Engine Type | 229cc air-cooled longitudinally mounted single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 68.5mm x 62.2mm |
| Compression Ratio | 9.2:1 |
| Induction | OHV; two valves per cylinder |
| Induction | 22mm piston-valve carburetor |
| Starter | Electric with optional auxiliary recoil |
Drivetrain
| Transmission | Five-speed ATV-style semi-automatic with reverse |
|---|---|
| Driveline | Direct rear driveshaft |
Chassis Suspension Brakes
| Front Suspension | Independent double-wishbone; 5.1-inch travel |
|---|---|
| Rear Suspension | Swingarm with single shock; 4.9-inch travel |
| Front Brakes | Dual 130mm drums |
| Rear Brake | 140mm drum |
| Front Tires | 22 x 7-11 |
| Rear Tires | 22 x 10-9 |
Dimensions
| Length | 75.0 inches |
|---|---|
| Width | 40.7 inches |
| Height | 42.1 inches |
| Wheelbase | 44.5 inches |
| Seat Height | 31.2 inches |
| Ground Clearance | 6.0 inches |
| Turning Radius | 8.5 feet |
| Curb Weight | 437 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 2.4 gallons |
| Front Rack Capacity | 33.0 pounds |
| Rear Rack Capacity | 66.0 pounds |
| Towing Capacity | 500.0 pounds |
Other
| Available Colors | Hero Red, Black Forest Green |
|---|---|
| Model ID | TRX250TM |
| Emissions | Meets current EPA off-road emissions standards. Not available in California or for California use. |
| Important Safety Information | Recommended for riders 16 years of age and older. Honda recommends that all ATV riders take a training course and read their owner's manual thoroughly. |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Light on weight, heavy on ability
Semi-dry-sump engine design
The overhead-valve, semi-dry-sump design creates a compact and lightweight engine that improves handling by lowering the center of gravity and increasing ground clearance.
Longitudinal engine layout
By orienting the engine front to back in the chassis, we route the power flow straight to the wheels without any unnecessary right-angle detours. This reduces powertrain friction and puts more grunt to the ground.
Effortless electric starting
Starting the engine is easy, even in cold weather, with a key turn and a button push. A backup recoil starting system is included for added confidence.
Shaft drive
The shaft drive is clean, low-maintenance, and efficient. Perfect for high-mileage riders, it eliminates the need for lubrication or adjustment at home or on the trail.
Sized to fit your life
Reverse mechanism and parking brake
Mounted on the left bar, alongside the parking brake, the reverse lever is easily accessible without requiring you to take your hands off the handlebars.
Comfortable seat
A thick foam seat with a rugged cover is designed for all-day comfort and support.
Unique floorboard design
The floorboards are designed to prevent mud and debris while providing a good grip on the rider's feet.
Steel cargo racks
Front and rear cargo racks feature rugged steel construction and can carry a maximum of 33 pounds (front) and 66 pounds (rear).
LED taillight and brakelight
The taillight and brakelight are both LED, designed to last long and offer strong, dependable lighting.
Related trims and models

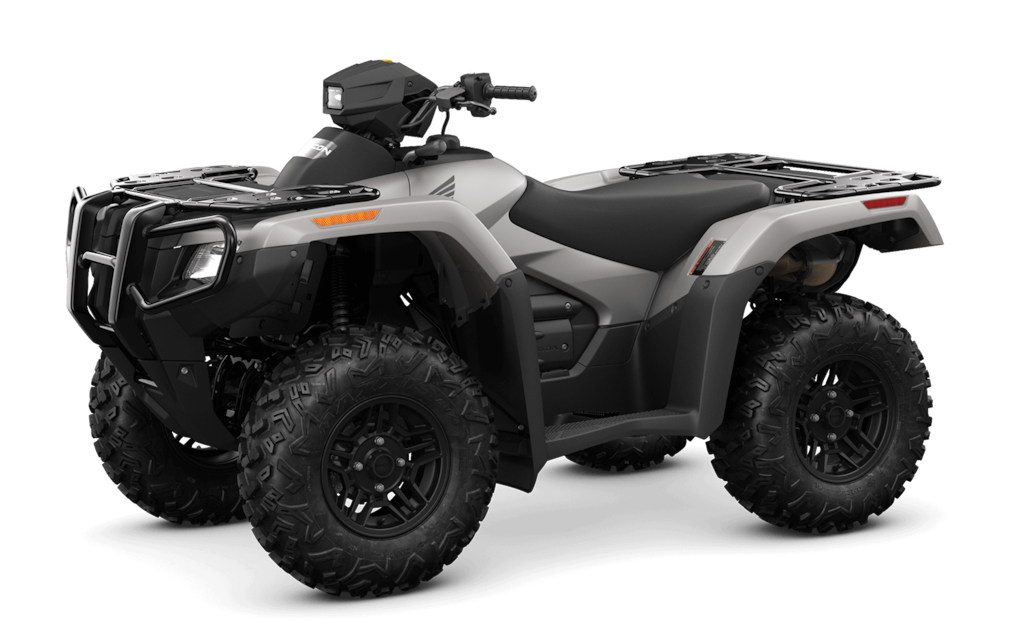

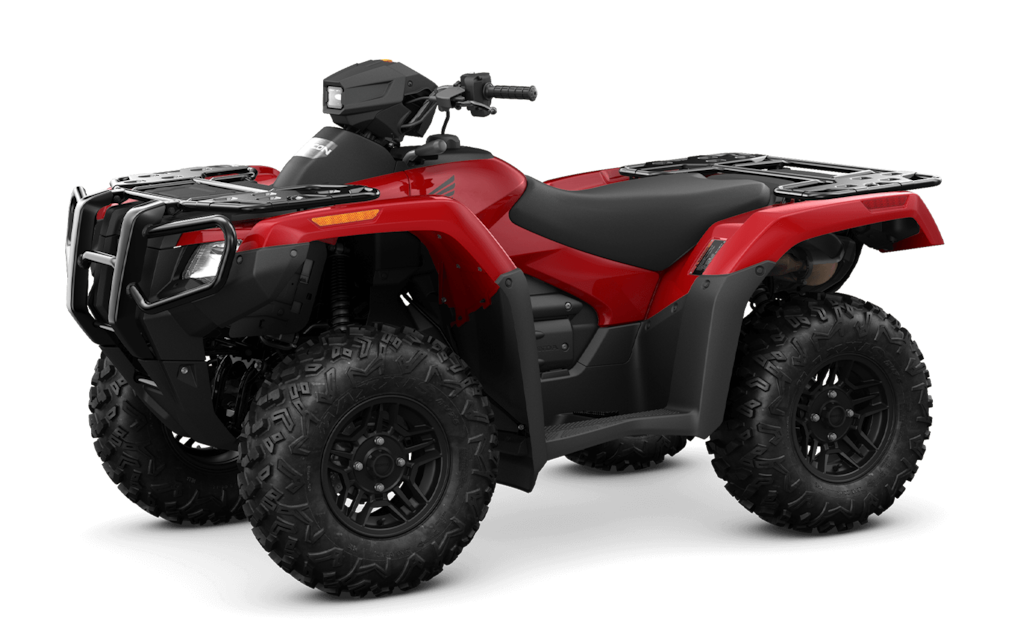

FourTrax Rubicon 700 4x4 Automatic
Base MSRP TBD* Destination Charge: $620.00
Total MSRP TBD*
- 675cc liquid-cooled single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- 26-inch tires
- Tough front bumper
- Integrated storage
FourTrax Foreman Rubicon 4x4 Automatic DCT EPS
Base MSRP $10,499* Destination Charge: $620.00
Total MSRP $11,119*
- 518cc liquid-cooled single-cylinder four-stroke engine
- Automatic Dual Clutch Transmission (DCT)
- Electric Power Steering
- 1322-pound towing capacity
- Ultra comfortable seat
FourTrax Foreman Rubicon 4x4 Automatic DCT EPS Deluxe
Base MSRP $10,999* Destination Charge: $620.00
Total MSRP $11,619*
- 518cc liquid-cooled single-cylinder four-stroke engine
- Automatic Dual Clutch Transmission (DCT)
- Electric Power Steering
- Ultra comfortable seat
- Contrast-cut aluminum wheels

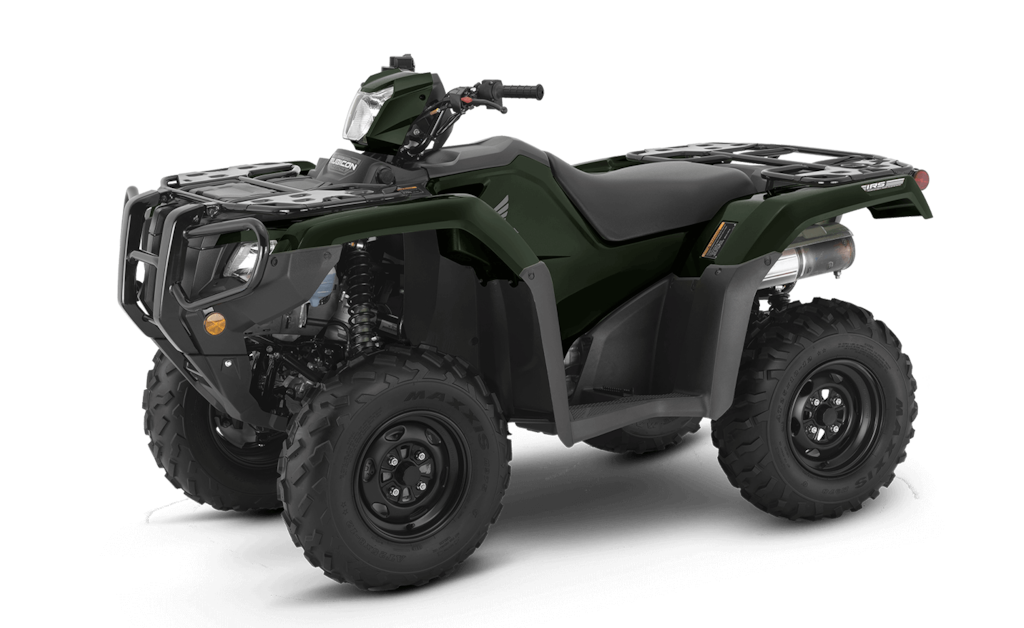

FourTrax Foreman Rubicon 4x4 EPS
Base MSRP $9,799* Destination Charge: $620.00
Total MSRP $10,419*
- 518cc liquid-cooled single-cylinder four-stroke engine
- Electric Power Steering
- Front and rear preload-adjustable suspension
- 1322-pound towing capacity
- Ultra comfortable seat

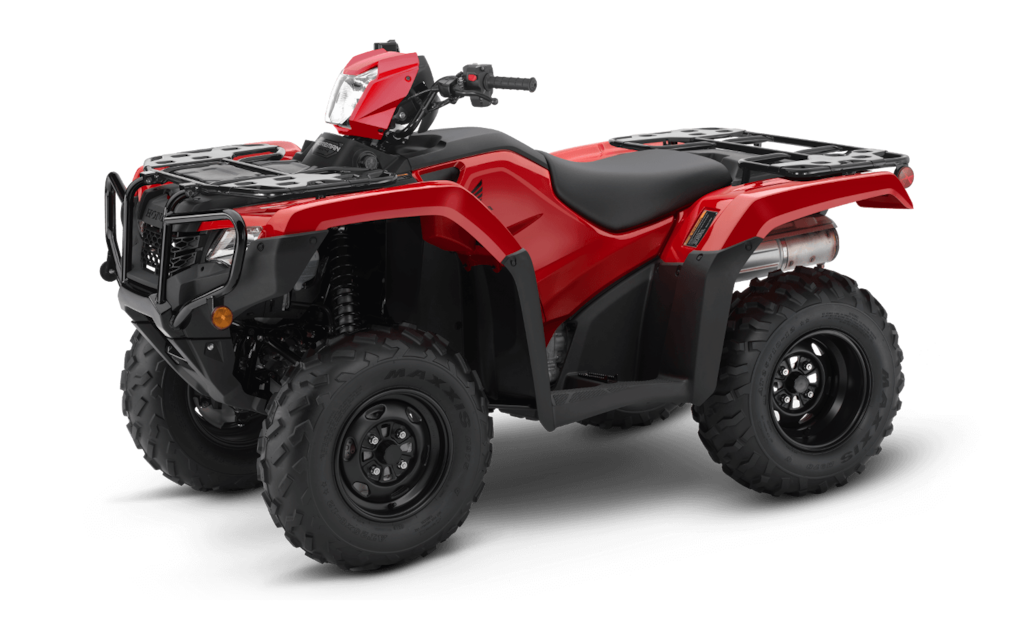

FourTrax Foreman 4x4
Base MSRP $8,249* Destination Charge: $620.00
Total MSRP $8,869*
- 518cc liquid-cooled single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Swingarm rear suspension
- Torque-biasing front differential
- Superior cargo capacity
FourTrax Foreman 4x4 EPS
Base MSRP $9,099* Destination Charge: $620.00
Total MSRP $9,719*
- Electric Power Steering (EPS)
- 518cc liquid-cooled single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Swingarm rear suspension
- Ample cargo capacity

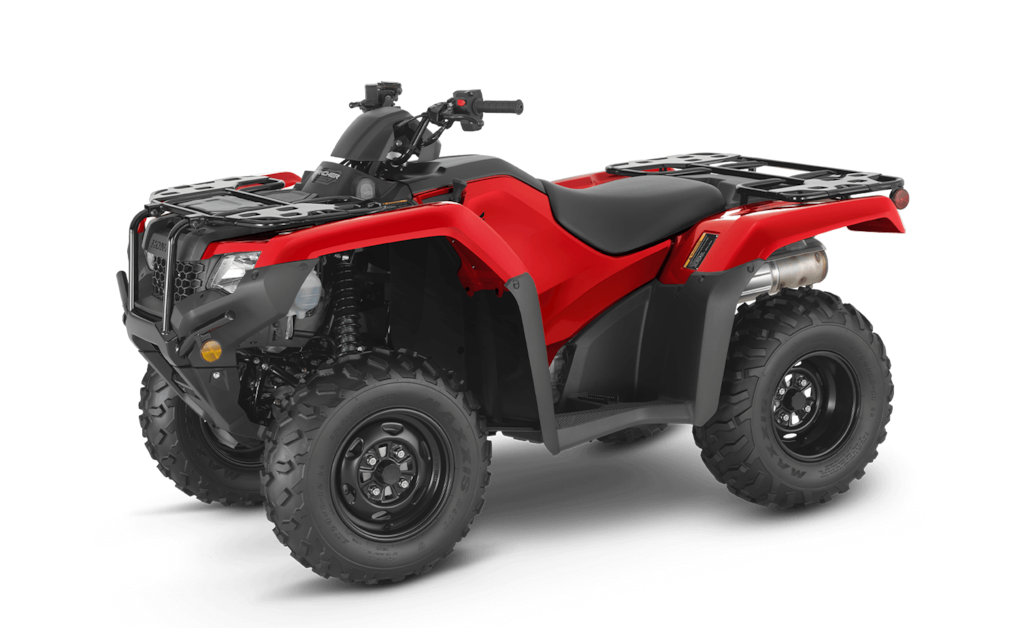

FourTrax Rancher
Base MSRP $6,299* Destination Charge: $620.00
Total MSRP $6,919*
- 420cc liquid-cooled OHV single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Swingarm rear suspension
- Variety of color choices
- Comfortable seat
FourTrax Rancher 4x4
Base MSRP $7,399* Destination Charge: $620.00
Total MSRP $8,019*
- 420cc liquid-cooled OHV single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Selectable four-wheel drive
- Swingarm rear suspension
- Comfortable seat
FourTrax Rancher 4x4 Automatic DCT IRS EPS
Base MSRP $9,149* Destination Charge: $620.00
Total MSRP $9,769*
- 420cc liquid-cooled OHV single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Automatic Dual-Clutch Transmission
- Independent Rear Suspension
- Electric Power Steering

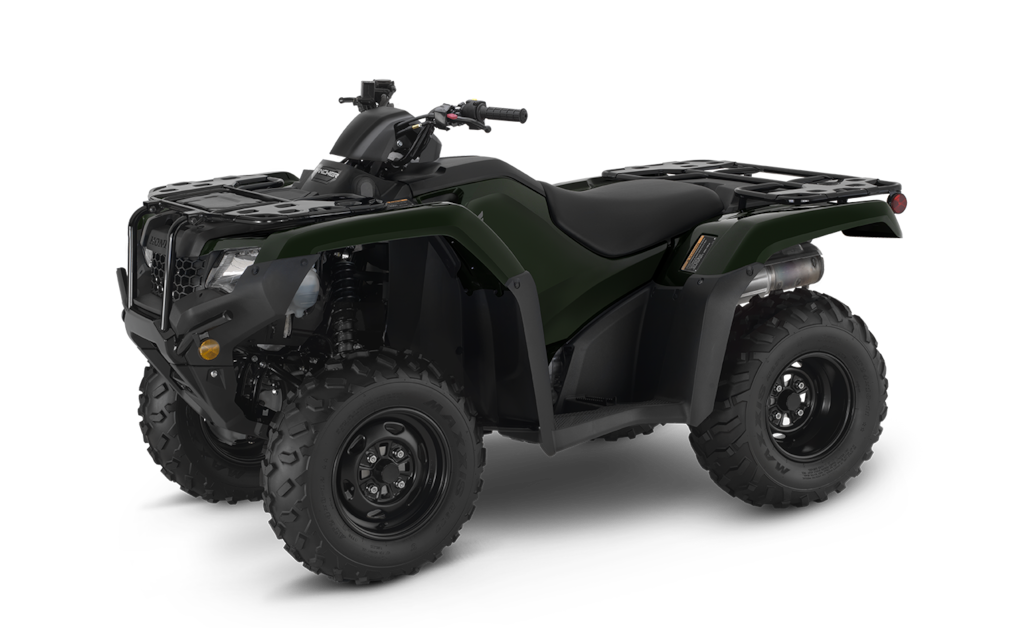

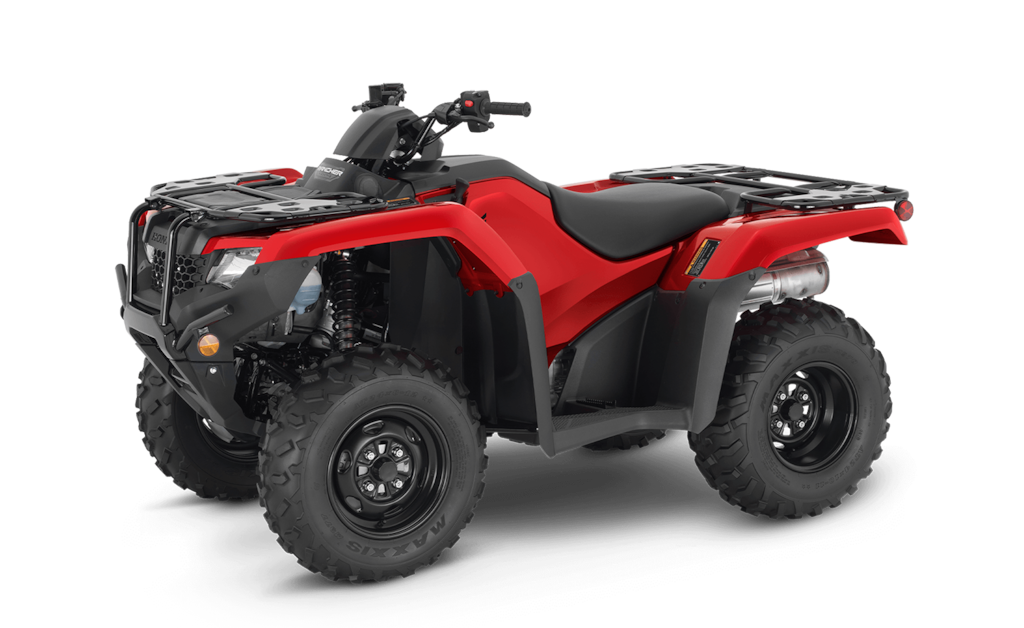

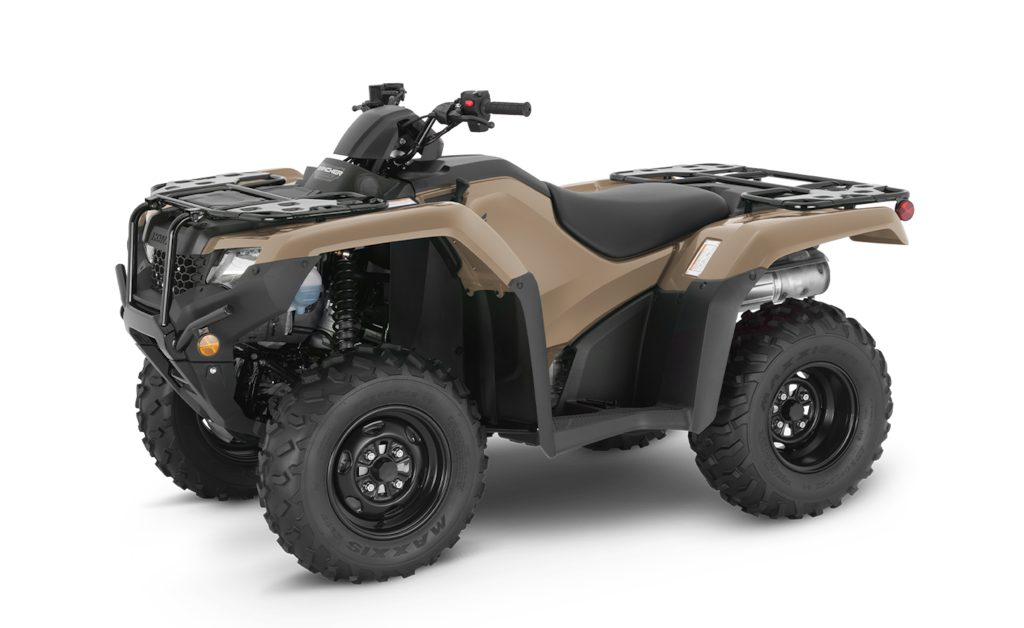

FourTrax Rancher 4x4 Automatic DCT EPS
Base MSRP $8,649* Destination Charge: $620.00
Total MSRP $9,269*
- 420cc liquid-cooled OHV single-cylinder engine
- Programmed Fuel Injection (PGM-FI)
- Automatic Dual-Clutch Transmission
- Electric Power Steering
- Selectable four-wheel drive
FourTrax Recon
Base MSRP TBD* Destination Charge: $620.00
Total MSRP TBD*
- 229cc air-cooled single-cylinder engine
- Semi-dry-sump engine design
- Longitudinal engine layout
- Integrated floorboard design with steel cleats
- Rugged steel front and rear racks

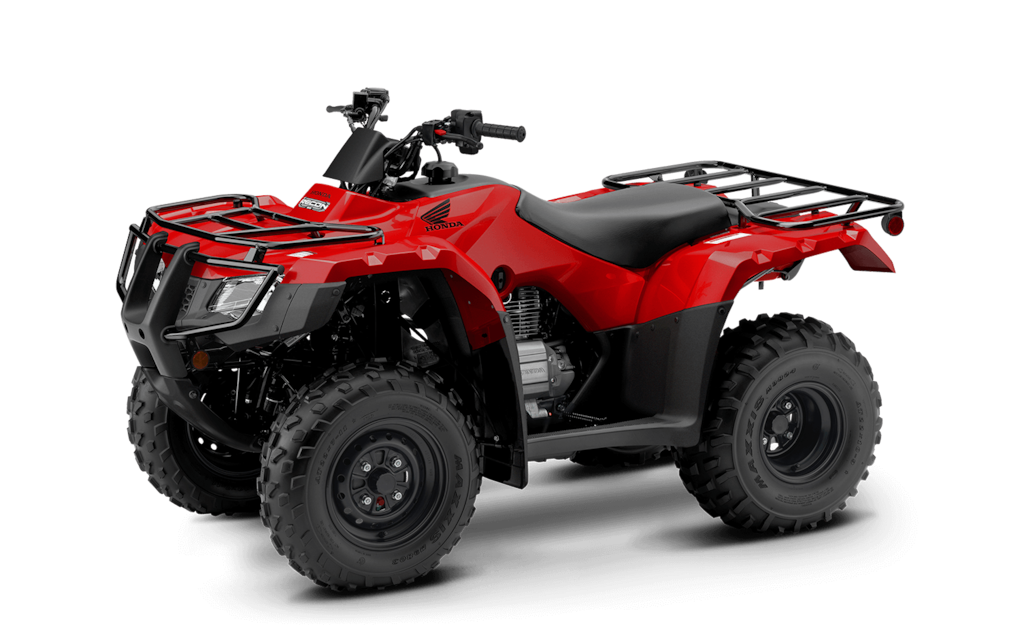

FourTrax Recon ES
