With a new engine that’s both bigger and more powerful than our Pioneer 500’s, the new Pioneer 520 also features electronic fuel injection for effortless cold-weather and high-altitude operation. The engine is specially tuned for low-rpm torque, too. Coupled with an efficient five-speed automatic transmission, you’ll have plenty of pulling power.

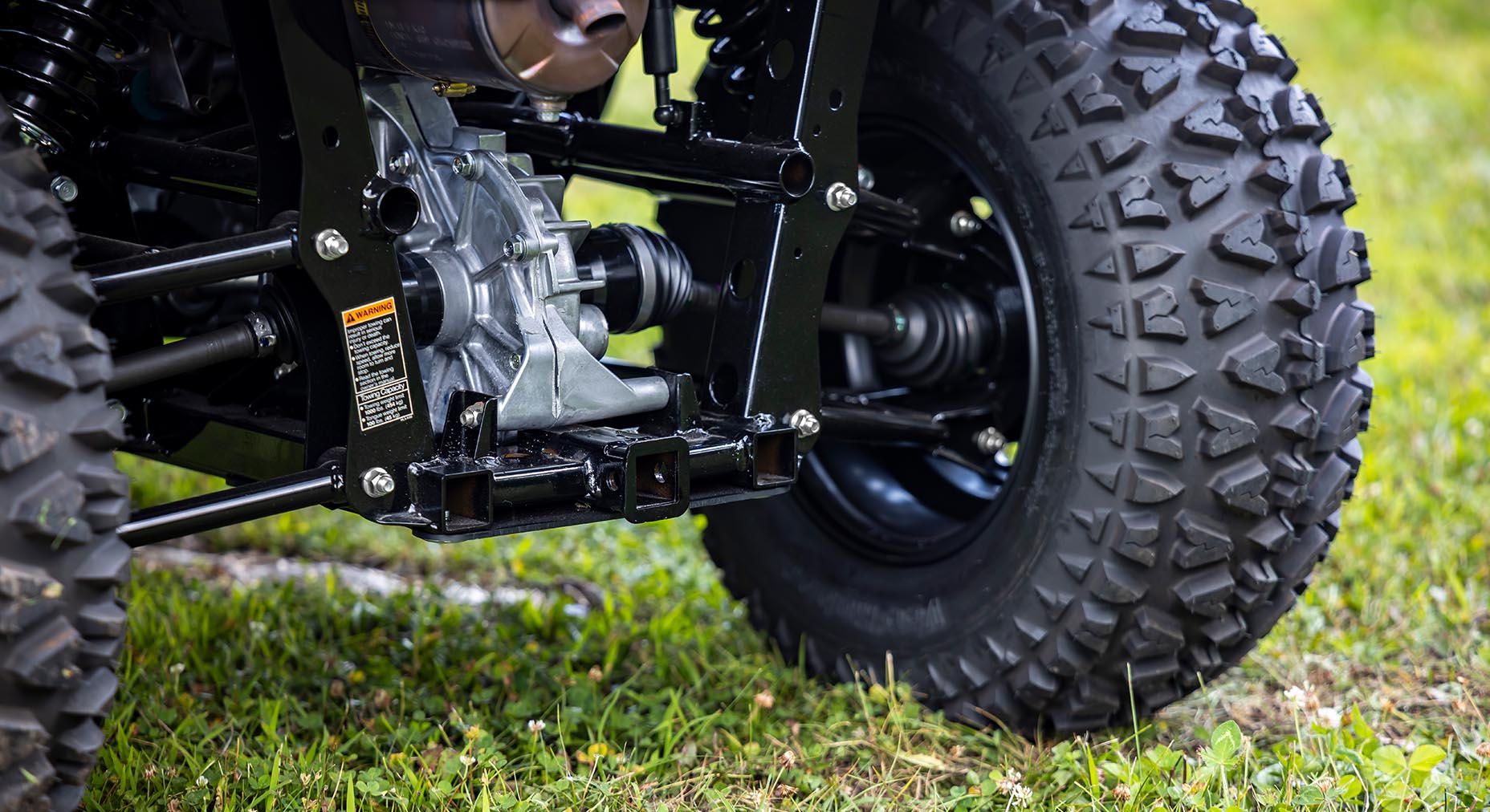

The Pioneer 520 has a heavy-duty receiver-style hitch and 1000-pound towing capacity.

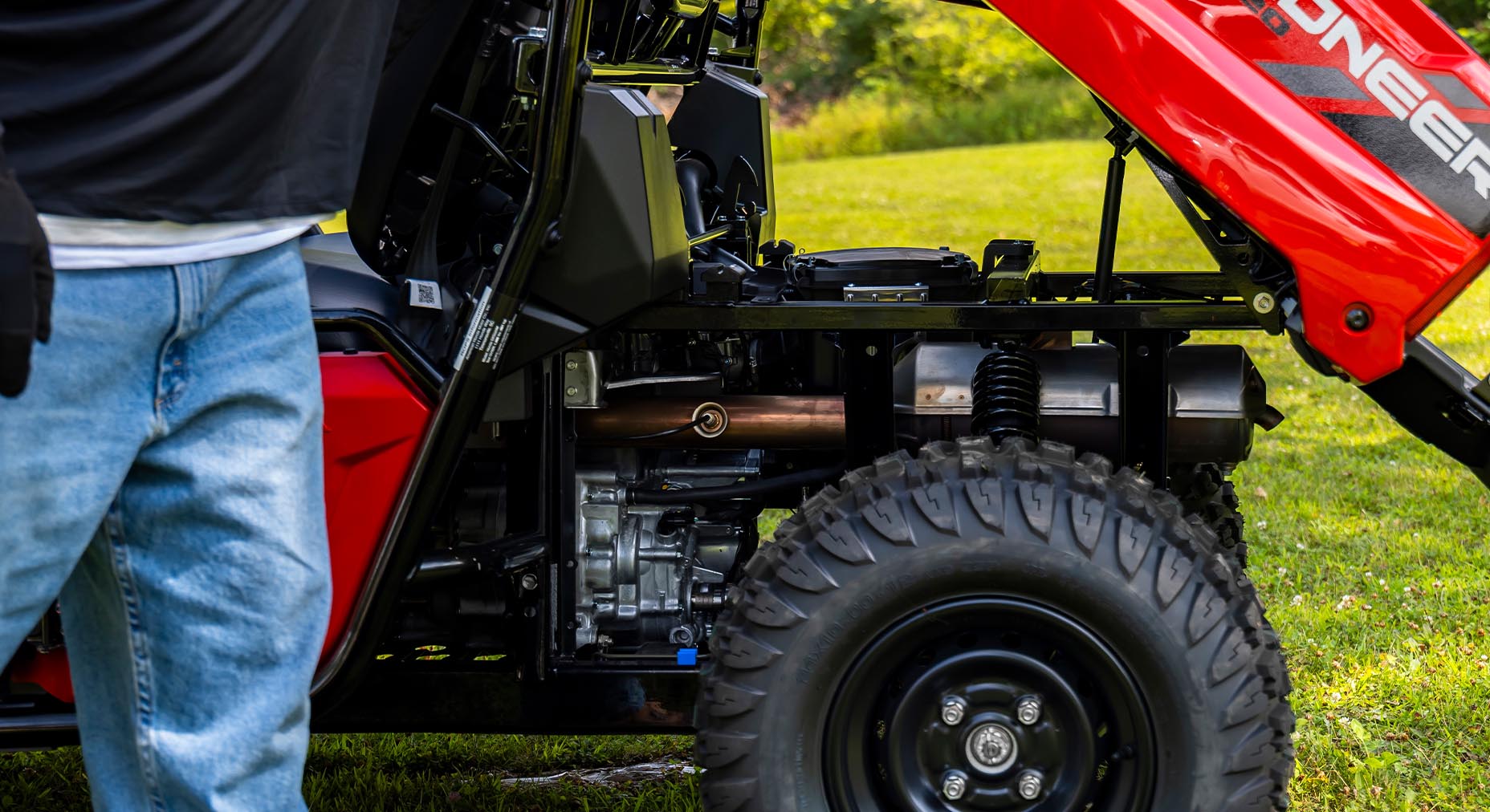

Better cold-weather and high-altitude running, effortless startups, great fuel efficiency and less pollution—that’s what the Pioneer 520’s “closed loop” fuel-injection system means for you. And that’s what we call a win/win situation.

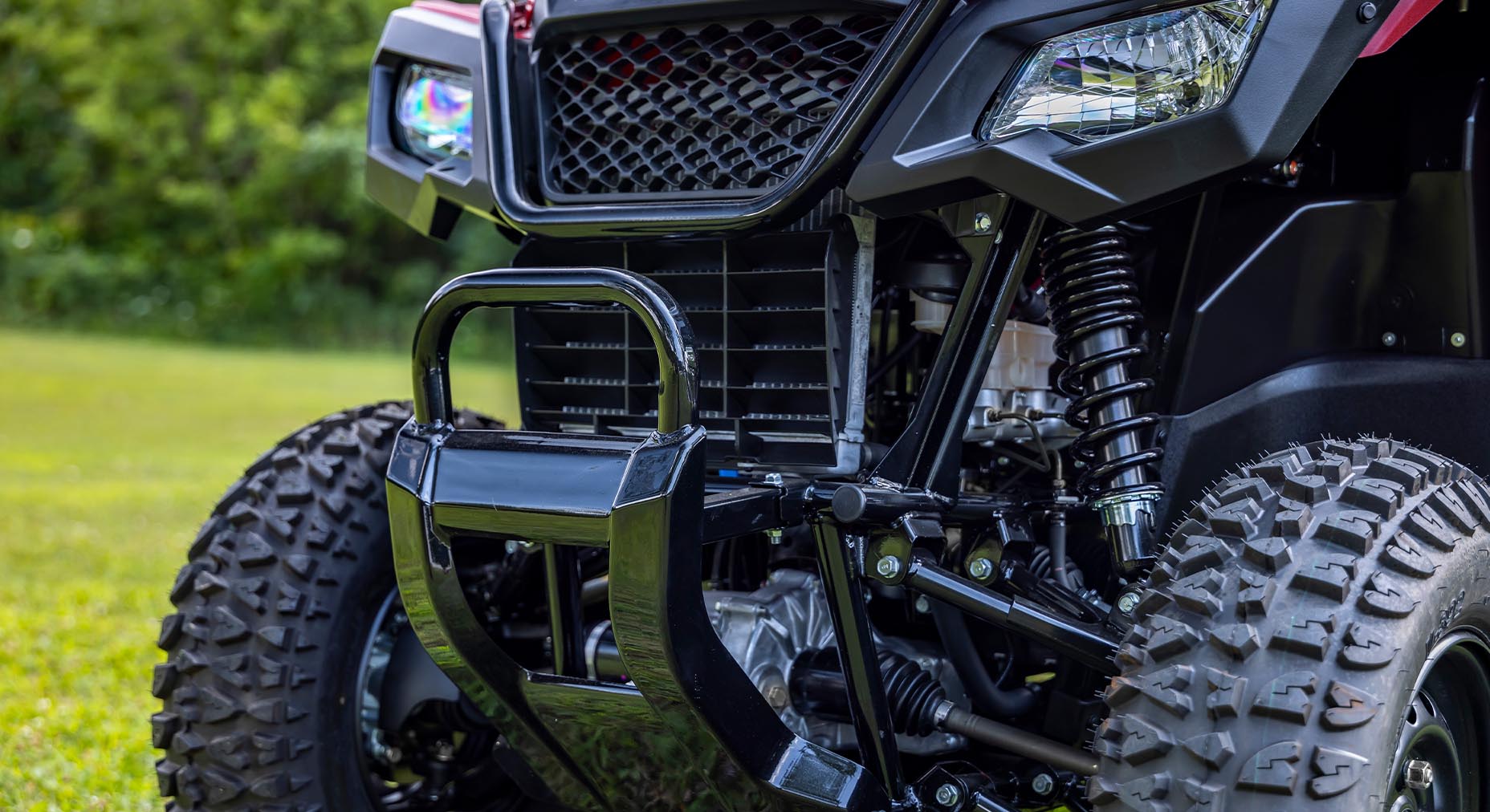

Our time-tested Honda engine is liquid-cooled, which provides more consistent operating temperatures and more power than a comparable air-cooled motor. This adds up to better performance and longer engine life.

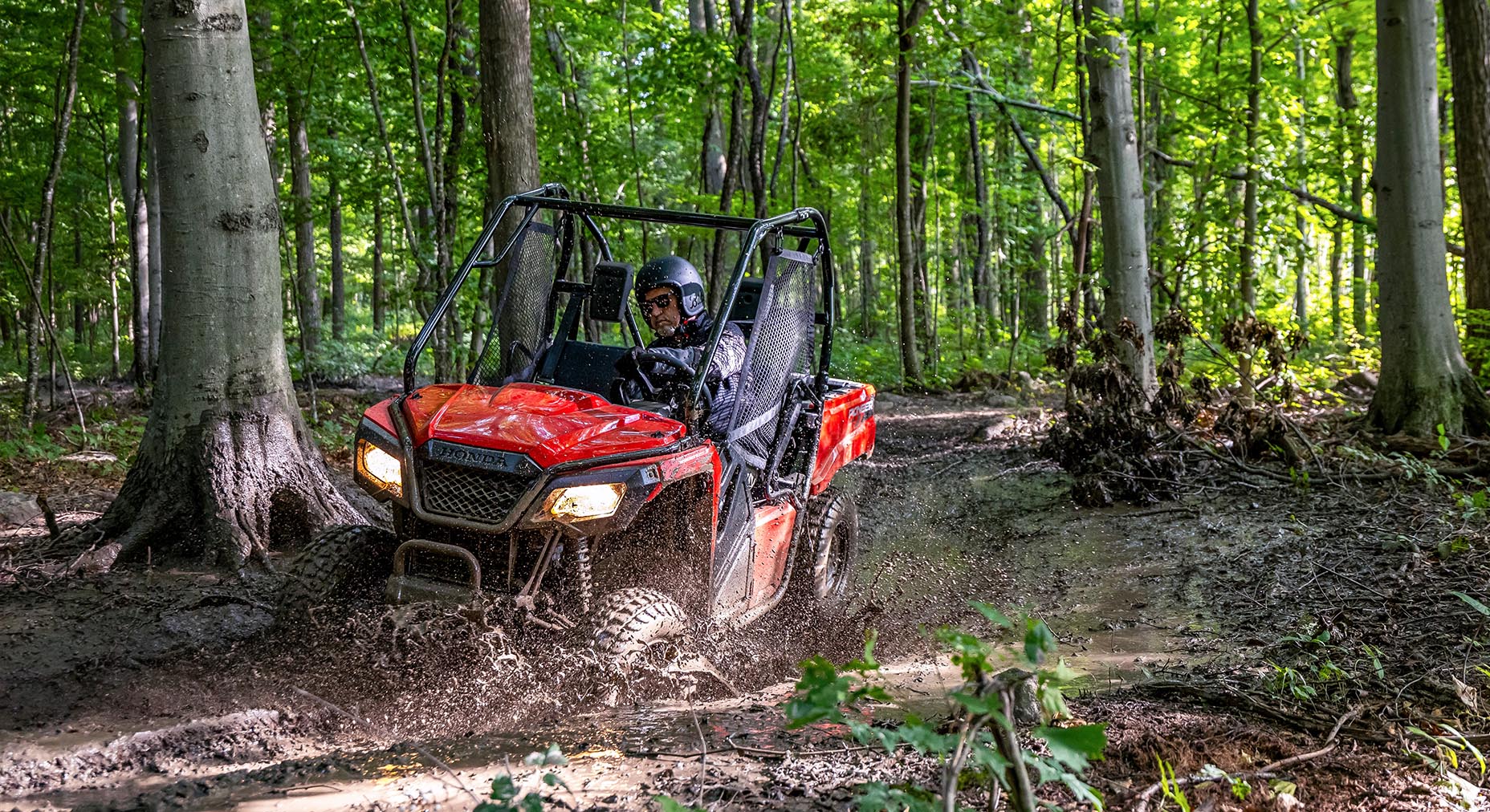

The Pioneer 520 is built around our strong, single-cylinder, 518cc longitudinal engine. By orienting the crankshaft front to back in the chassis, we route the flow of power straight to the wheels without any right-angle detours, reducing powertrain friction and putting more grunt to the ground.
Compact and lighter weight, the Pioneer 520’s overhead-valve, semi-dry-sump design creates an engine that's not only shorter from top to bottom, but one that enhances handling with a low center of gravity and favorable ground clearance.

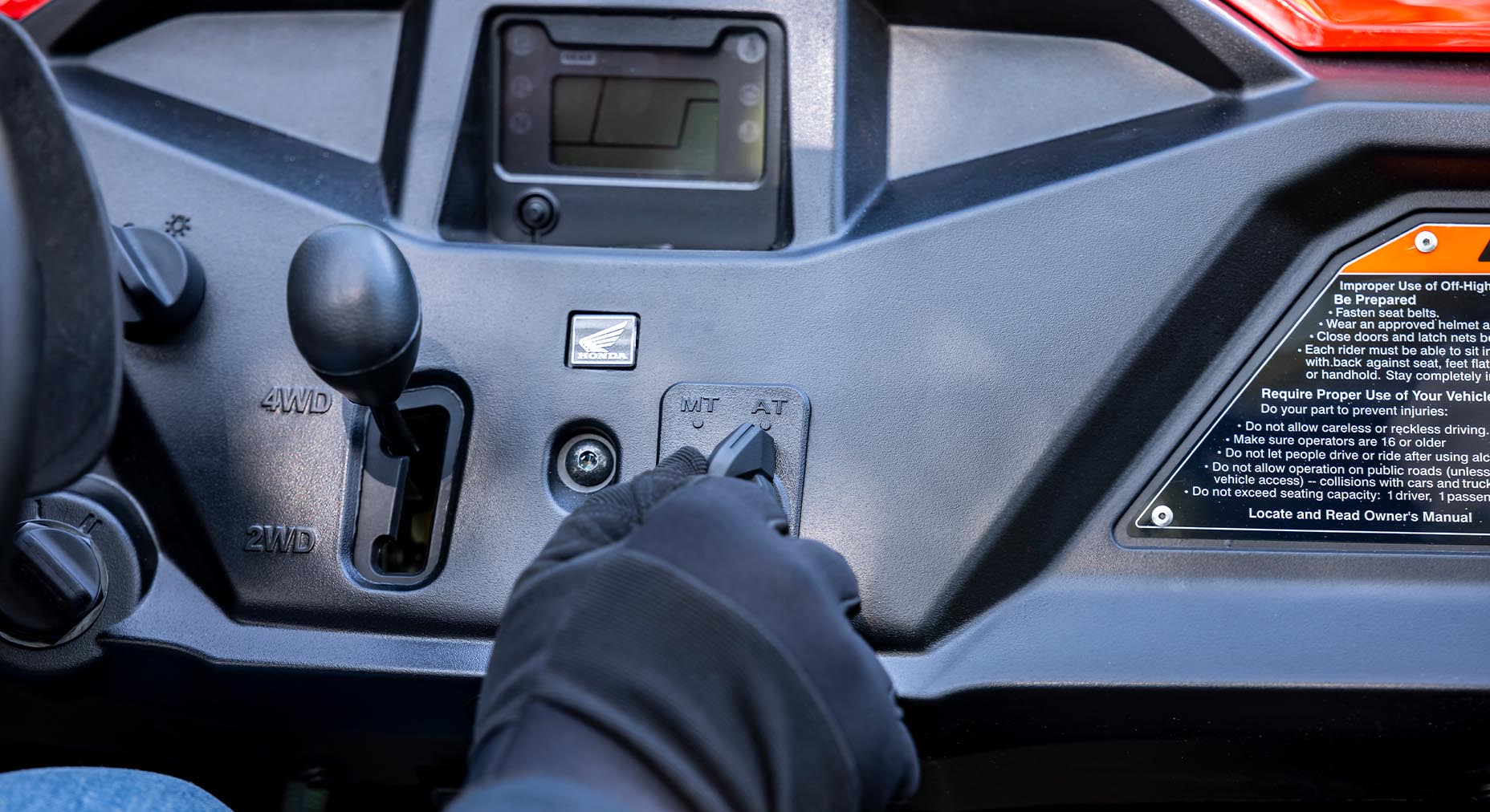

You can let the Honda Pioneer 520’s automatic transmission shift for you, or you can still shift yourself with its paddle shifters. You can even shift from auto to manual (AT to MT) on the fly!

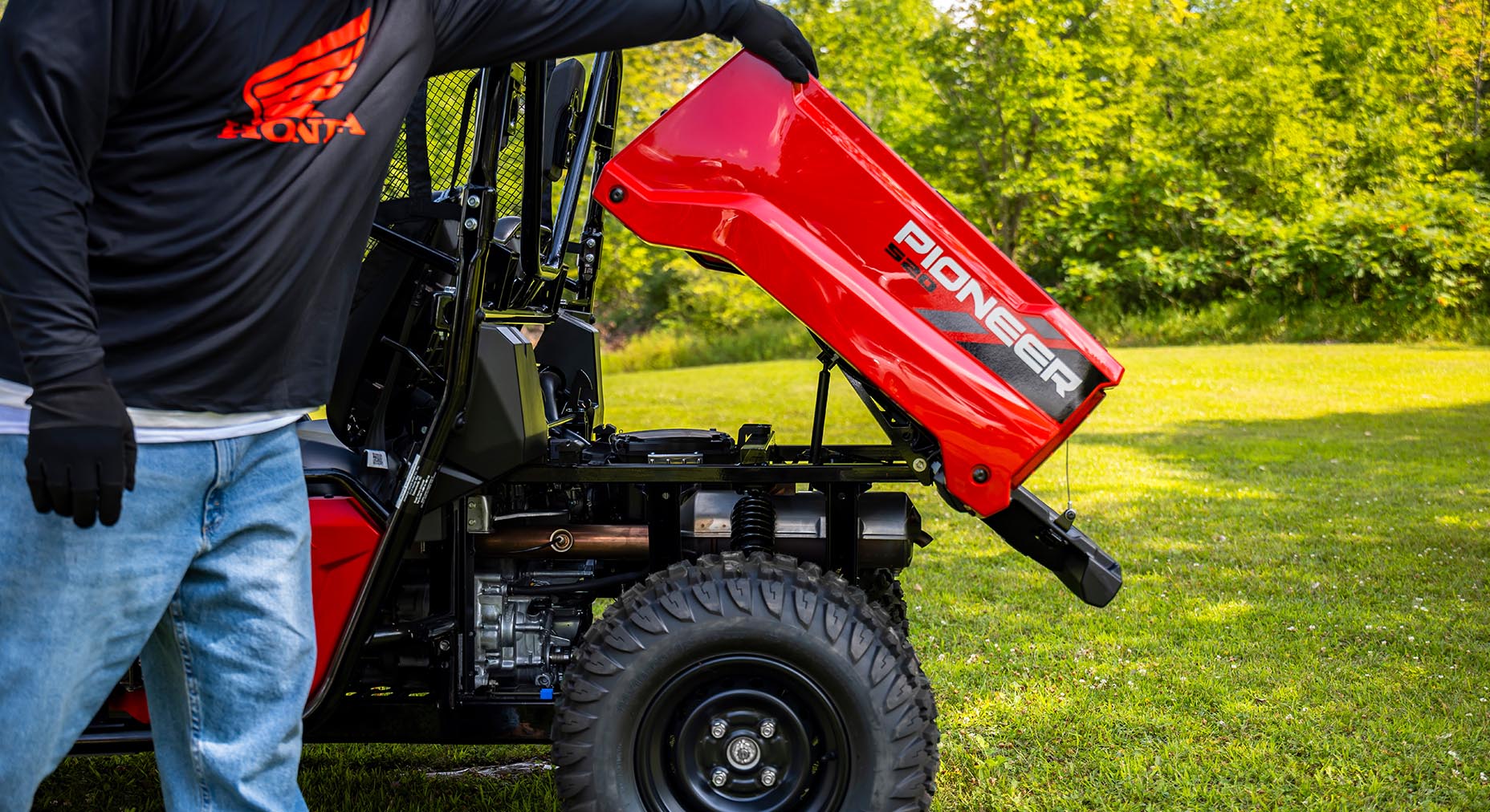

The new Pioneer 520 now features a super-convenient tilt/dump bed. Measuring 38.7 inches wide, 25.9 inches long and 9.8 inches high, it can carry up to 450 pounds. An assist strut makes dumping easy, the tailgate opens flat, and inside the bed is set up for plywood dividers, or to hold milk crates or plastic buckets. It also accommodates our line of Honda Pro-Connect™ system accessories.
Big job? Smaller jobs? Bring ‘em on! When it comes to earning its keep, the new Pioneer 520 punches way above its weight, thanks to its 450-pound bed capacity, 1000-pound towing capacity, and TraxLok 2WD/4WD system.

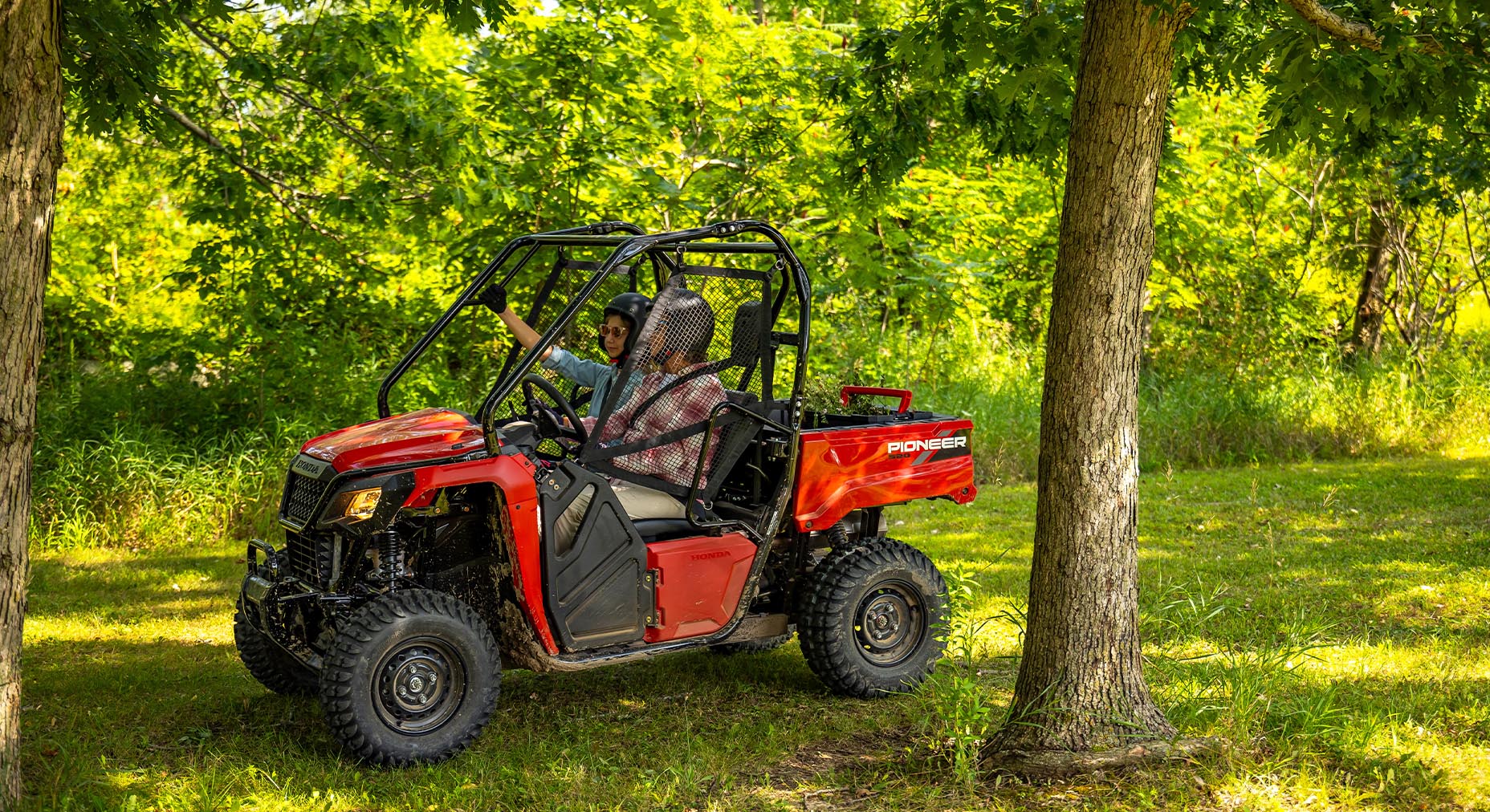

We have a full line of accessories ready for the new Pioneer 520—over 60 of them. Everything from winches to windscreens, cargo boxes to chainsaw mounts, covers to roofs, and much more. And the Pioneer 520 is set up to work with our super-convenient Honda Pro-Connect™ system, so configuration is fast and easy.
35-watt headlights provide clean, crisp light to get you through any adventure, day or night.
The Pioneer 520’s 50-inch overall width is a huge bonus, whether it’s for width-restricted trails or convenient transportation and storage (it fits into the bed of most full-sized pickups). Plus, our rock-solid Traxlok system lets you choose either 2WD or 4WD, giving you the freedom to choose between lighter steering (in 2WD) and maximizing available traction (in 4WD) when you need it most.

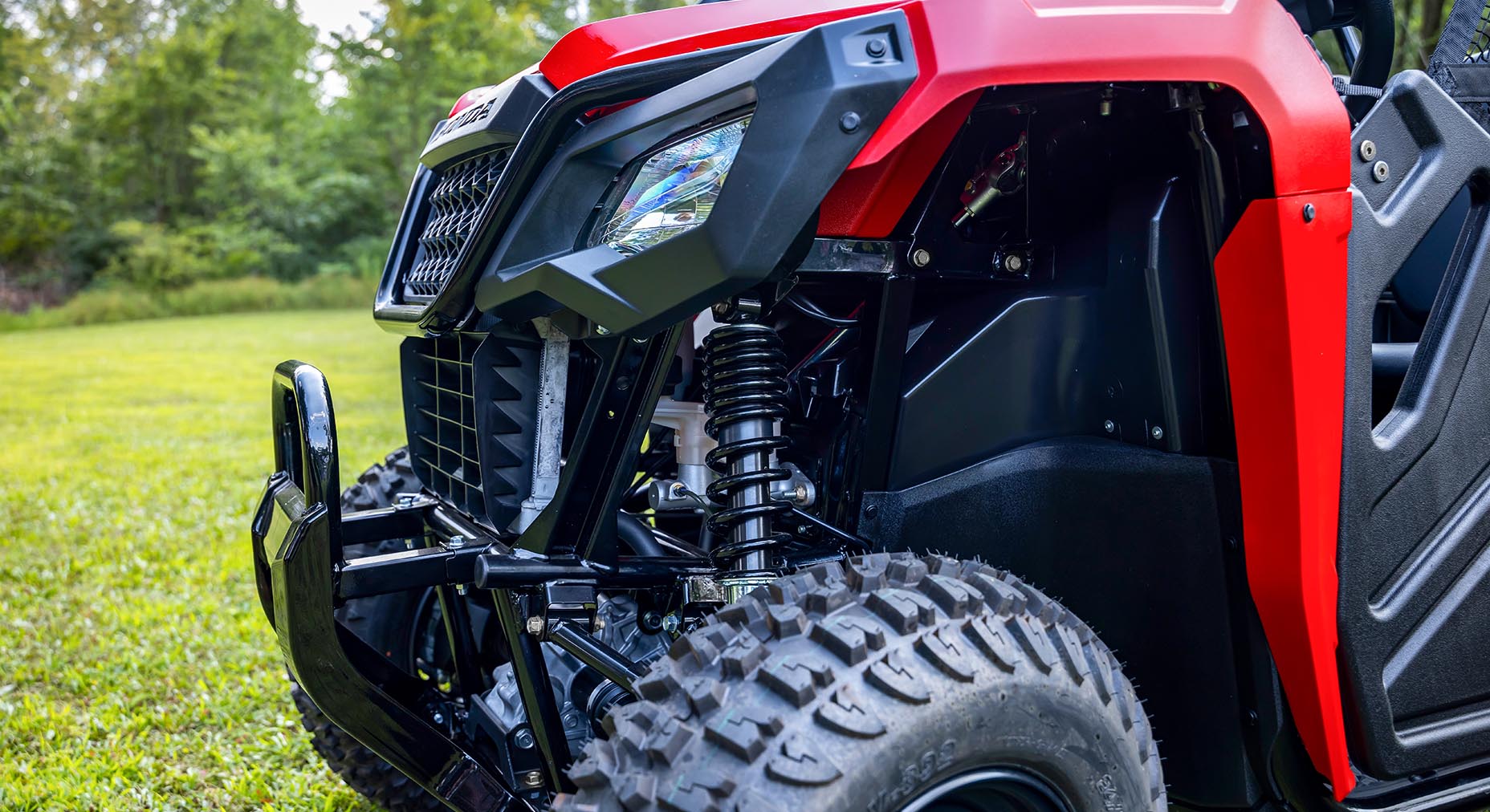

A spring is a spring, right? Sure, all springs may look alike, but the Pioneer 520 features dual-rate springs, and after one ride you’ll feel the difference. You get a smoother ride over smaller bumps with more bottoming resistance on bigger bumps, along with a more confident steering feel.
With 5.9 inches of travel at both the front and rear wheels and 8.5 inches of ground clearance, the Pioneer 520 can negotiate rough trails with ease. Plus, we’ve tuned the suspension to give you a smooth, plush ride around the farm.

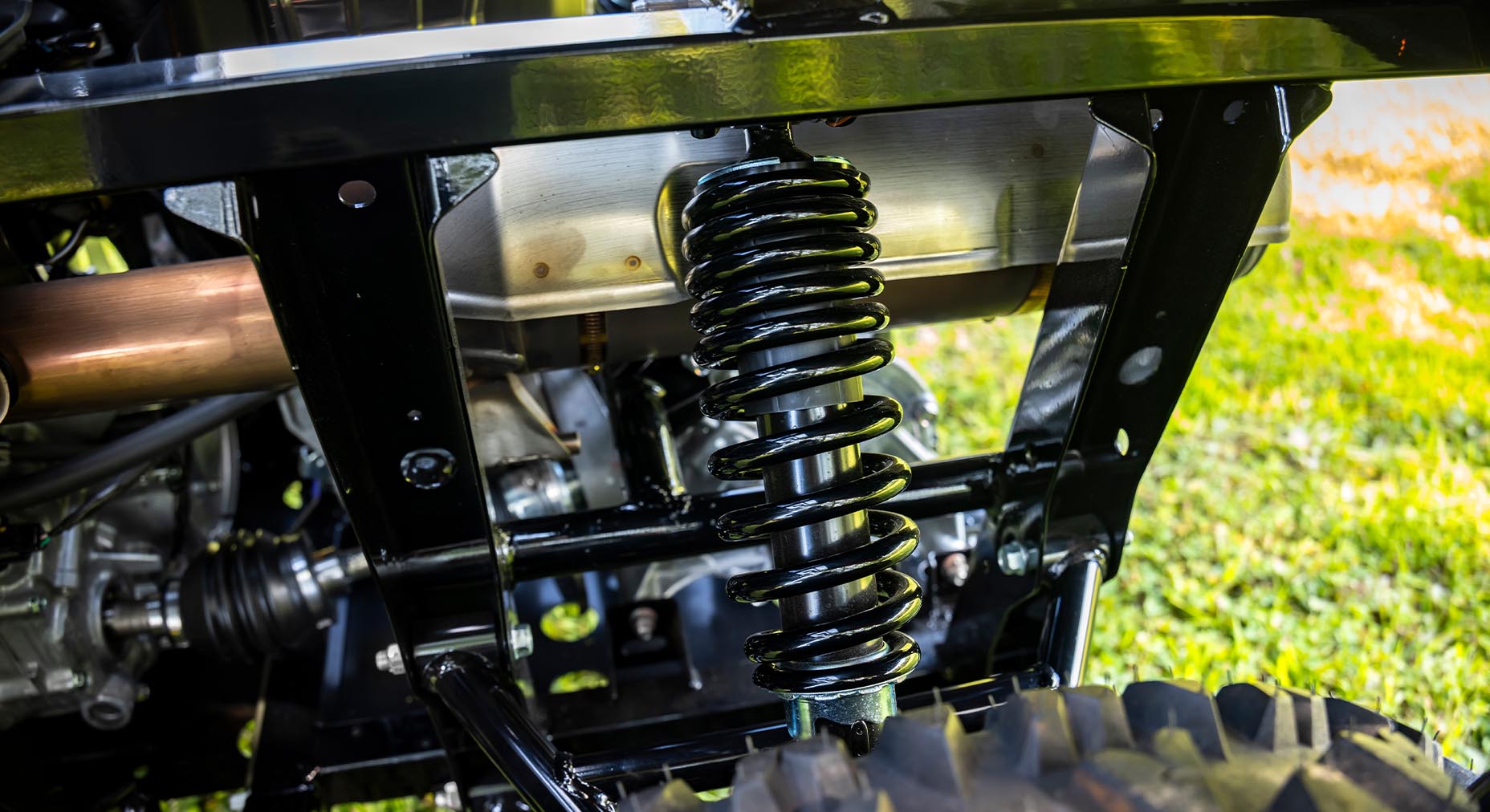

The Pioneer 520’s fully independent rear suspension means you get a smooth ride, especially over rough terrain.

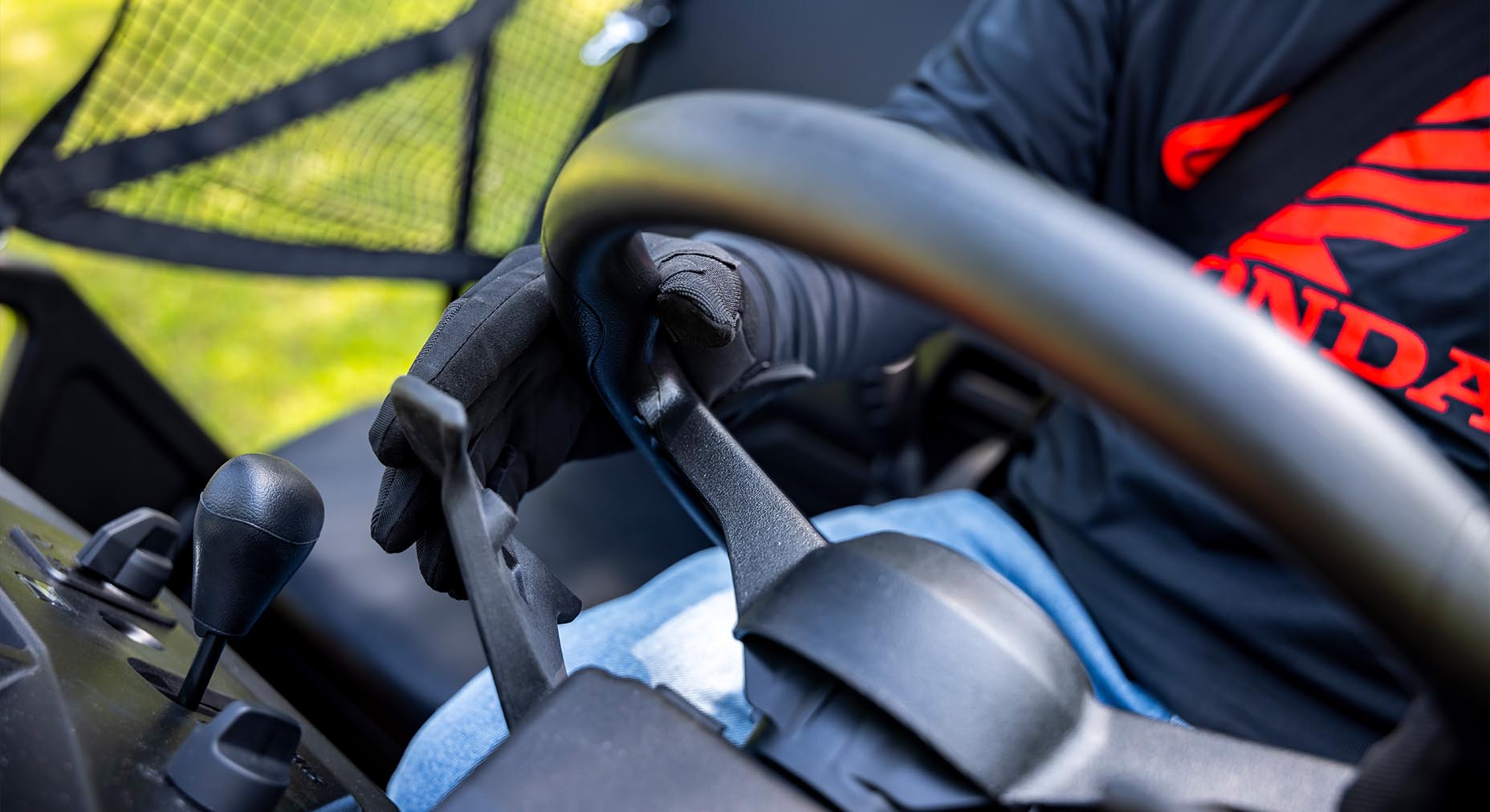

If you want to shift manually, simply upshift and downshift without ever having to take your hands off the wheel. You get to choose the exact gear you want, and it’s engineered for precise, smooth shifts.

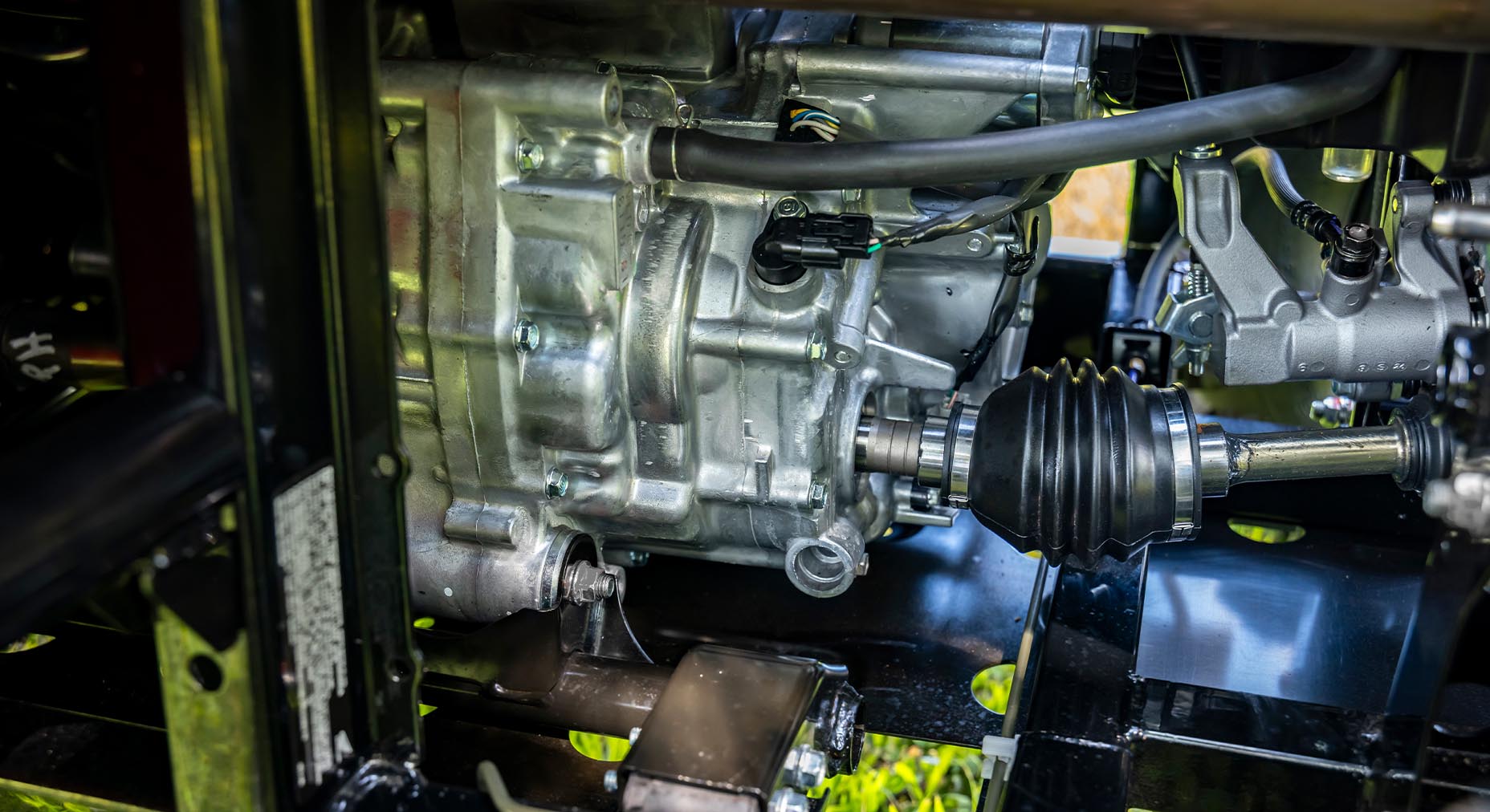

Unlike the belt-drive automatics out there, the Pioneer 520 features an AT/MT mode transmission that uses rugged, steel gears. You get true compression braking for superior controllability (especially when descending hills), as well as long transmission life.

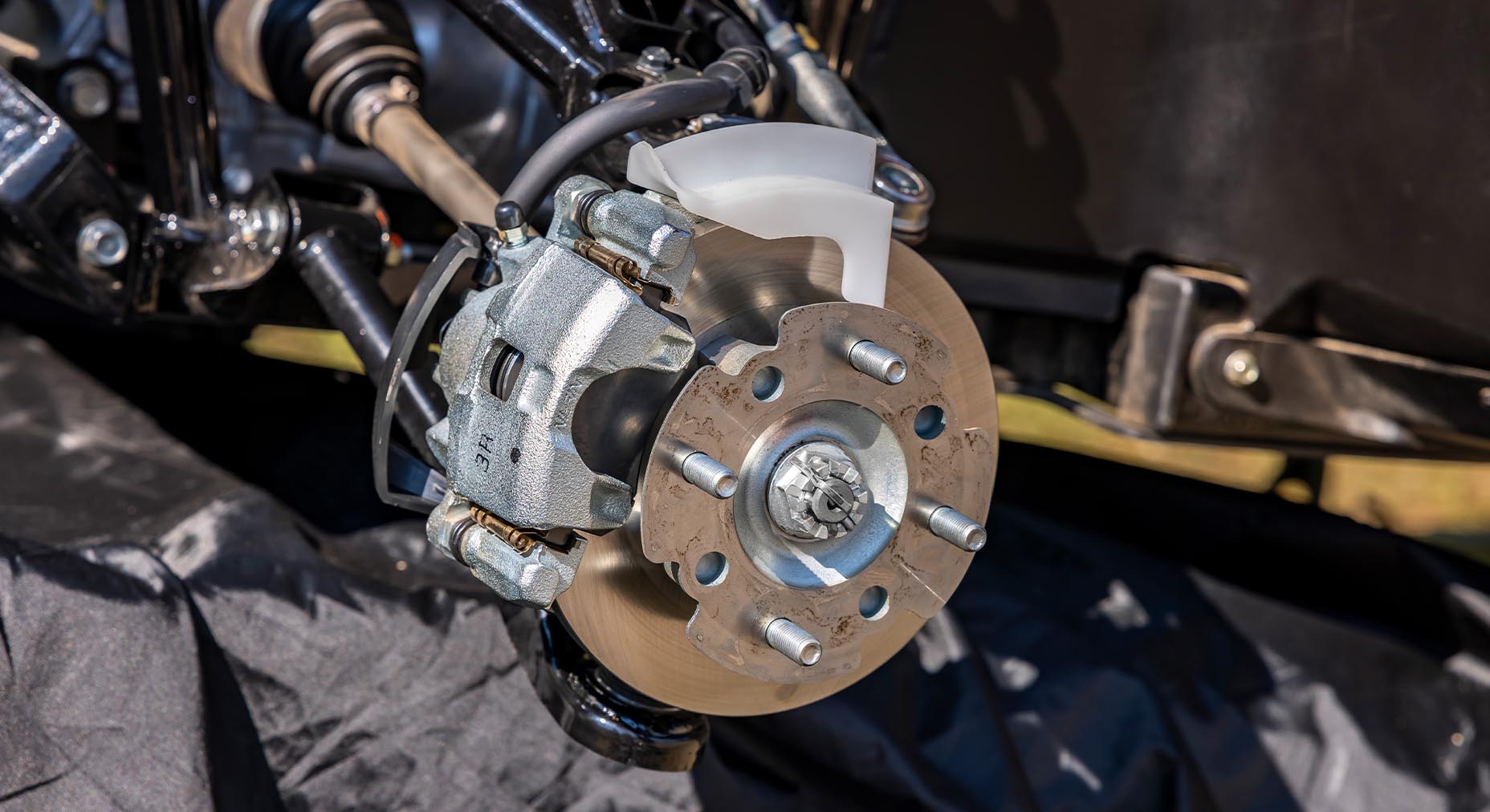

Disc brakes just make sense on a modern side-by-side, and that’s exactly why the new Pioneer 520 features them front and rear. They stop better, run cooler, are easier to maintain and are less susceptible to debris.
The Pioneer 520’s fully independent front and rear suspension means you get a smooth ride, especially over rough terrain.
To complement the new engine, we also gave the Pioneer 520 its own, new mapping. You’ll see how the shifts are smooth and the torque keeps flowing seamlessly, thanks to new clutch engagement specs. All in all it adds up to an even better ride for you.
With a comfortable bench-style seat, individual backrests and seatbelts for both rider and passenger, the Pioneer 520 offers side-by-side comfort and excellent maneuverability.

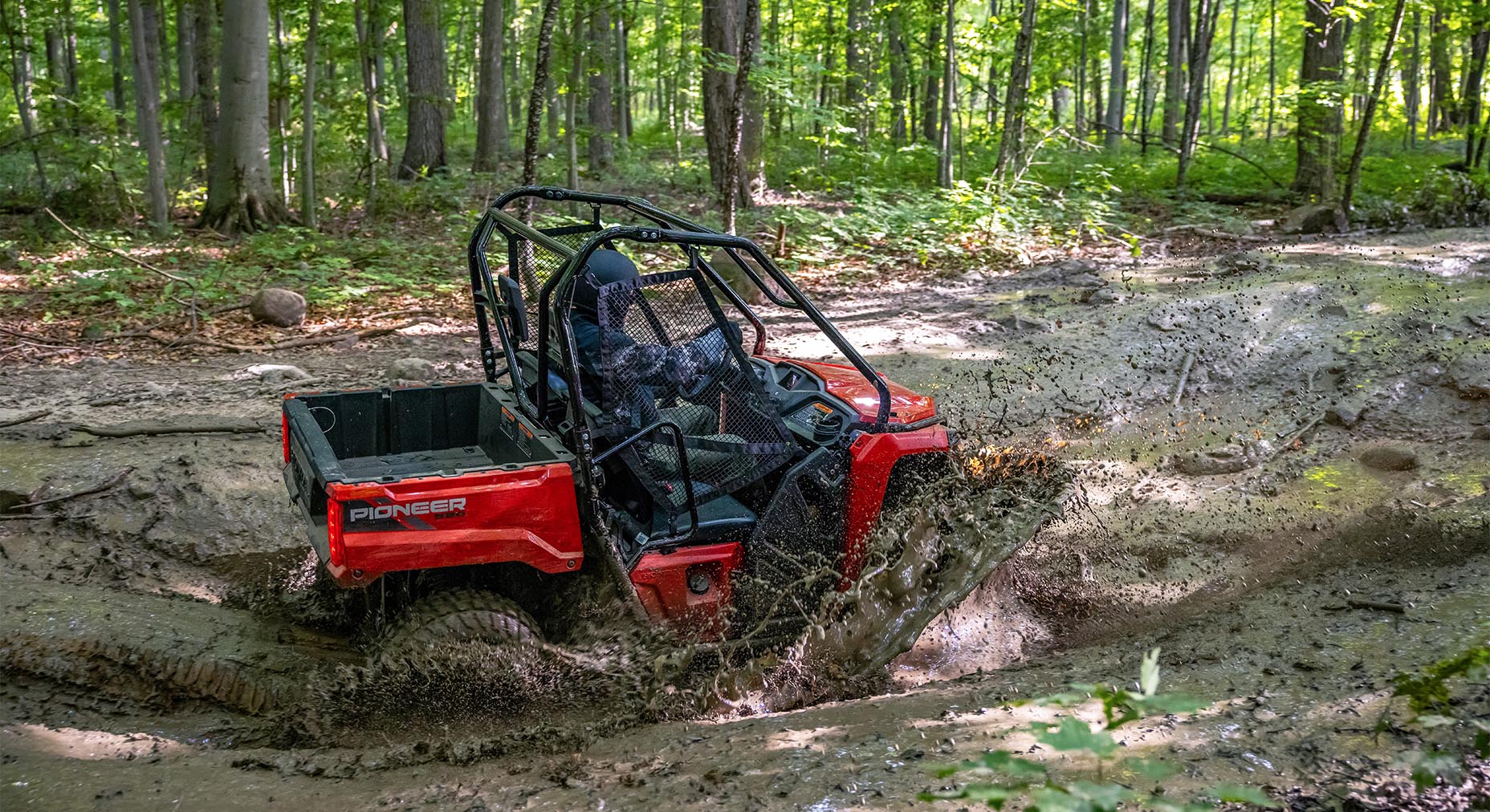

The Pioneer 520 is loaded with features to help provide a feeling of security for the driver and passengers. The Occupant Protection Structure uses sturdy, large-diameter tubing, and includes integrated handholds, recessed top tubes and a more spacious structure to enhance protection; it also meets OSHA’s 1928.53 rollover protective structure standard. Hard doors and roll-up side nets provide a secure feel and keep mud and debris out of the cabin, while automotive-style three-point belts with an Emergency Locking Retractor mechanism help keep everyone secure.

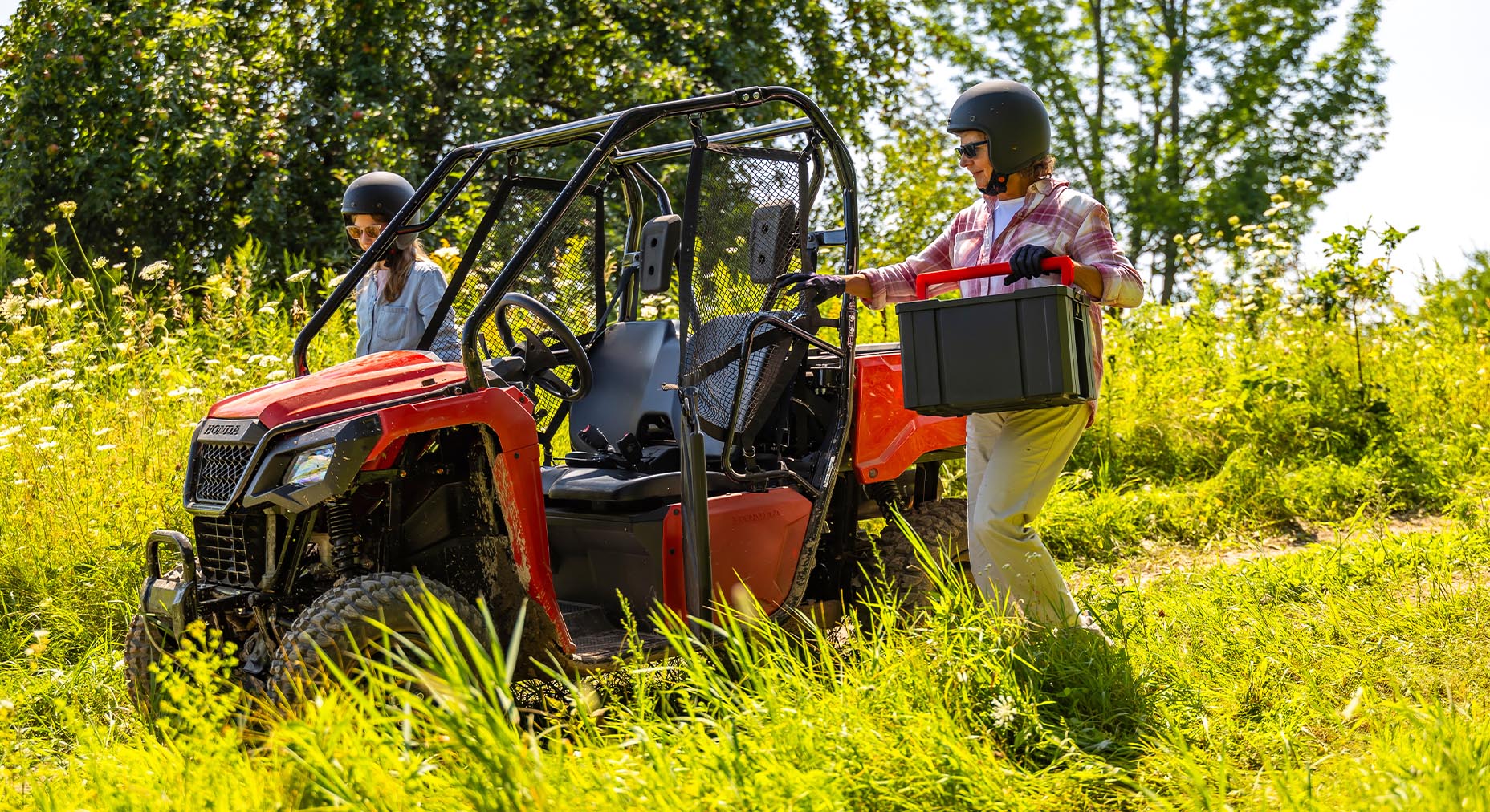

The Pioneer 520 comes standard with doors, and the occupant net is directly attached—just unlock and open the door, and the net automatically swings aside making entry and exit easier.
