ADV160
ADV160
Matte Black Metallic
Engine Type

157cc liquid-cooled single-cylinder four-stroke

Transmission

Automatic V-Matic belt drive

Front Suspension

31mm Showa® fork; 5.1-inch travel

Rear Suspension

Showa® dual shocks; 4.0-inch travel

Seat Height

30.7 inches

Warranty

Transferable, unlimited-mileage limited warranty. One year included.

Engine

Engine Type 157cc liquid-cooled single-cylinder four-stroke
Bore And Stroke 60.0mm x 55.5mm
Compression Ratio 12.0:1
Valve Train SOHC; four valves per cylinder
Induction Programmed Fuel-Injection system (PGM-FI); 28mm throttle body

Drivetrain

Transmission Automatic V-Matic belt drive

Chassis Suspension Brakes

Front Suspension 31mm Showa® fork; 5.1-inch travel
Rear Suspension Showa® dual shocks; 4.0-inch travel
Front Brake Single 240mm disc; ABS
Rear Brake 130mm drum
Front Tire 110/80-14
Rear Tire 130/70-13

Dimensions

Rake 26.5°
Trail 3.4 inches
Wheelbase 52.1 inches
Seat Height 30.7 inches
Fuel Capacity 2.1 gallons
Curb Weight 294 pounds (includes all standard equipment, required fluids and a full tank of fuel)

Other

Model ID ADV160A
Available Colors Matte Black Metallic

Factory Warranty Information

Duration Transferable, one year included, limited warranty
Optional Extended Extended coverage available with a HondaCare® Protection Plan

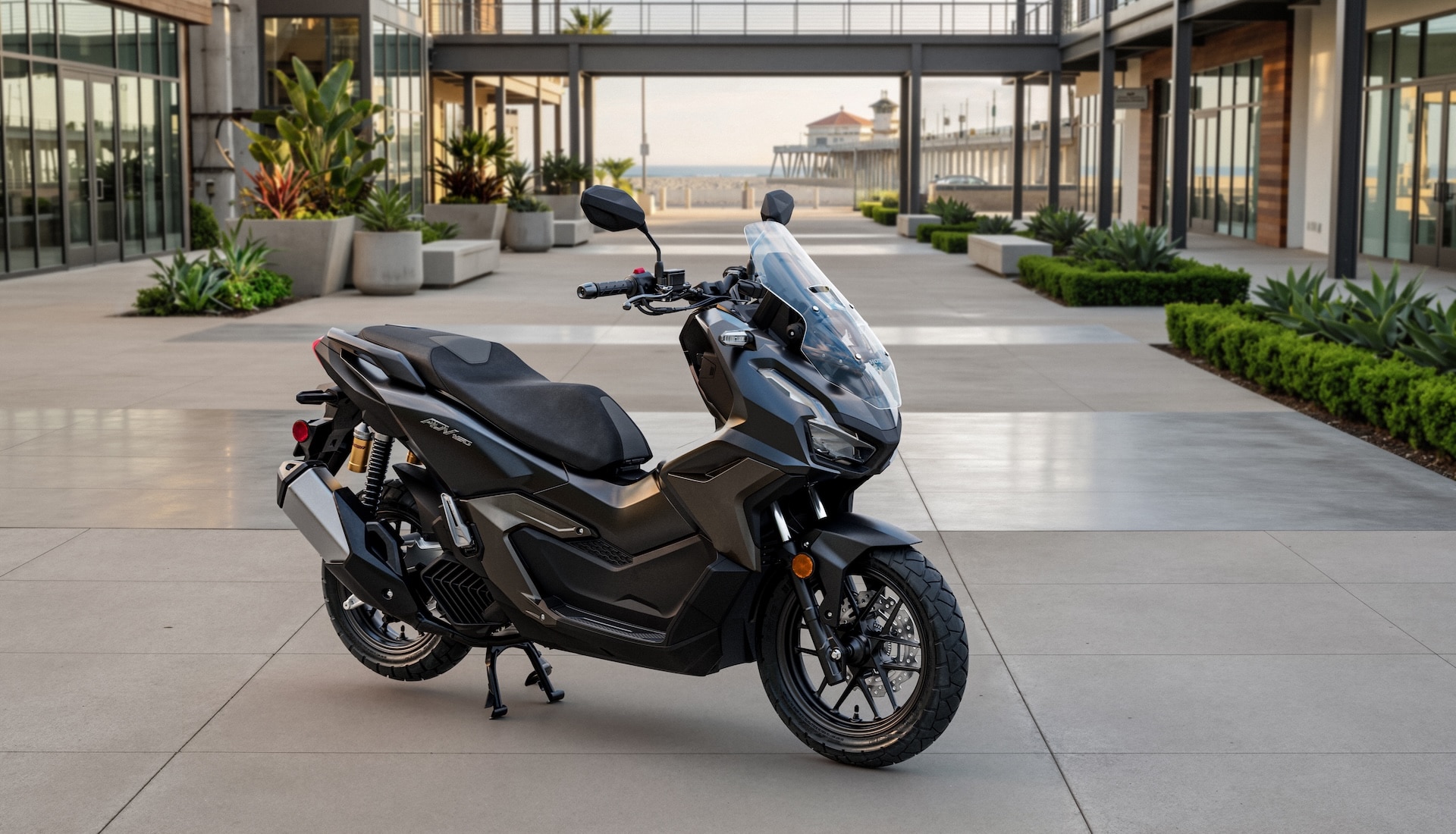

MY27_ADV_Campaign2

Your two-wheeled escape pod

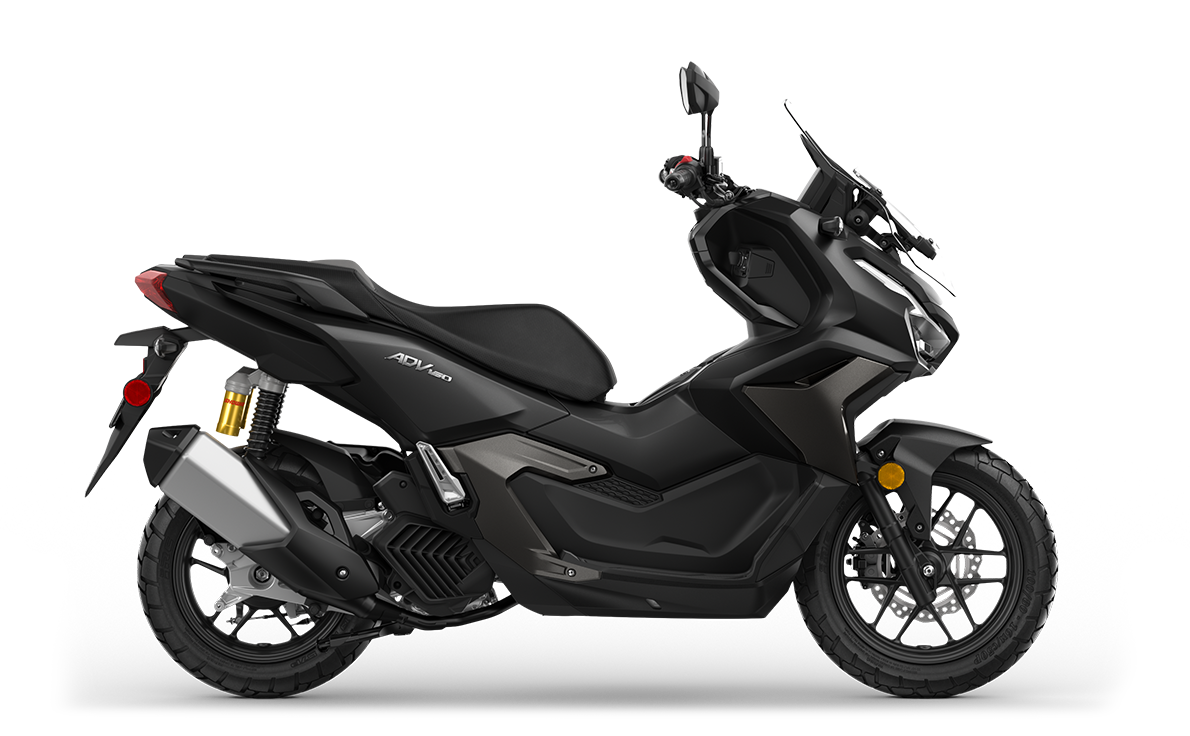

2027-ADV160-profile-1190x736

Scooter heart

Two-position windscreen

The windscreen can be adjusted to two positions without tools. It can be lowered for more breeze or raised for better wind and weather protection.

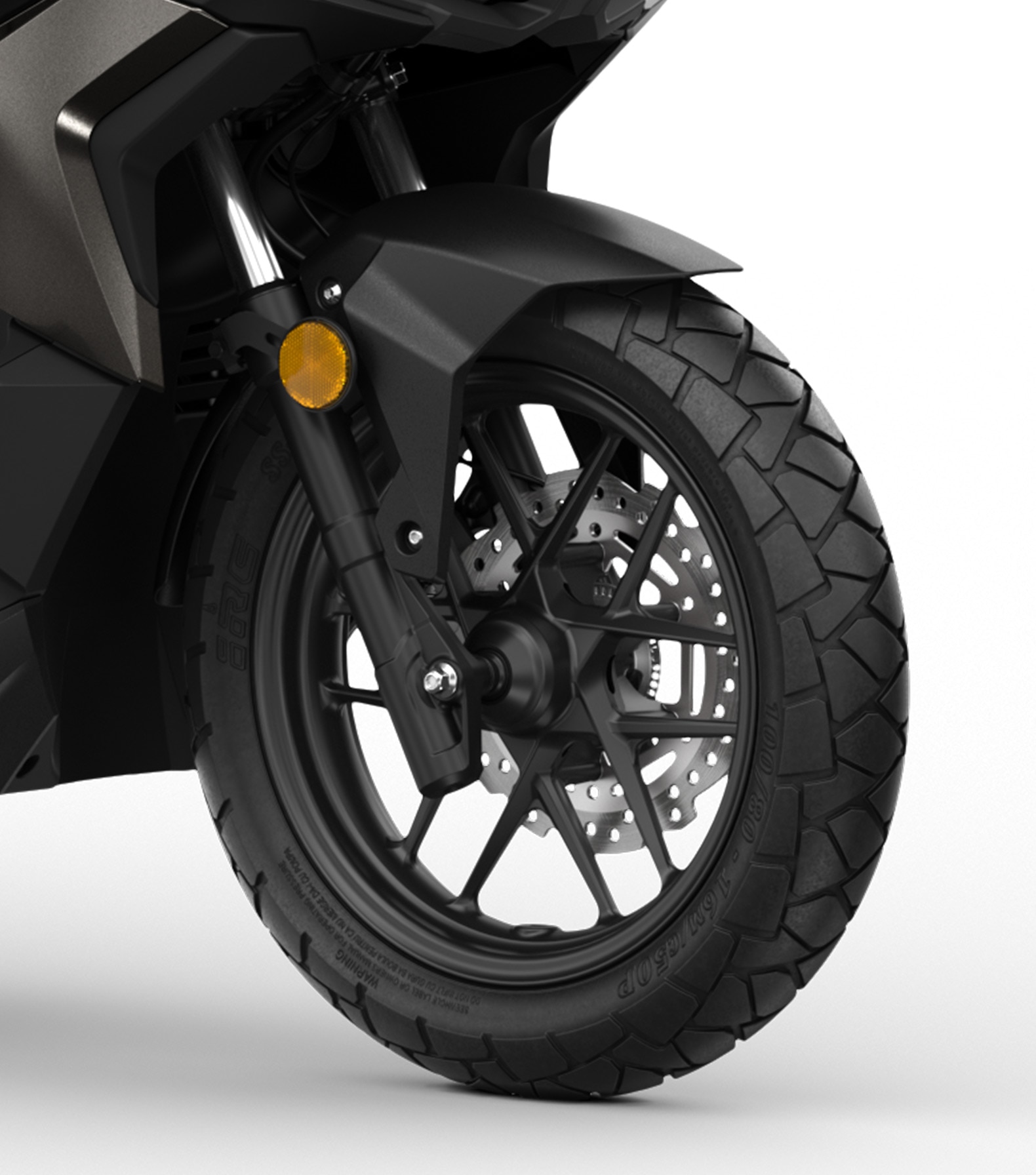

2027-ADV160-Front-wheel-ABS
Scooter heart

Front-wheel ABS

Sometimes, adventure means not knowing what's around the corner. But with this scooter's Anti-Lock Braking System (ABS) on the front wheel, you can make confident stops, even in less-than-ideal conditions.

2027-ADV160-Rugged-suspension-premium-shocks
Scooter heart

Rugged, premium suspension

The suspension boasts long travel for the smoothest possible ride, with a Showa® telescopic fork in the front and a pair of remote-reservoir premium Showa® shocks in the rear.

2027-ADV160-Ample-storage
Scooter heart

Underseat storage

This scooter has plenty of storage. Flipping open the seat reveals a 27-liter weatherproof main compartment that locks securely, while a charging port-equipped 2-liter compartment at the front provides quick access.

Explorer soul

Programmed Fuel Injection

Programmed Fuel Injection

This scooter is equipped with liquid cooling and Programmed Fuel Injection (PGM-FI) for optimal performance in any traffic conditions and hassle-free starting, even in cold weather. Additionally, it boasts impressive fuel efficiency.

Low center of gravity

Low center of gravity

Because the engine, drivetrain, and fuel tank are mounted as far down in the frame as possible, it has a low center of gravity. This helps inspire confidence, especially in parking lots or tight traffic.

Frame

Frame

A solid double-cradle steel-tube chassis provides great handling and rugged construction. You may never see it, but you'll feel the benefits every time you ride.

V-Matic transmission

V-Matic transmission

Honda's V-Matic automatic transmission lets you start the engine, twist the throttle, and go. No shifting gears or clutch required. This continuously variable design delivers smooth power for an effortless and enjoyable ride.

Fuel capacity

Fuel capacity

As with all Honda scooters, the ADV160 is highly fuel-efficient. Additionally, its large-than-average fuel tank allows for longer rides between fill-ups.

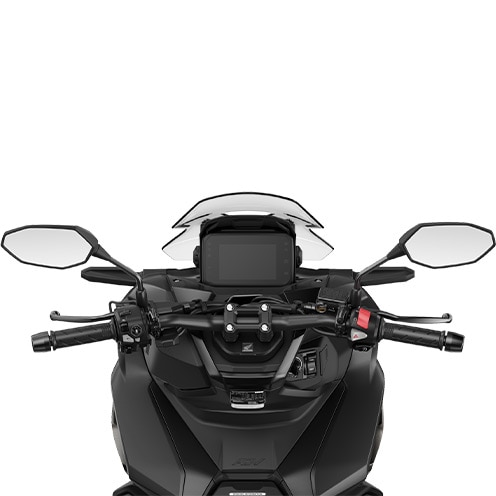

Honda SMART Key

Honda SMART Key

Starting this scooter is as easy as pushing a button with our SMART Key, meaning you no longer need to fumble for an old-school key. Just leave it in your pocket and go.

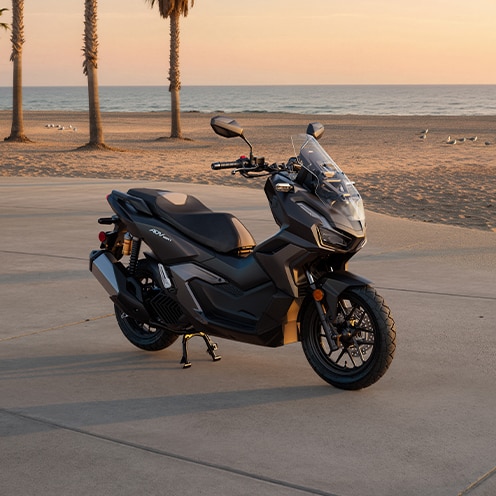

Easy to park

Easy to park

Most scooters park easily, but this machine makes it even easier. With both a sidestand and a centerstand, parking at a store or in a tight space is quick and simple.
