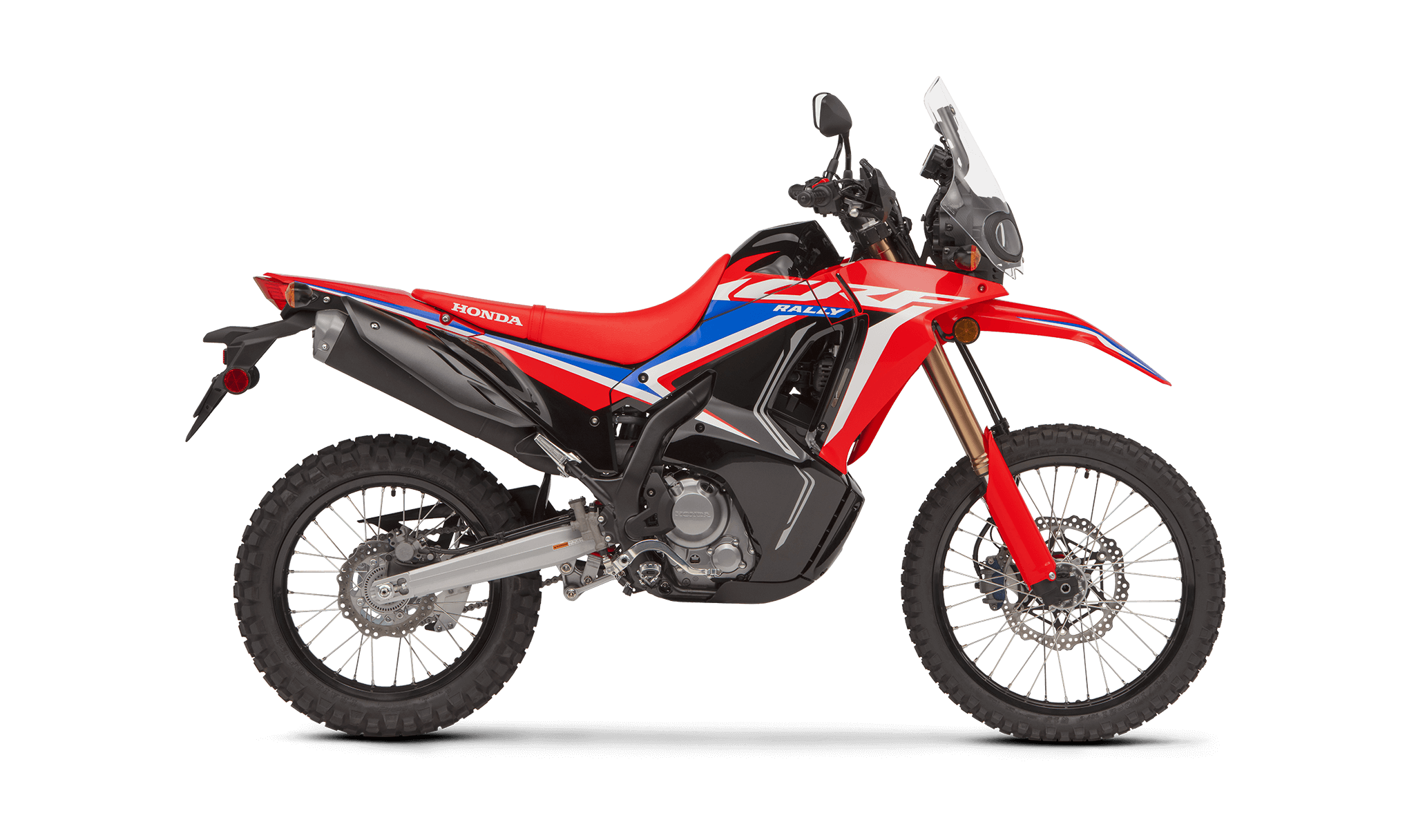

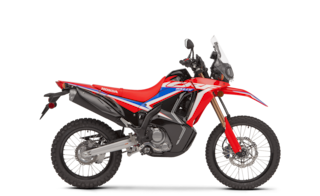

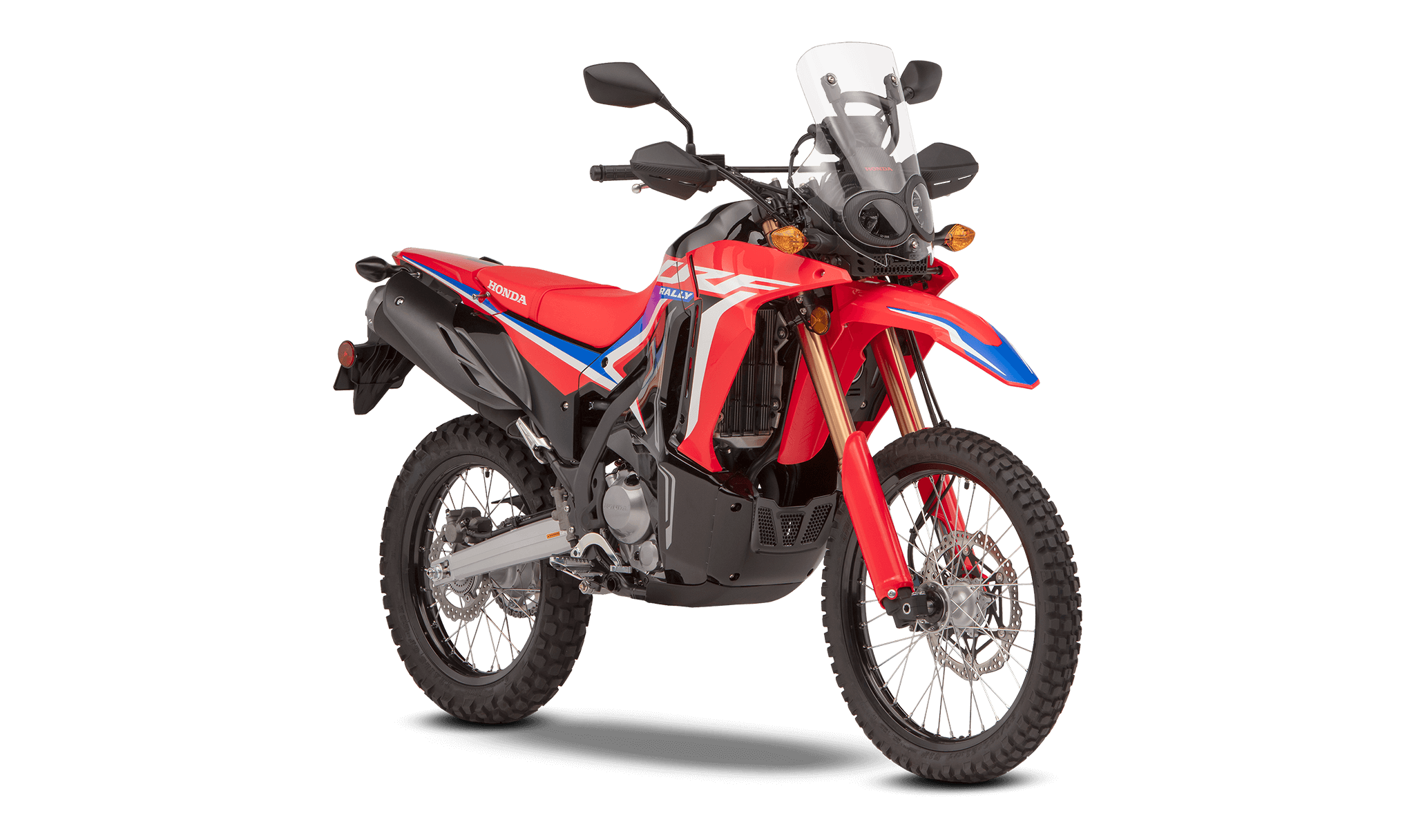

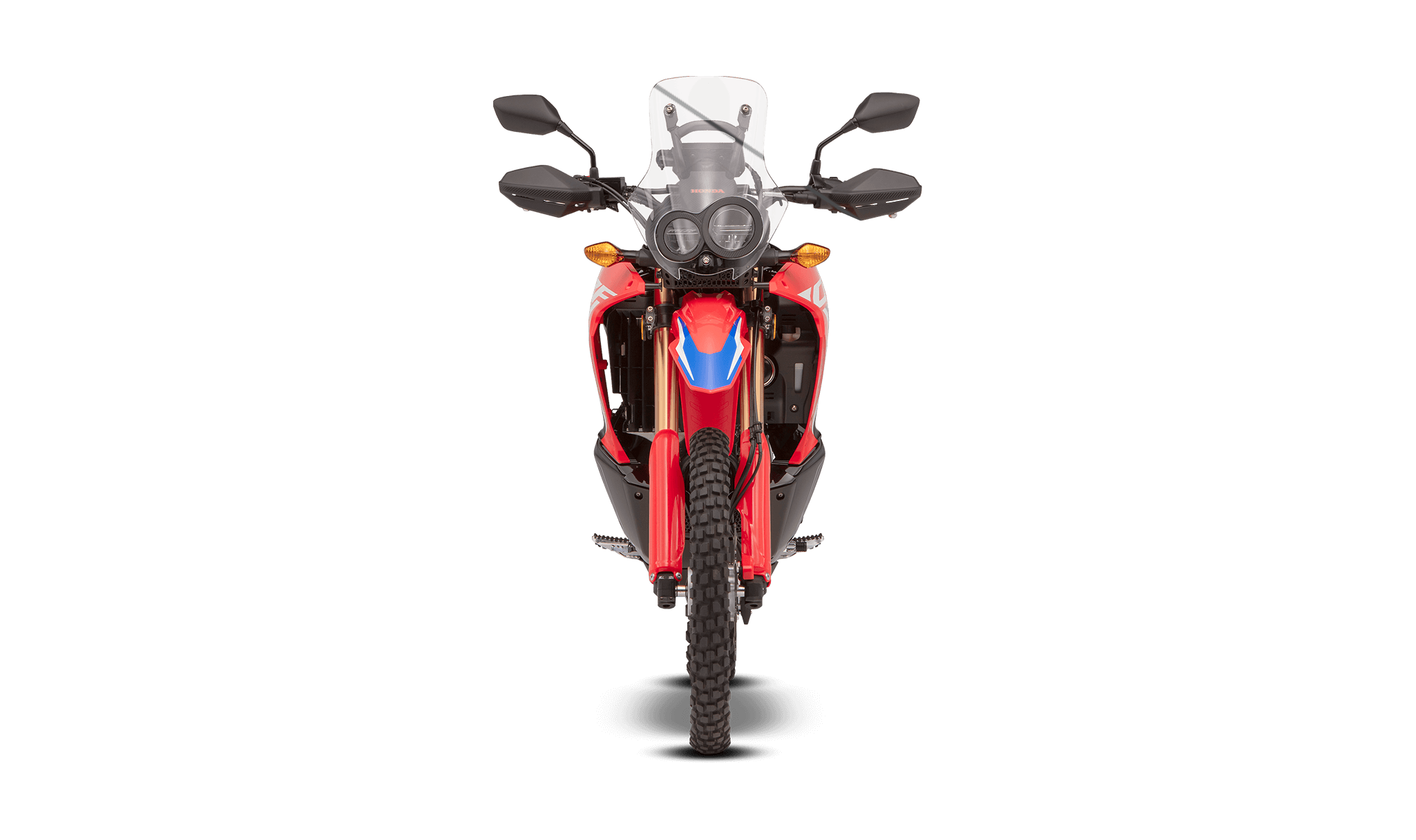

2024 CRF300L Rally ABS
286cc liquid-cooled single-cylinder four-stroke
Six-speed manual
43.0mm inverted fork; 10.2-inch travel
Pro-Link® single shock; 10.2-inch travel
35.2 inches
Transferable, one year included, unlimited-mileage limited warranty
Engine
| Engine Type | 286cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 76.0mm x 63.0mm |
| Compression Ratio | 10.7:1 |
| Valve Train | DOHC; four valves per cylinder |
| Induction | Programmed Fuel-Injection system (PGM-FI); 38.0mm throttle body |
Drivetrain
| Transmission | Six-speed manual |
|---|---|
| Final Drive | #520 chain; 14T/40T |
Chassis Suspension Brakes
| Front Suspension | 43.0mm inverted fork; 10.2-inch travel |
|---|---|
| Rear Suspension | Pro-Link® single shock; 10.2-inch travel |
| Front Brake | Single 296.0mm disc with twin-piston caliper; ABS |
| Rear Brake | Single 220.0mm disc; ABS |
| Front Tire | IRC GP21 80/100-21 |
| Rear Tire | IRC GP22 120/80-18 |
Dimensions
| Rake | 27.5° |
|---|---|
| Trail | 4.3 inches |
| Wheelbase | 57.2 inches |
| Seat Height | 35.2 inches |
| Ground Clearance | 10.9 inches |
| Curb Weight | 335 pounds |
| Fuel Capacity | 3.4 gallons, including 0.6-gallon reserve |
Other
| Available Colors | Red |
|---|---|
| Model ID | CRF300LRA |
Factory Warranty Information
| Duration | Transferable, one year included, unlimited-mileage limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Navigate new paths
Elevate your rally

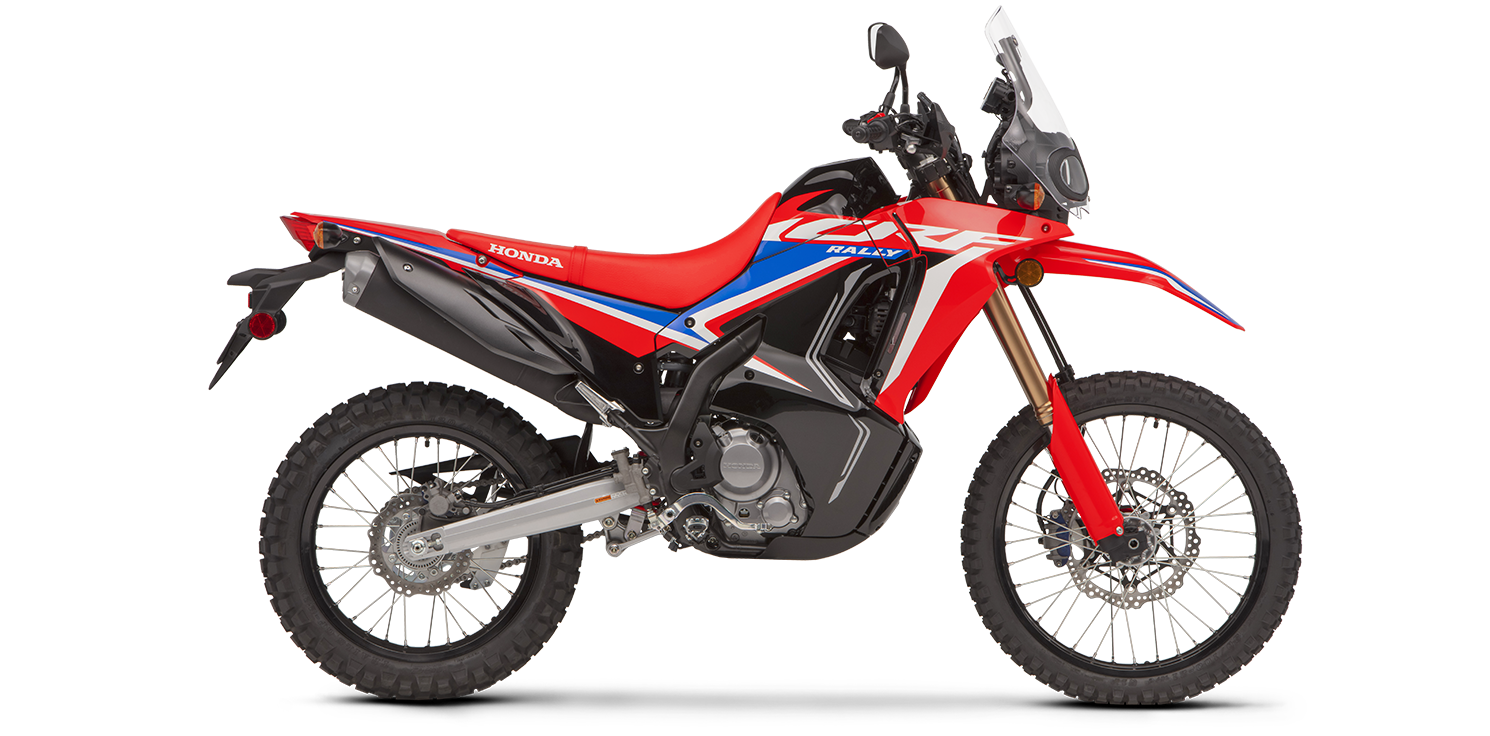

Single-cylinder engine
A single is the perfect choice for a bike like this. It's light, simple, and is extremely fuel-efficient.

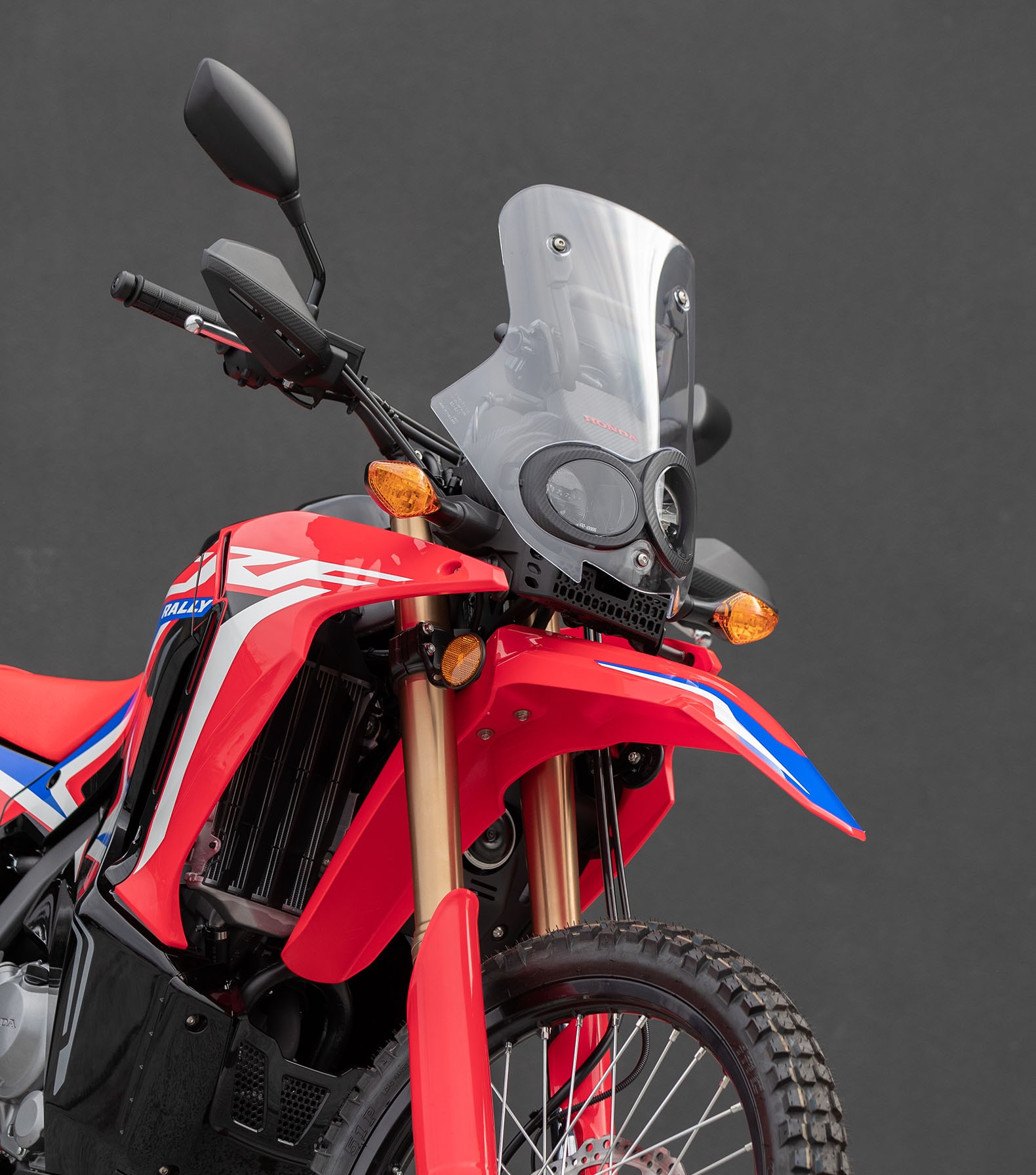

Rally bike styling
The tall windscreen, extra-coverage fairing, and side panels are all marks of a true rally machine. It looks awesome, like our championship-winning Dakar Rally racebikes, and you’ll appreciate the extra wind and weather protection.

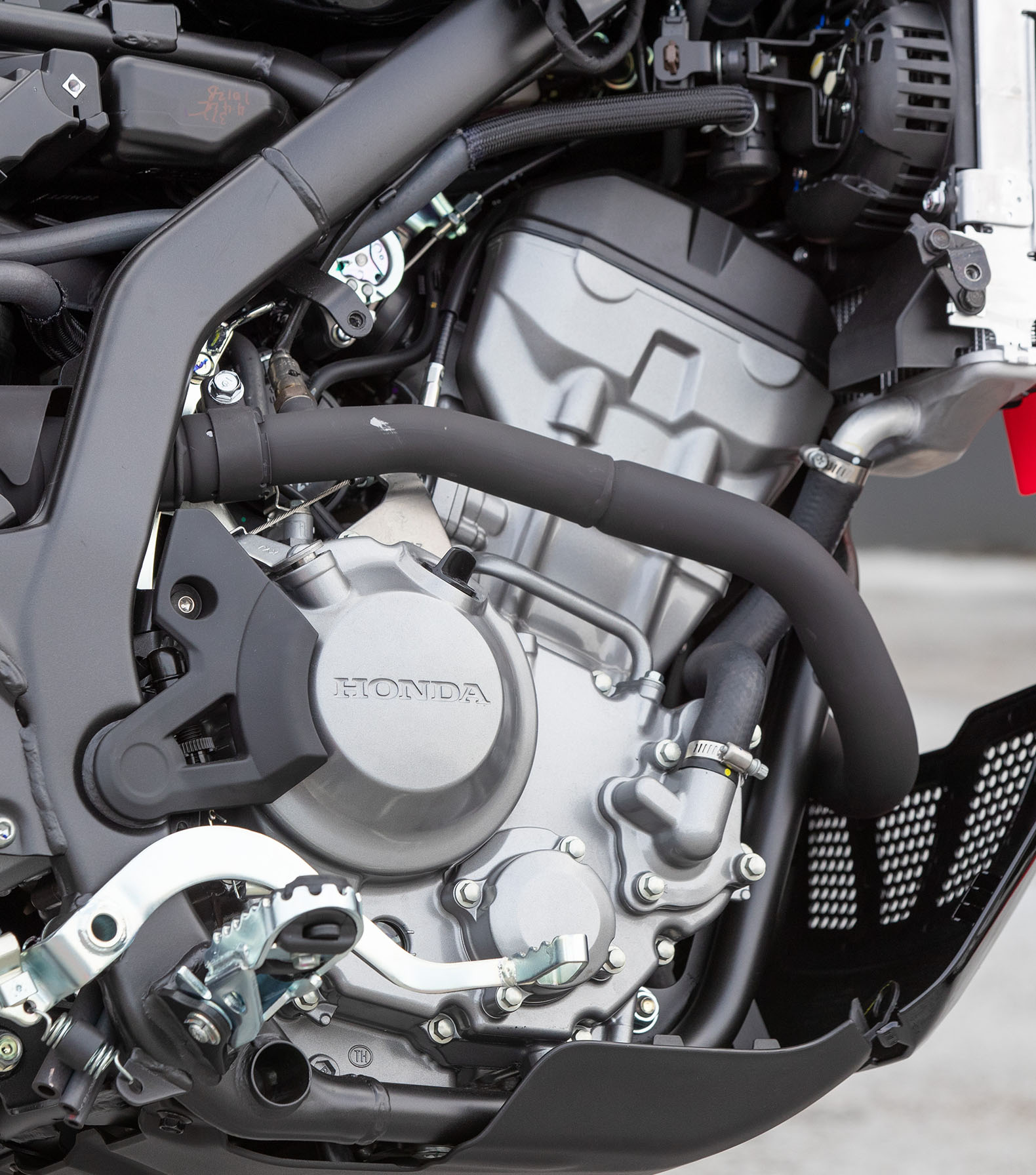

Engine counterbalancer
Thanks to the counterbalancer, this engine runs smoothly, combining the narrow width and power benefits of a single-cylinder motorcycle with the smoothness of a multi-cylinder model.

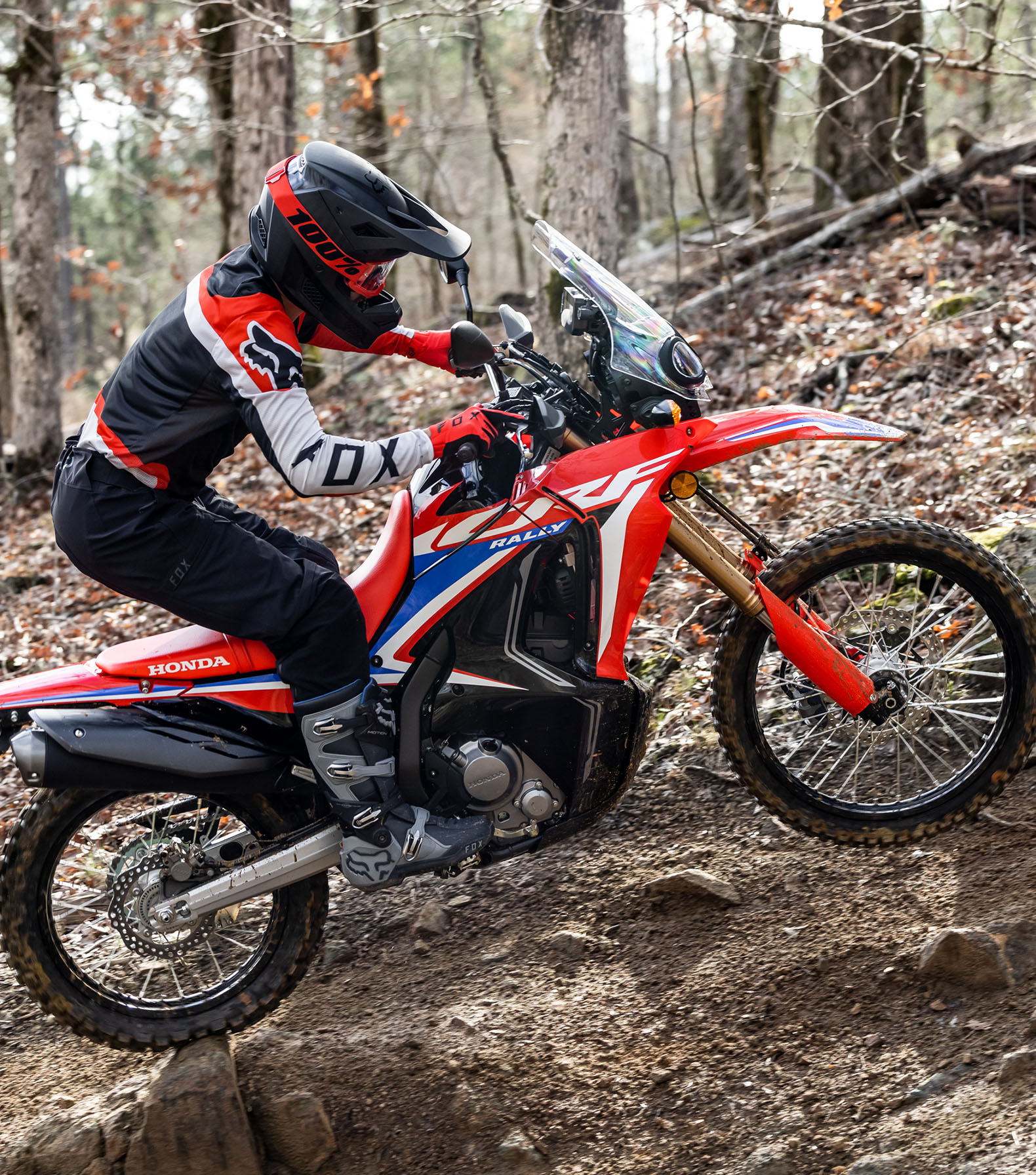

Comfortable seating
With a long, motocross-style seat, you can easily move forward, backward, left, and right, making it comfortable to navigate through different terrains.
Enhanced adventure awaits

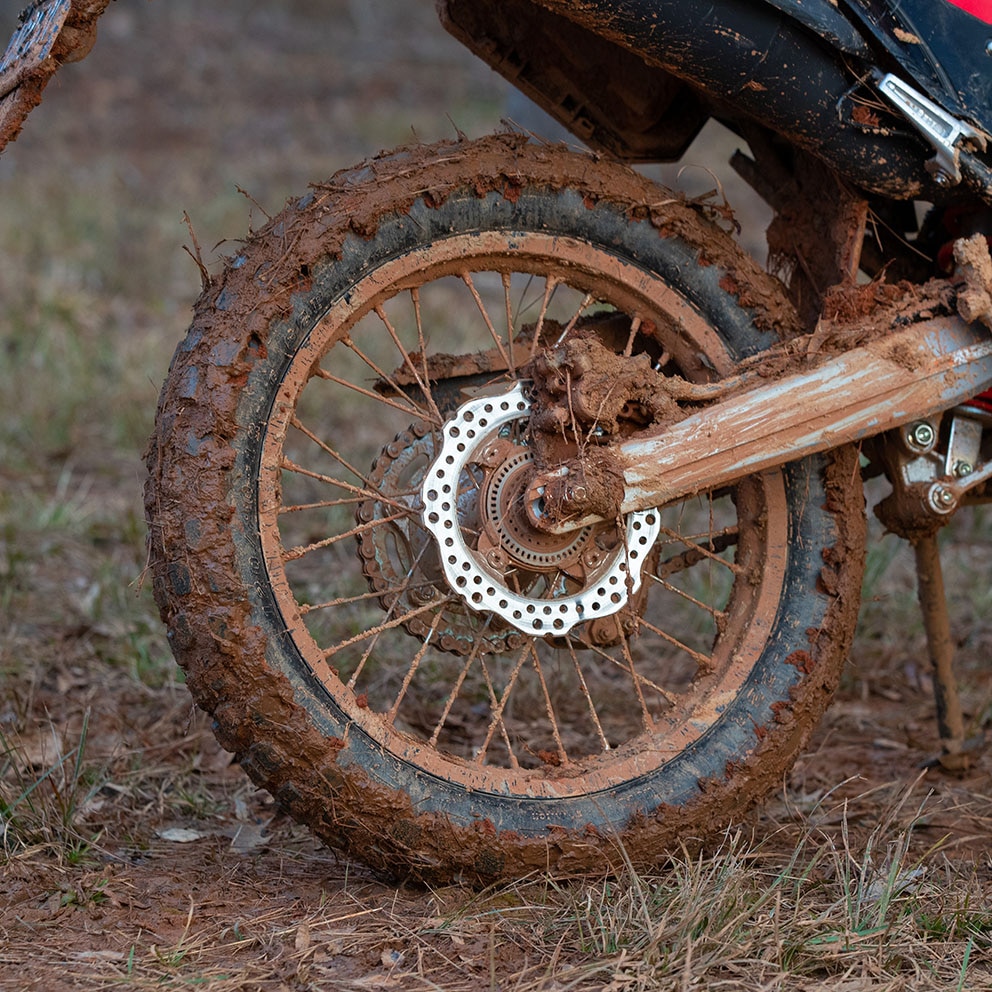

Anti-Lock Braking System
The Rally 300 ABS features our Anti-Lock Braking System (ABS), which inspires increased confidence and control in all conditions and can be turned off for added feel when off-road riding.
21-inch front and 18-inch rear wheels
A 21-inch front and 18-inch rear wheel give you a wide selection of tire choices for everything from serious off-road trail riding to smooth on-road adventures.
Disc brakes
It is equipped with hydraulic disc brakes in the front and rear, delivering exceptional stopping power and brake feel.
Ground clearance
The engine is mounted high in the frame, which allows for an impressive ground clearance of 11.2 inches.
Inverted fork
An inverted Showa® fork with large 43mm sliders adds strength and provides excellent handling on- and off-road.
Pro-Link® rear suspension
Thanks to our Pro-Link® rear suspension with single shock, it delivers excellent comfort, traction, and handling, improving rider confidence.
Large sidestand foot
We have equipped it with a large sidestand foot. It may seem like a minor detail, but it will be useful when you have to park on hot asphalt or ride off-road.
Rally bike styling
It boasts a tall windscreen, extra-coverage fairing, and side panels that are characteristic of a true rally machine. It looks stunning, reminiscent of our championship-winning Dakar Rally racebikes, and provides additional protection from the wind and weather.
Comfortable seating position
With a long, motocross-style seat, you can easily move forward, backward, left, and right, making it comfortable to navigate through different terrains.
Digital instrumentation
The digital instrument cluster features easily readable numbers and indicators, including a speedometer, clock, twin tripmeter, and tachometer.
Passenger ready
Equipped with a long seat and fold-up frame-mounted passenger footpegs, this bike is perfect for carrying a passenger and sharing the fun.
Related trims and models

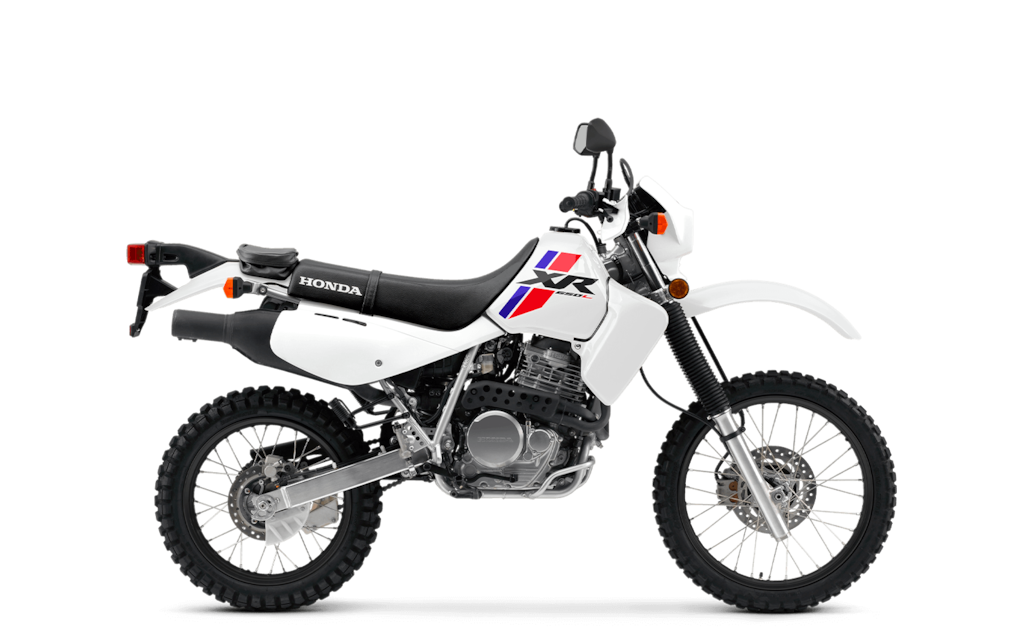

XR650L
Base MSRP $6,999* Destination Charge: $600.00
- 644cc air-cooled SOHC single-cylinder four-stroke
- Electric starter
- Fully street-legal
- Passenger ready
- Black rims

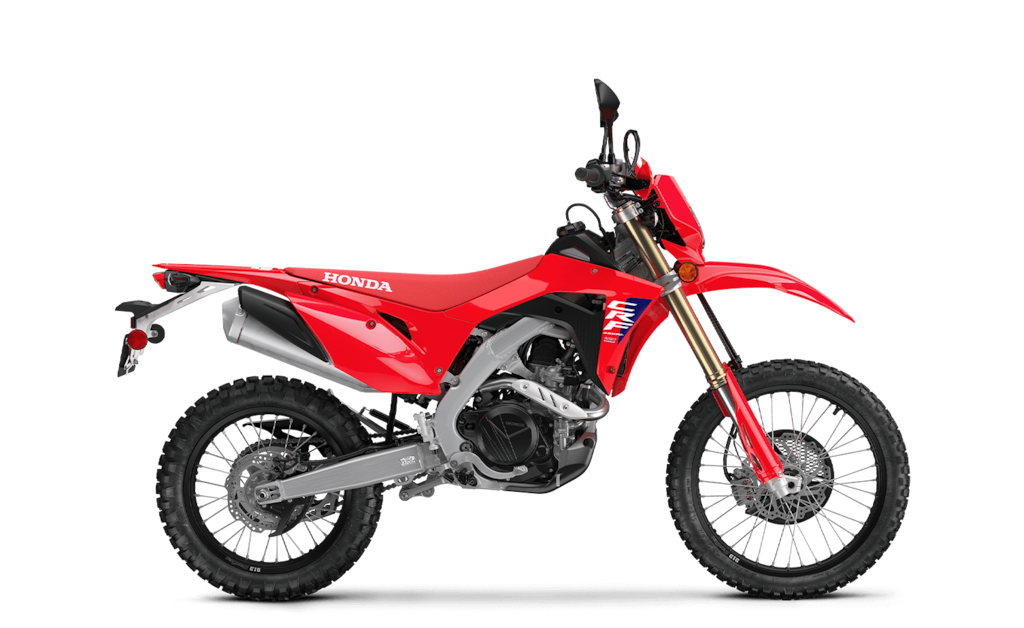

CRF450RL
Base MSRP $10,099* Destination Charge: $600.00
- 450cc liquid-cooled Unicam single-cylinder engine
- Wide-ratio six-speed transmission
- 49mm Showa® spring fork
- Race-inspired graphics
- Fully street legal

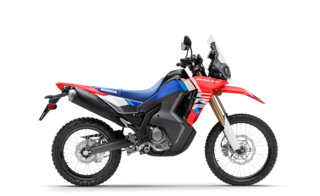

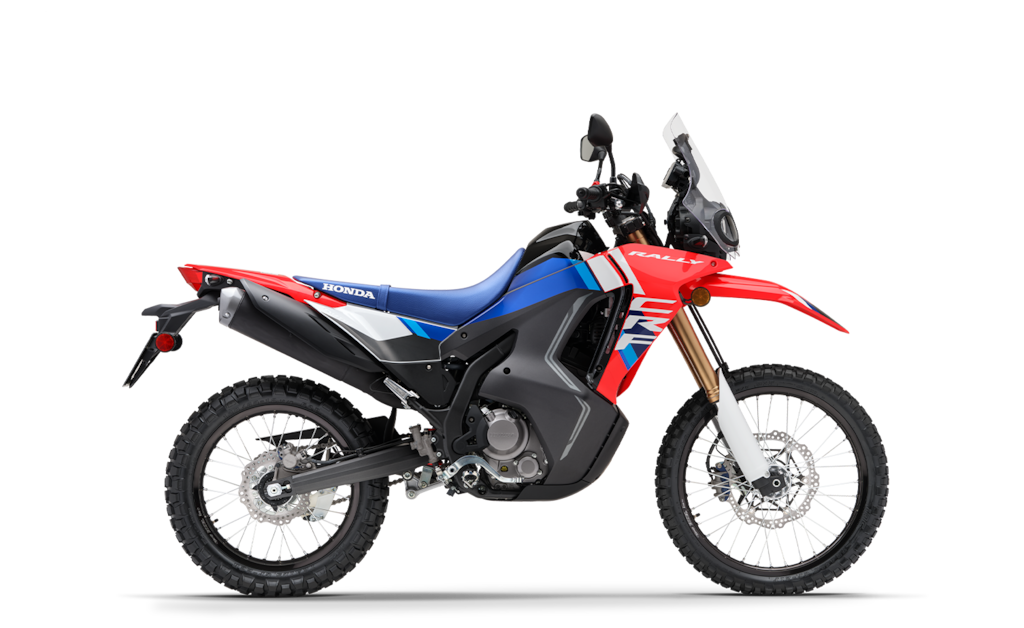

CRF300L Rally
Base MSRP $6,499* Destination Charge: $600.00
- 286cc liquid-cooled single-cylinder engine
- Fuel injection
- Revised suspension
- Rally bike styling
- Slim seat front

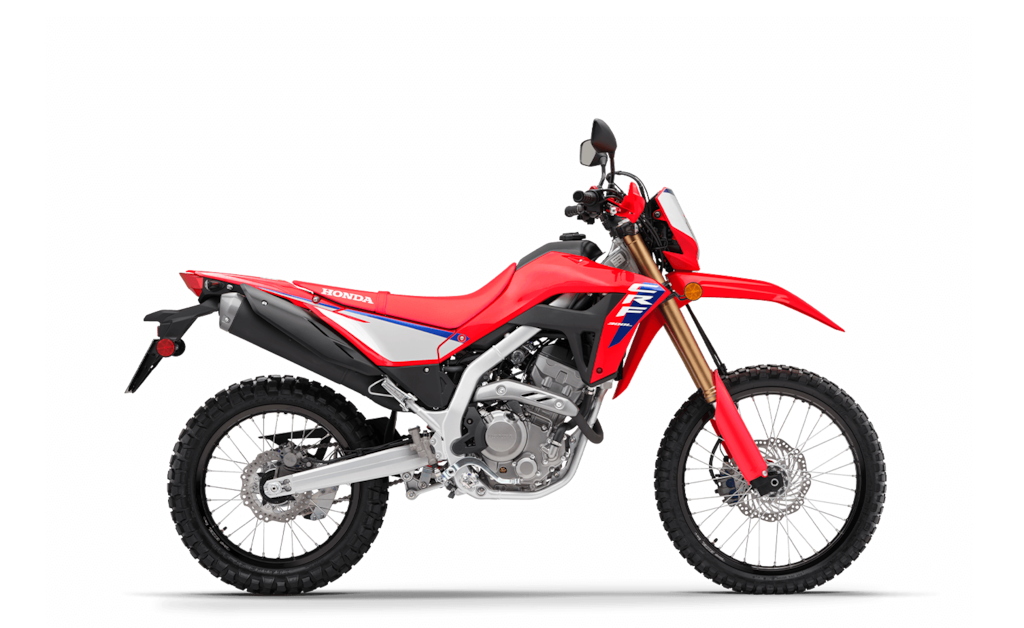

CRF300L
Base MSRP $5,749* Destination Charge: $600.00
- 286cc liquid-cooled single-cylinder engine
- Fuel injection
- Revised suspension
- MX-style color/graphics
- New side covers

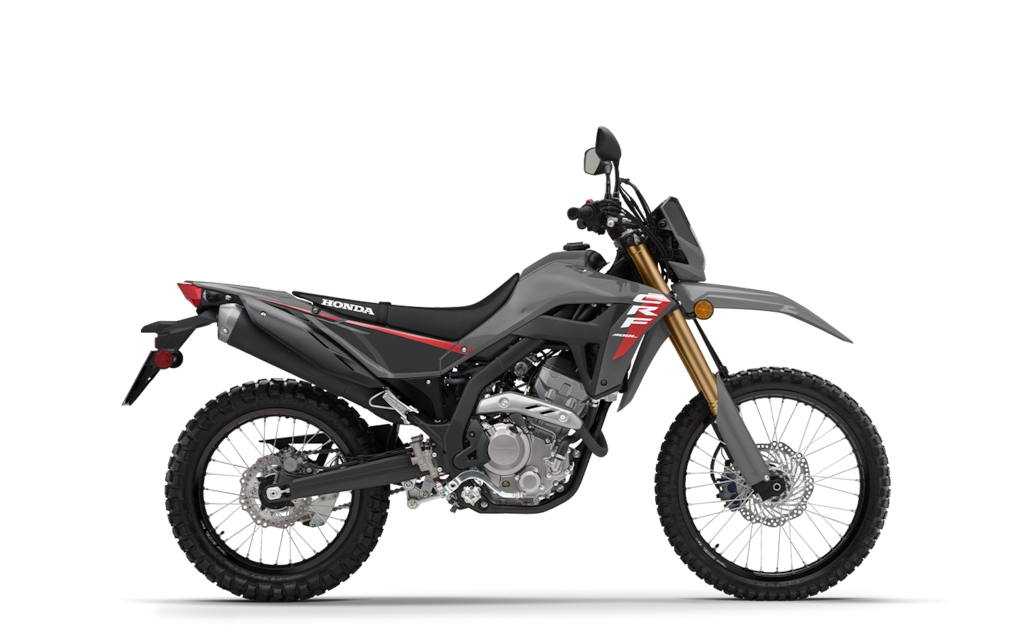

CRF300LS
Base MSRP $5,749* Destination Charge: $600.00
- 286cc liquid-cooled single-cylinder engine
- Fuel injection
- Revised suspension
- MX-style color/graphics
- New side covers

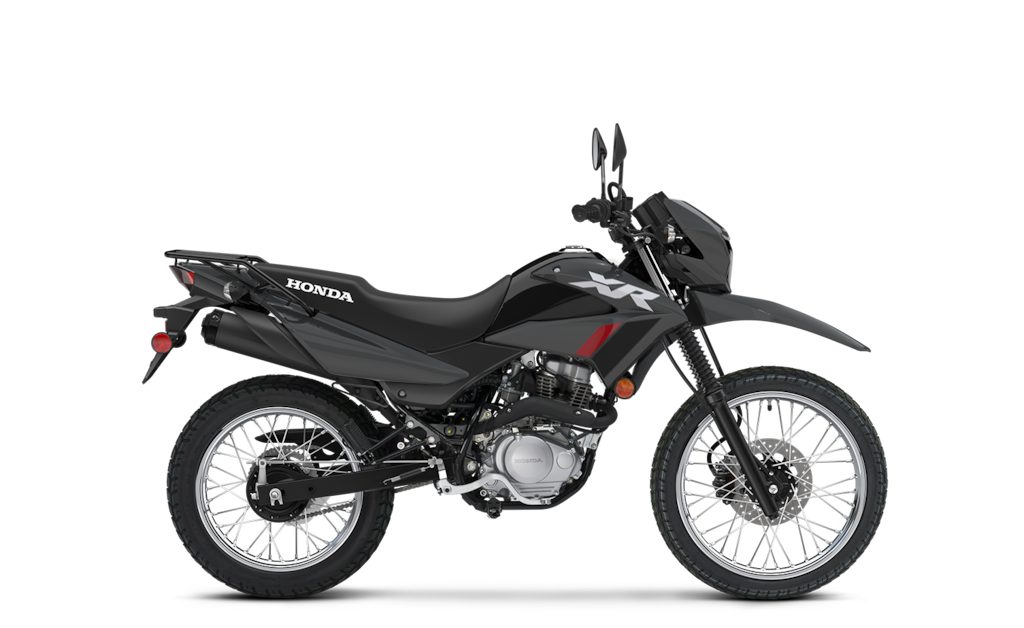

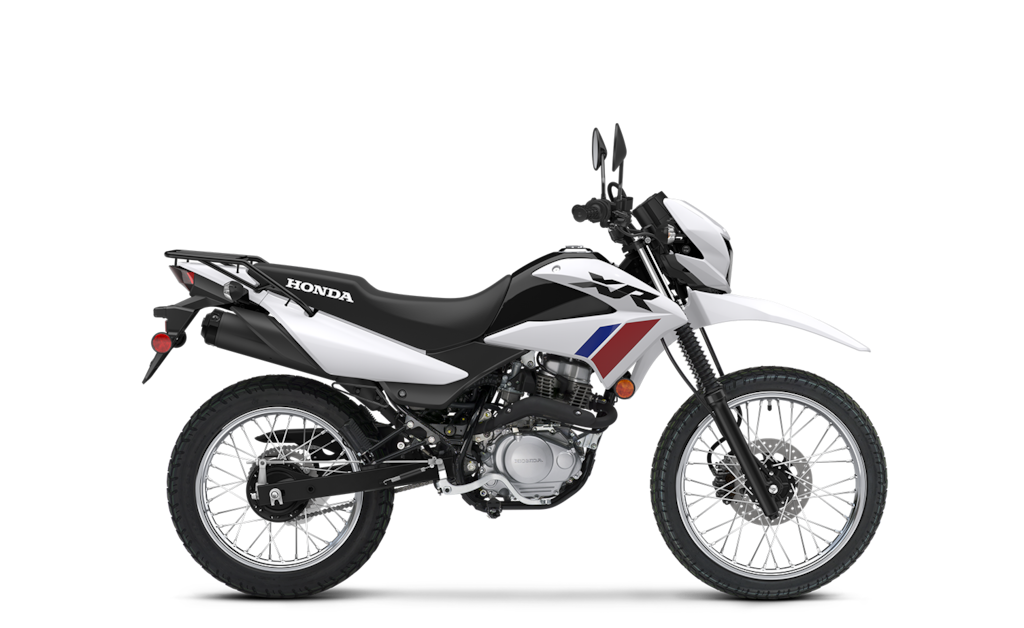

XR150L
