TRX90X
86cc air-cooled single-cylinder four-stroke
Four-speed semi-automatic
Independent single A-arms; 2.6-inch travel
Swingarm with single shock; 2.6-inch travel
26.0 inches
Transferable, unlimited-mileage limited warranty
Engine
| Engine Type | 86cc air-cooled single-cylinder four-stroke |
|---|---|
| Bore And Stroke | 47.0mm x 49.5mm |
| Compression Ratio | 9.2:1 |
| Valve Train | OHV; two valves per cylinder |
| Induction | 16.0mm piston-valve carburetor |
| Starter | Electric |
Drivetrain
| Transmission | Four-speed semi-automatic |
|---|---|
| Driveline | #428 O-ring-sealed chain; 13T/50T |
Chassis Suspension Brakes
| Front Suspension | Independent single A-arms; 2.6-inch travel |
|---|---|
| Rear Suspension | Swingarm with single shock; 2.6-inch travel |
| Front Brakes | Dual sealed 110.0mm drums |
| Rear Brake | Sealed 140.0mm drum |
| Front Tires | 20 x 7-8 |
| Rear Tires | 19 x 8-8 |
Dimensions
| Length | 58.6 inches |
|---|---|
| Width | 35.2 inches |
| Height | 36.5 inches |
| Wheelbase | 38.7 inches |
| Seat Height | 26.0 inches |
| Ground Clearance | 3.9 inches |
| Curb Weight | 262 pounds (Includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 1.7 gallons, including 0.3-gallon reserve |
| Turning Radius | 8.3 feet |
Other
| Available Colors | Red |
|---|---|
| Model ID | TRX90X |
| Important Safety Information | Recommended for riders 10 years of age and older. Honda recommends that all ATV riders take a training course and thoroughly read their owner's manual. An adult must supervise TRX90X riders younger than 16 years of age. |
Factory Warranty Information
| Duration | Transferable, one year included, limited warranty |
|---|---|
| Optional Extended | Extended coverage available with a HondaCare® Protection Plan |
Where their adventure beings
Mini size. Major thills.

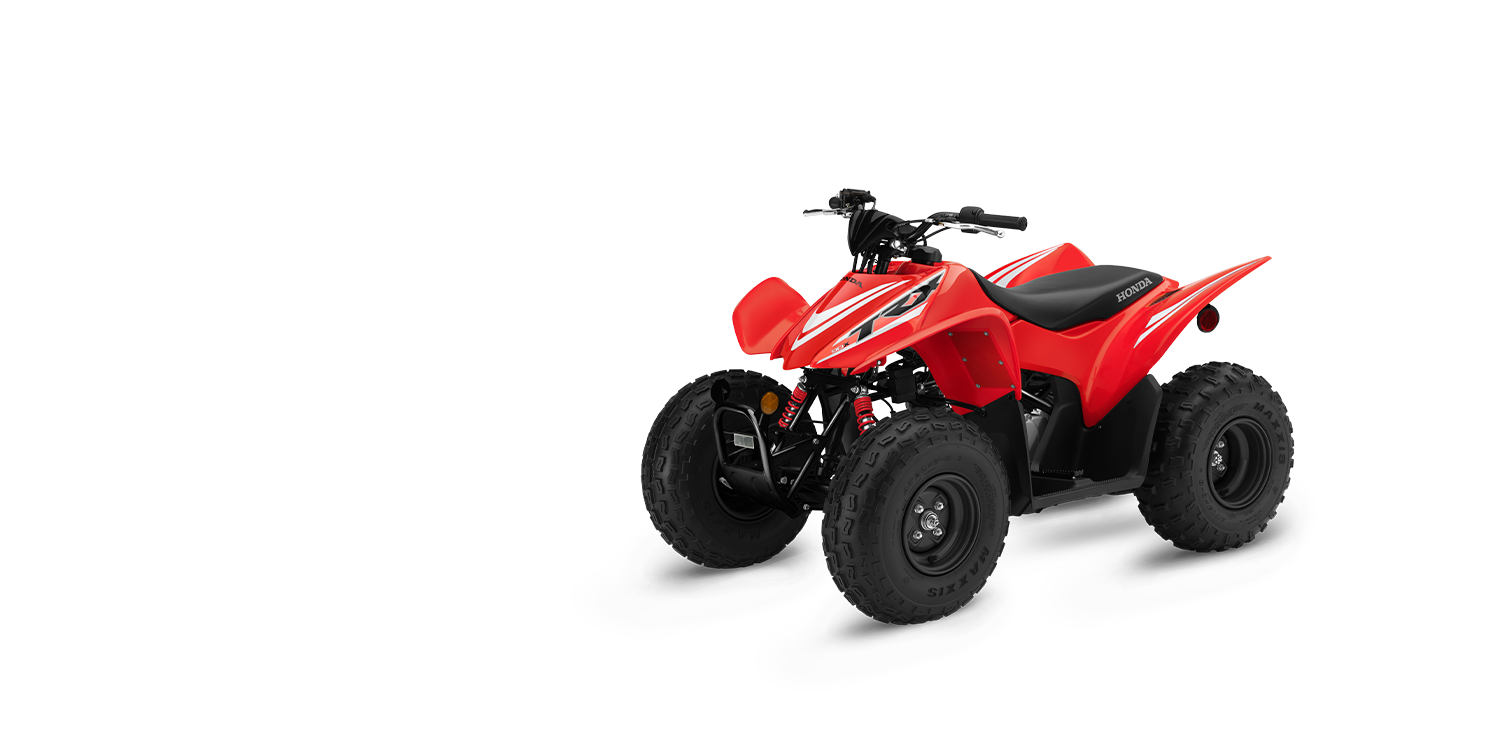

Rugged, reliable 86cc engine
Our proven 86cc single-overhead-cam (SOHC) four-stroke engine offers smooth, useable power and legendary reliability.
Semi-automatic transmission
This mighty little ATV features a durable automatic clutch that makes takeoffs and shifting a breeze. A versatile foot-operated four-speed transmission is geared to deliver adequate power for the appropriate riding conditions.
Keyed ignition
Responsible fun is the name of the game. Since this ATV uses a keyed ignition, parents control who goes riding and when.
Bump-absorbing front suspension
Up front, independent suspension features a pair of rugged shock absorbers with 2.6 inches of travel for a comfortable, controlled ride.
Your mini-me’s perfect first ATV

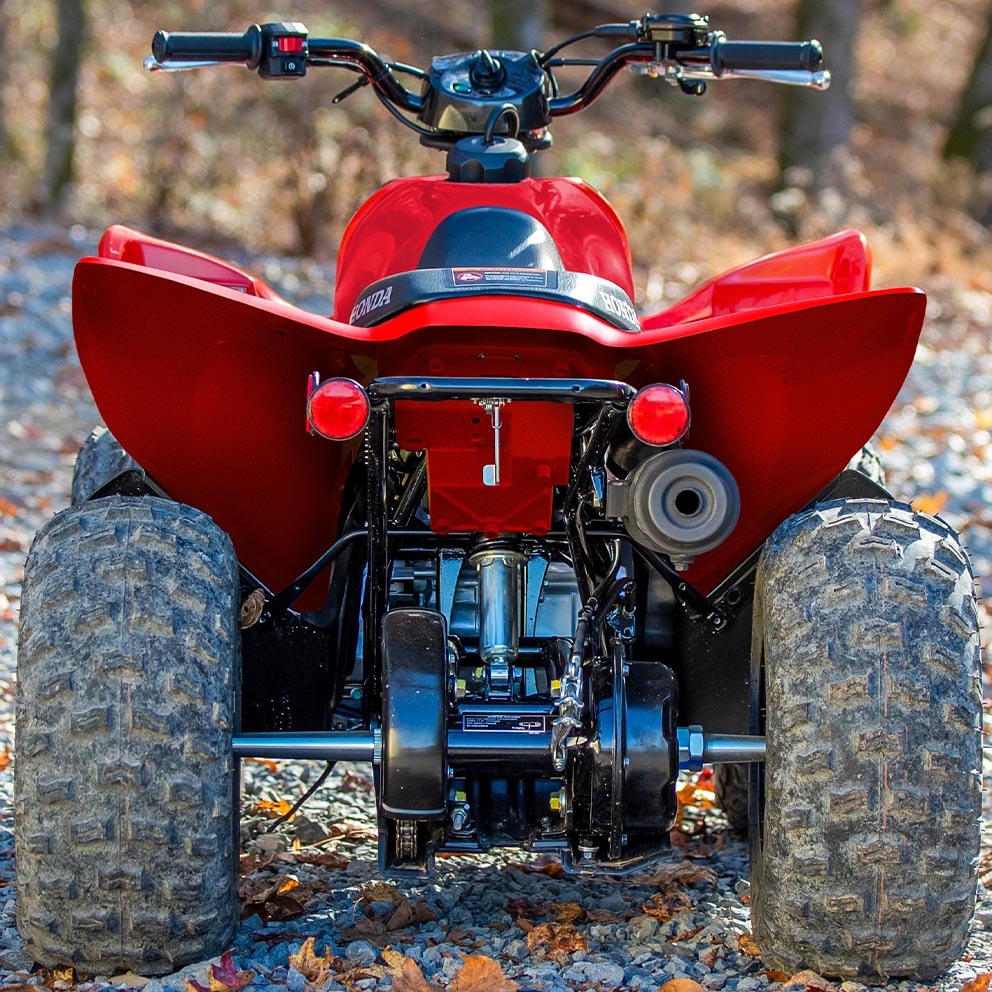

Single-shock rear suspension
Single-shock rear suspension out back delivers all-day comfort with trail-taming handling.

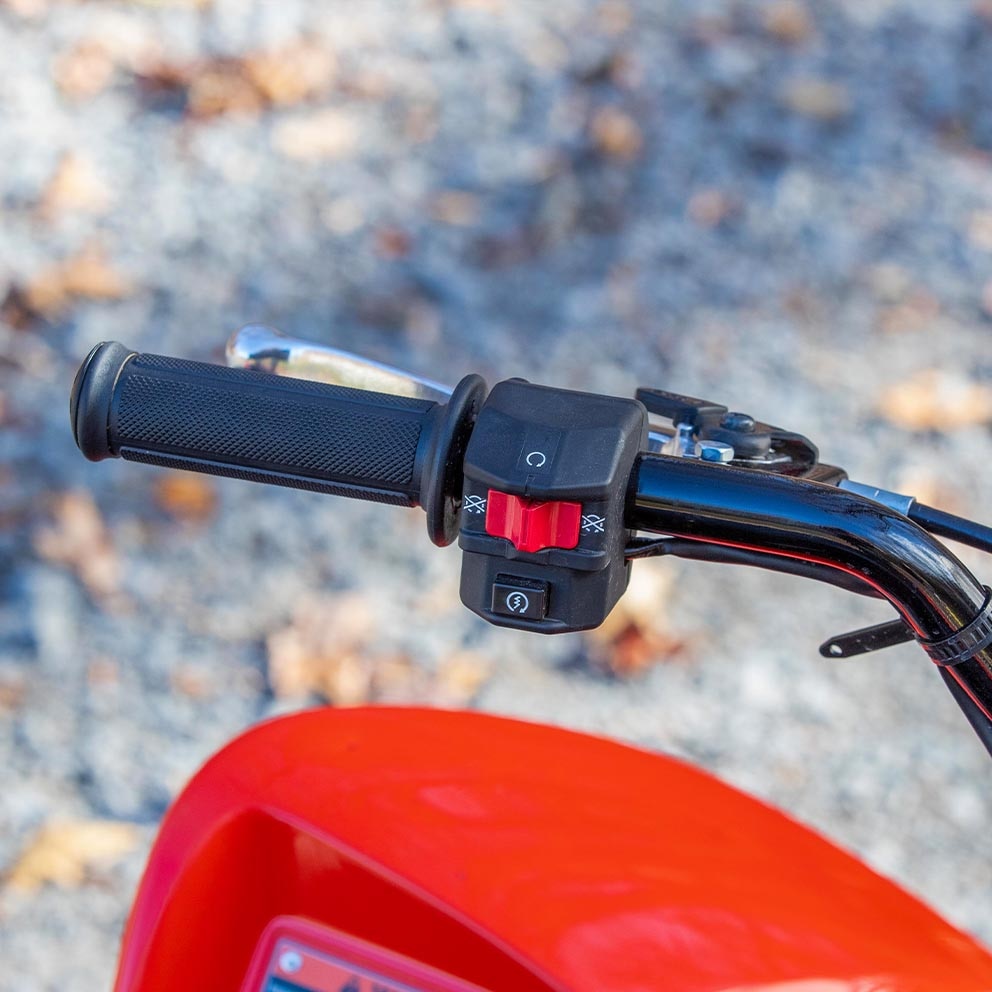

Electric start
A convenient, push-button electric starter ensures hassle-free starting in all conditions.

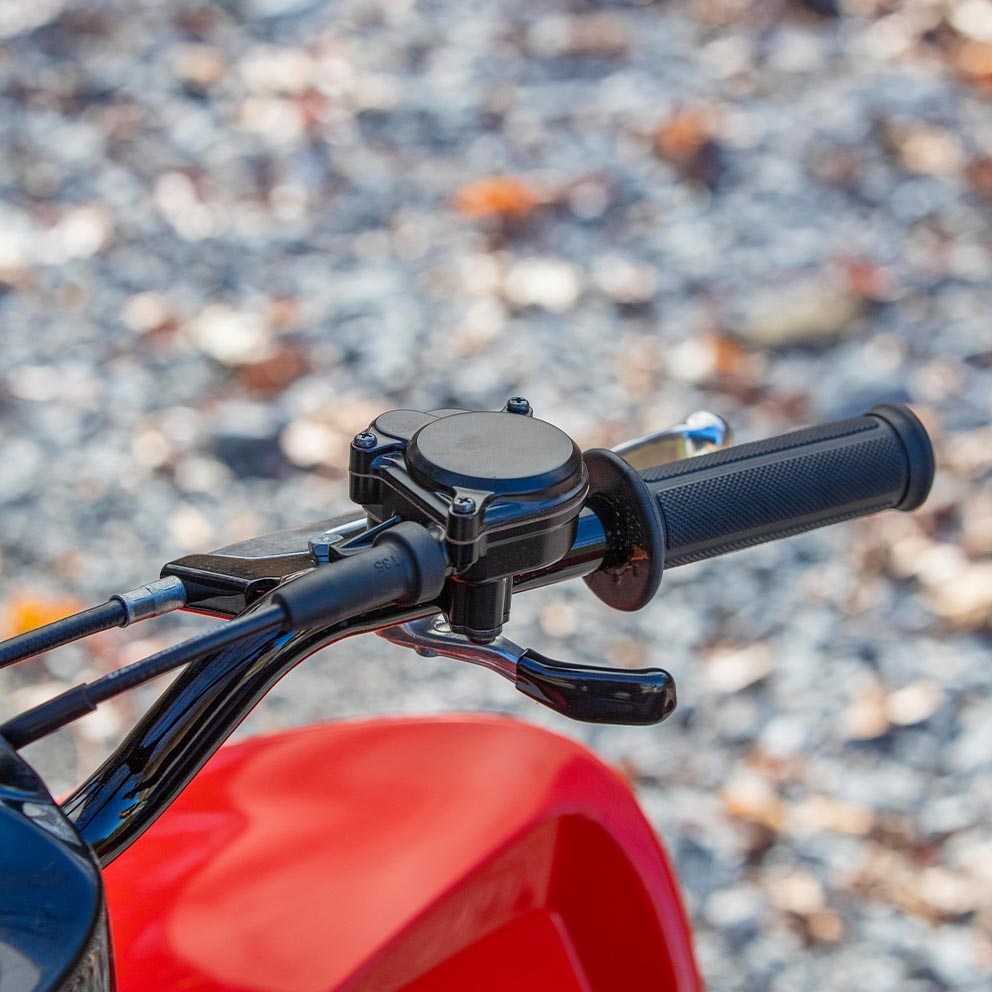

Adjustable throttle limiter
The throttle features an adjustable limiter, allowing parents to control the speed and power of the ATV.
Color options
This mighty little ATV is available in classic Honda Red with race-style graphics.
