Pearl Black

Engine Type

124cc air-cooled single-cylinder four-stroke

Transmission

Four-speed semi-automatic

Front Suspension

31mm inverted fork; 4.3-inch travel

Rear Suspension

Dual shocks; 4.7-inch travel

Seat Height

30.6 inches

Curb Weight

236 pounds (includes all standard equipment, required fluids and a full tank of fuel)

Engine

Engine Type	124cc air-cooled single-cylinder four-stroke
Bore And Stroke	50.0mm x 63.1mm
Compression Ratio	10.0:1
Valve Train	SOHC; two valves per cylinder
Induction	Programmed Fuel-Injection system (PGM-FI); 24mm throttle body

Drivetrain

Transmission	Four-speed semi-automatic
Final Drive	#420 Chain; 15T/34T

Chassis Suspension Brakes

Front Suspension	31mm inverted fork; 4.3-inch travel
Rear Suspension	Dual shocks; 4.7-inch travel
Front Brake	Single 220mm hydraulic disc; ABS
Rear Brake	Single 190mm disc
Front Tire	120/70-12
Rear Tire	130/70-12

Dimensions

Rake	25.0°
Trail	3.3 inches
Wheelbase	47.2 inches
Seat Height	30.6 inches
Curb Weight	236 pounds (includes all standard equipment, required fluids and a full tank of fuel)
Fuel Capacity	1.0 gallon

Other

Model ID	DAX125A
Available Colors	Pearl Black
Emissions	Meets current EPA standards. Models sold in California meet current CARB standards and may differ slightly due to emissions equipment.

Factory Warranty Information

Duration	Transferable, one year included, limited warranty
Optional Extended	Extended coverage available with a HondaCare® Protection Plan

Download Specs

Travel back in style

Nostalgia never looked so good

124cc fuel-injected engine

The engine is the same basic design as in our super-popular Grom, and delivers outstanding performance and reliability.

Nostalgia never looked so good

Low seat height

Whether flat-footing it into a parking space or just stopping at a traffic light, the low 30.6-inch seat and light weight are a big plus.

Nostalgia never looked so good

Semi-automatic transmission

The four-speed transmission has no clutch—all you do is push up or down on our heel-toe shift lever. It’s easy, fun, and gives you total control.

Nostalgia never looked so good

Standard ABS

Wet pavement or loose road surfaces can be a braking challenge, but our front-wheel ABS is there to take all the drama out of stopping.

Timeless design. Everyday fun.

View all Features

Front suspension

One major upgrade over the original Dax is the inverted hydraulic front fork, which provides better control, confidence, and road feedback.

Wide tires

The oversized 12-inch tires not only help give you a smooth ride but also perform better on choppy pavement.

Fuel capacity

Got a small fuel budget? This bike will make it look gigantic. With a 1.0-gallon tank and incredible fuel efficiency, every fill-up will take you farther than you ever thought possible.

Easy to park

Because of its small size, parking in the city is easy and winter storage is simple. There is always space for a Dax 125!

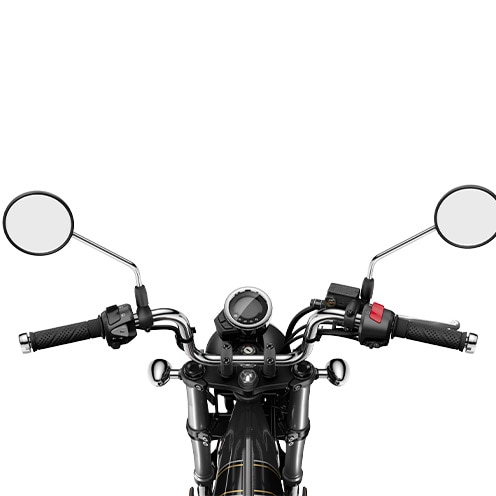

High-rise handlebars

It may be small, but the high-rise handlebars and long seat make it roomy enough for full-sized adults, no problem.

Low seat height

Whether flat-footing it into a parking space or just stopping at a traffic light, the low 30.6-inch seat and light weight are a big plus.

Flip-up seat

The seat flips up to reveal the fuel filler cap. A locking seat function uses the ignition key and keeps everything secure.

Accessorized Model Shown

Accessories

Make your Dax 125 even more fun with our available Honda accessories, including a saddlebag and mounting kit, our popular rear carrier, and even a convenient USB charging port.

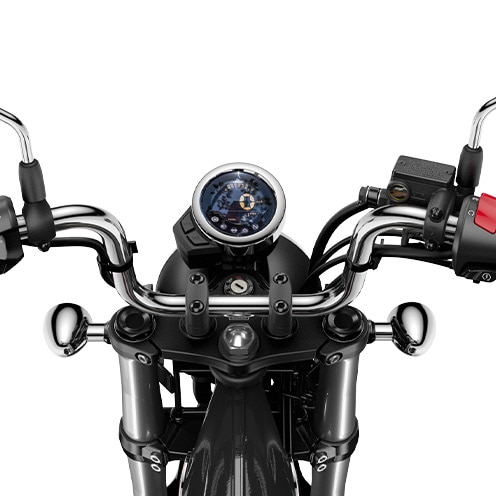

Multi-function digital instruments

The retro-style instrument cluster houses a modern display for the speedometer, odometer, trip meters, fuel gauge, and beam indicator.

Pressed-steel frame

This is where the Dax gets its name. The long, round, and skinny frame of the original machine reminded people of a wiener dog—a dachshund—or Dax for short.
